1973 Yamaha MX360 (MX360) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

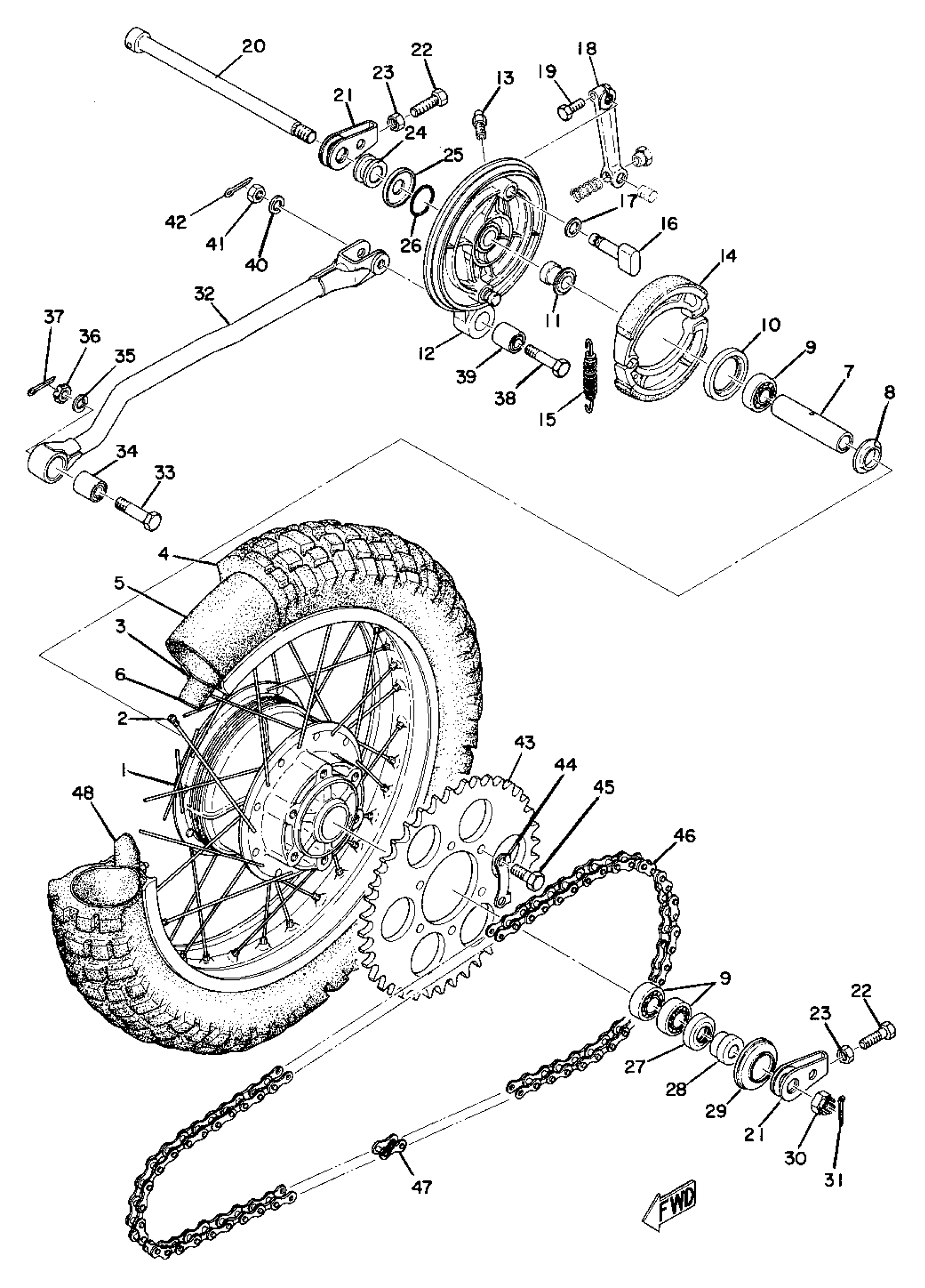

1973 Yamaha MX360 (MX360) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(322-25311-00-00)

1
Out of stock

1

SPOKE SET, INNER 2

(322-25396-90-00)

1
Out of stock

2

SPOKE SET, REAR

322-25304-00-00

1
Out of stock

2

SPOKE SET, OUTER 2

(322-25397-90-00)

1
Out of stock

3

SPOKE SET, INNER 1

(322-25391-90-00)

1
Out of stock

3

RIM 1.85X18

(94418-18061-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(322-25392-90-00)

1
Out of stock

4

400X18 YOKO Y612

(94140-18070-00)

1
Out of stock

5

TUBE (5A8)

94212-18188-00

1

$32.23

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-17311-00

—
Out of stock

8

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

9

1

$31.64

In stock

10

OIL SEAL, SO-TYPE

93104-46029-00

1
Out of stock

11

COLLAR

(90387-17450-00)

1
Out of stock

12

BRAKE SHOE PLT ASSEMBLY

(438-25320-10-00)

1
Out of stock

13

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

14

BRAKE SHOE KIT

3GW-W253A-00-00

—
Out of stock

15

—

$8.09

In stock

16

CAMSHAFT

214-25351-01-00

1
Out of stock

17

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

18

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

20

AXLE,WHEEL

150-25381-01-00

1
Out of stock

21

PULLER,CHAIN 2

12R-25389-00-00

1
Out of stock

22

BOLT

90101-08060-00

—

$4.92

In stock

23

. NUT

95380-08700-00

1

$3.07

In stock

24

COLLAR(3SX)

90387-170X9-00

—
Out of stock

25

COVER, PLATE

275-25327-00-00

1
Out of stock

26

O-RING

93210-31MJ5-00

1

$3.07

In stock

27

OIL SEAL, DD-TYPE (DD-25-40-9)

93106-25003-00

1
Out of stock

28

COLLAR, SHAFT

90387-17140-00

1
Out of stock

29

COVER, DUST

275-25367-00-00

1
Out of stock

30

NUT, CASTLE

90171-16007-00

1
Out of stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

BAR, TENSION

(363-25371-00-00)

1
Out of stock

33

BOLT, WITH HOLE

(90102-08019-00)

1
Out of stock

34

BUSH 1

(363-22123-00-00)

1
Out of stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

NUT, SLOTTED

95307-08900-00

1
Out of stock

37

PIN, COTTER

91490-20025-00

—

$1.31

In stock

38

BOLT, WITH HOLE

(90102-10007-00)

1
Out of stock

39

BUSH 1

(275-22123-00-00)

1
Out of stock

40

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

41

NUT (682)

95380-10700-00

1

$5.78

In stock

42

PIN, COTTER

91490-25020-00

—

$2.94

In stock

43

SPROCKET, DRIVN 51T

322-25451-00-00

1
Out of stock

44

WASHER, LOCK

256-25412-00-00

—

$9.48

In stock

45

BOLT (583)

90101-10303-00

—

$6.25

In stock

46

520 DS 106L

94585-20106-00

1
Out of stock

47

. JOINT CHAIN

94680-11001-00

1
Out of stock

48

SPACER, BEAD

1T2-25394-00-00

—

$41.05

In stock
