1973 Yamaha MX360 (MX360) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

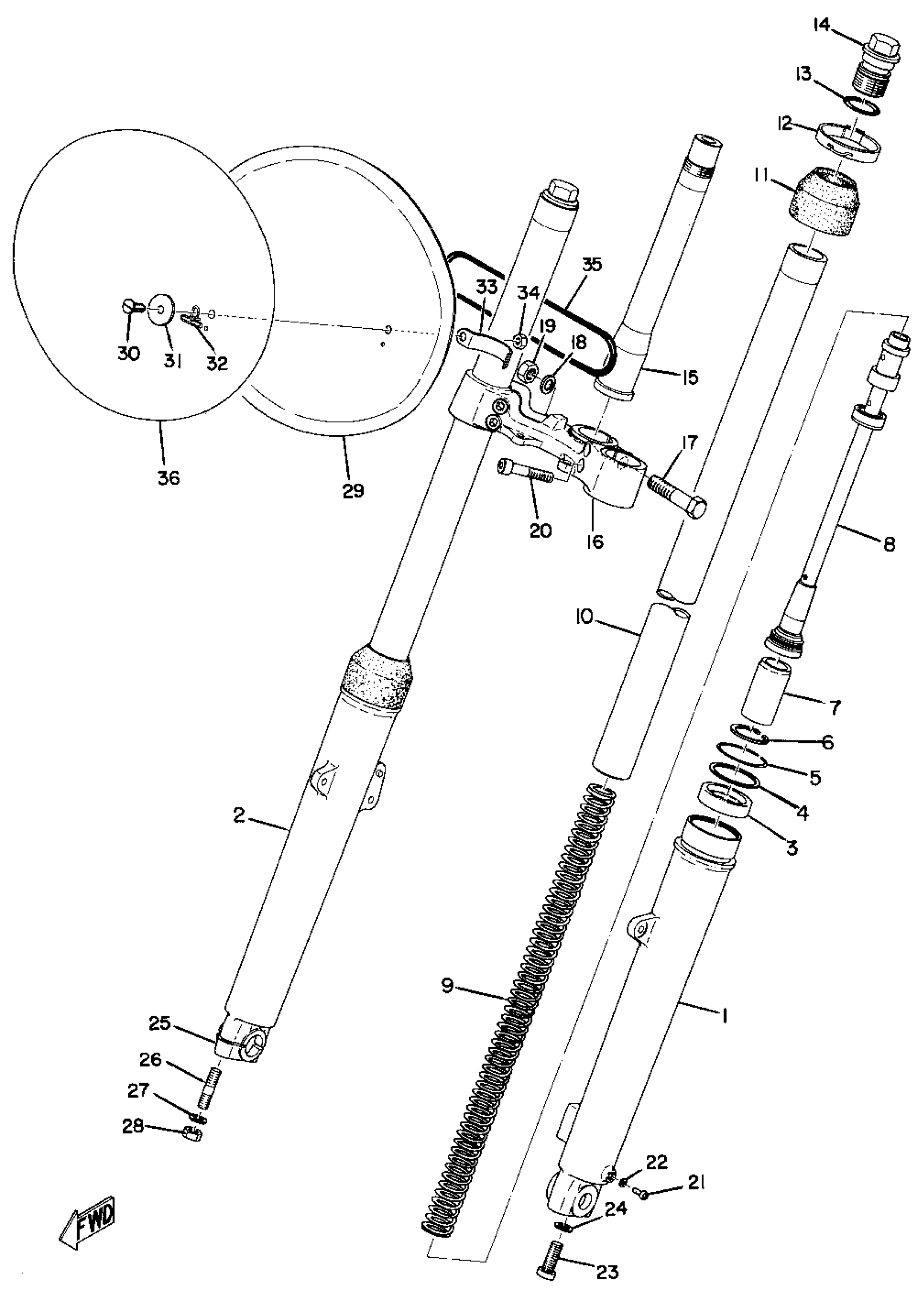

1973 Yamaha MX360 (MX360) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(291-23126-60-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(363-23101-02-00)

1
Out of stock

2

. NO LONGER AVAILABLE

291-23136-60-00

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(322-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(363-23170-00-00)

1
Out of stock

9

SPRING, FRONT FORK

(363-23141-01-00)

1
Out of stock

10

TUBE, INNER 1

(363-23124-00-00)

1
Out of stock

11

. SEAL, DUST

292-23144-00-00

1
Out of stock

12

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

13

. GASKET

214-23114-00-00

1
Out of stock

14

BOLT, CAP

(291-23111-60-00)

1
Out of stock

15

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

16

BRACKET, LOWER

(322-23345-00-33)

1
Out of stock

17

BOLT 2

(322-23356-00-00)

1
Out of stock

18

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

19

NUT

(322-23357-00-00)

1
Out of stock

20

BOLT 1

(322-23346-00-00)

1
Out of stock

21

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

22

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

24

GASKET

509-23158-L0-00

—

$14.34

In stock

25

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

26

BOLT, STUD (278)

90116-08261-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

PLATE, NUMBER

322-23485-00-00

1
Out of stock

30

SCREW, OVAL FLSTR (322-23396-00)

90146-06007-00

1
Out of stock

31

WASHER, PLATE

90201-06086-00

—
Out of stock

32

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

33

STAY, PLATE

(318-23487-00-00)

1
Out of stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

O-RING (802)

93210-99103-00

—
Out of stock

36

EMBLEM

322-23395-00-00

1
Out of stock
