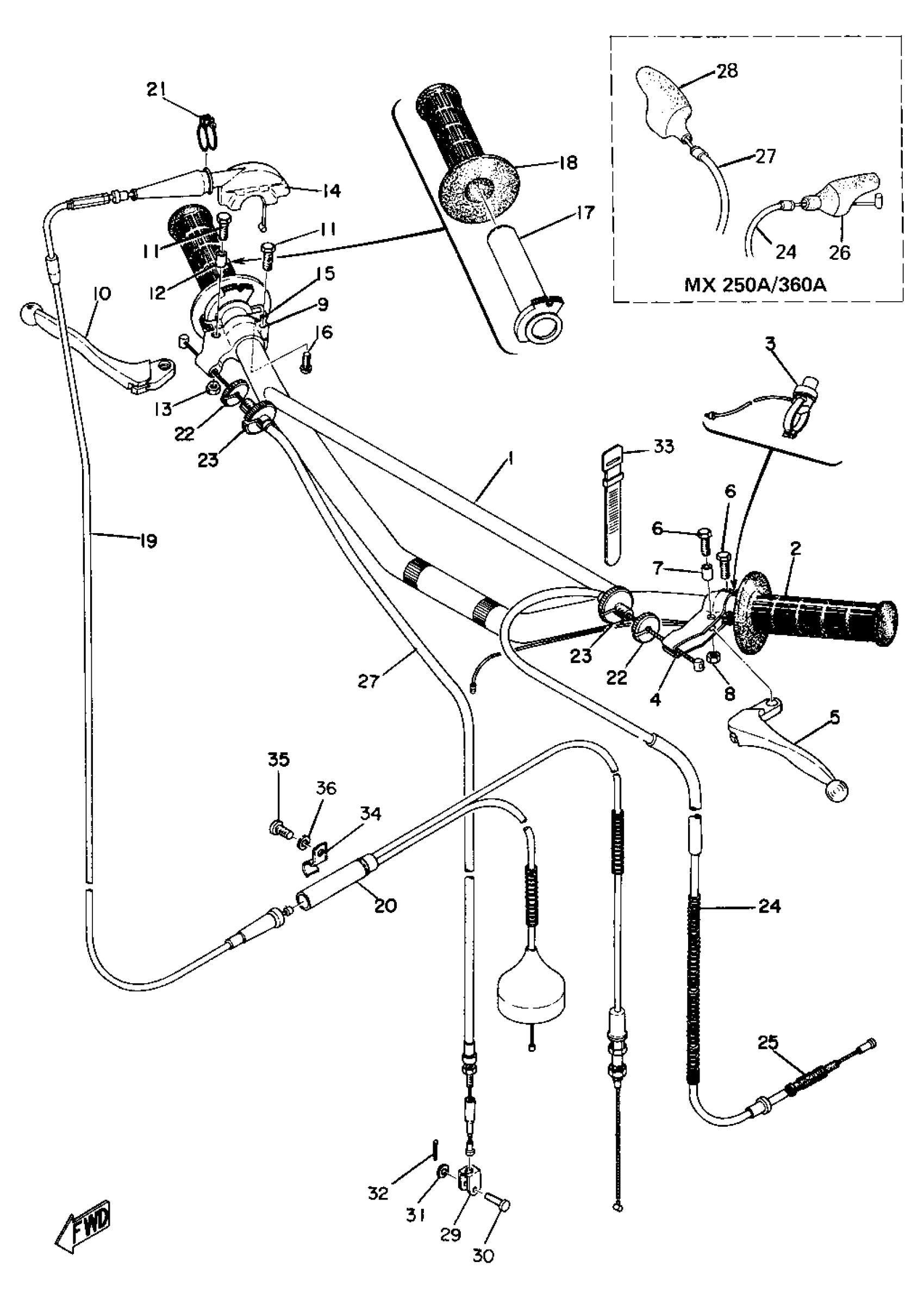

Yamaha MX360 (MX360) 1973 HANDLE - WIRE Diagram

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

HANDLEBAR

(483-26111-00-00)

Unavailable

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

LEVER HOLDER ASSEMBLY 2

(233-82920-03-00)

Unavailable

SWITCH, HANDLE 1

(363-83976-01-00)

Unavailable

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

LEVER(L.H)

214-83912-00-00

$23.99

BOLT(3DM)

97024-06020-00

$8.49

COLLAR, LEVER

214-83913-00-00

$7.99

NUT, HEXAGON

95380-06600-00

Unavailable

HOLDER, LEVER (R.H)

233-82921-31-00

$68.99

LEVER(R.H)

233-83922-30-00

$22.99

BOLT(3DM)

97024-06020-00

$8.49

COLLAR, LEVER

214-83913-00-00

$7.99

NUT, HEXAGON

95380-06600-00

Unavailable

CAP, GRIP UPPER

322-26281-00-98

Unavailable

CAP, GRIP UNDER

322-26282-00-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

TUBE, THROTTLE GUIDE

22W-26243-00-00

Unavailable

GRIP (R.H)

583-26242-00-00

Unavailable

CABLE, THROTTLE 1

363-26311-00-00

Unavailable

CABLE, THROTTLE 2

363-26312-00-00

Unavailable

CABLE, THROTTLE 2

364-26312-00-00

Unavailable

CLAMP, HOSE

90460-12268-00

Unavailable

NUT

90179-08030-00

Unavailable

BOLT

90123-08002-00

Unavailable

WIRE, CLUTCH

363-26335-03-00

Unavailable

BOOT, CABLE

(363-26342-00-00)

Unavailable

COVER, LEVER

498-26372-00-00

Unavailable

CABLE, BRAKE

427-26341-00-00

Unavailable

COVER, LEVER

498-26372-00-00

Unavailable

JOINT, WIRE

156-26347-00-00

Unavailable

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

HOLDER

363-26393-00-00

Unavailable

SCREW PAN HEAD

98580-06010-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable
