1973 Yamaha MX360 (MX360) Electrical Diagram

← All diagrams

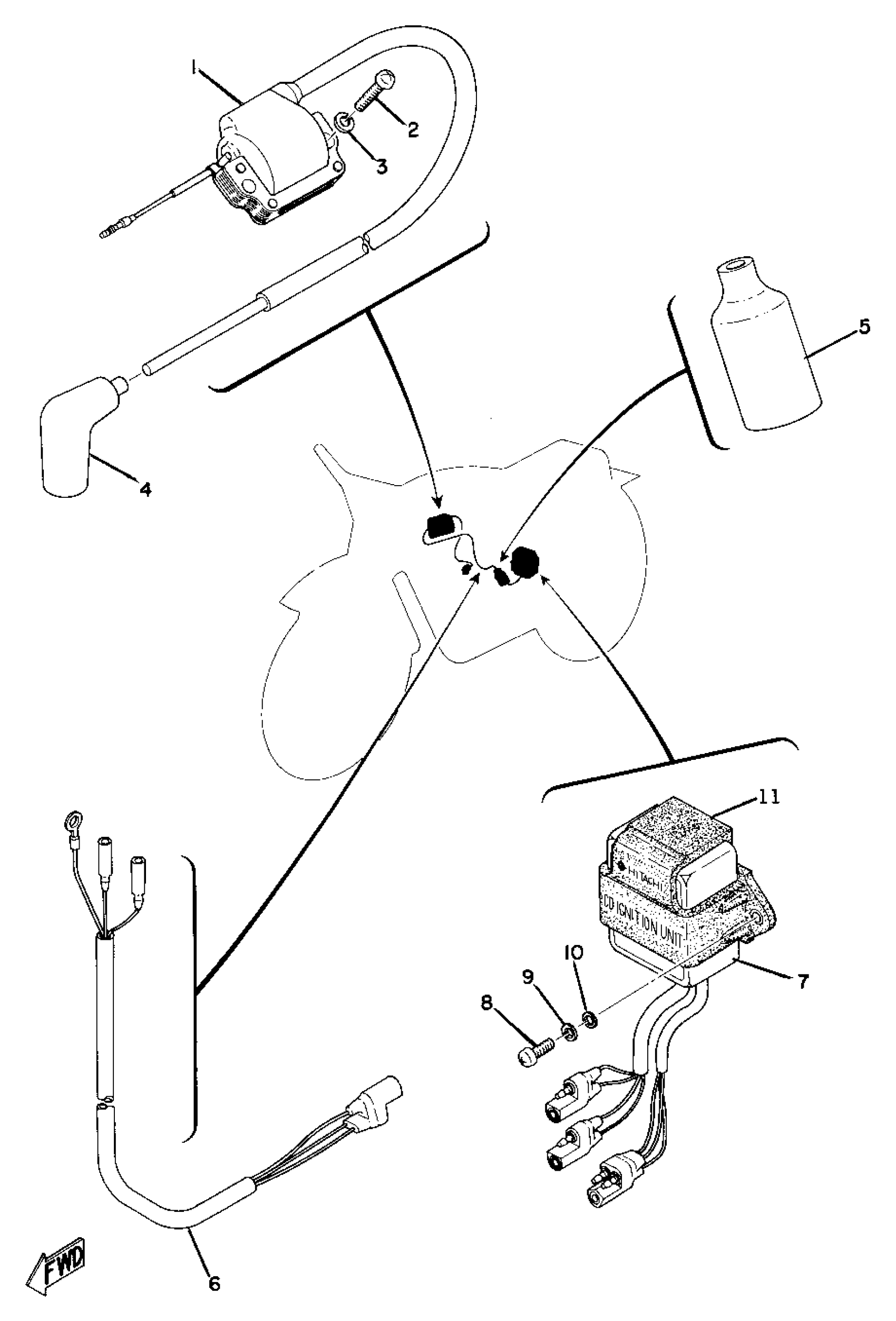

Find the part on the Electrical diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha MX360 (MX360) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

363-82310-10-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

5

COVER, CONNECTER

(256-82599-00-00)

1
Out of stock

6

WIRE, SUB LEAD

(363-85517-00-00)

1
Out of stock

7

CDI UNIT ASSEMBLY

364-85540-13-00

1
Out of stock

8

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

8

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLATE

90201-06M08-00

1
Out of stock

11

BAND

363-85546-00-00

1
Out of stock
