1973 Yamaha MX360 (MX360) C-D-I Magneto Diagram

← All diagrams

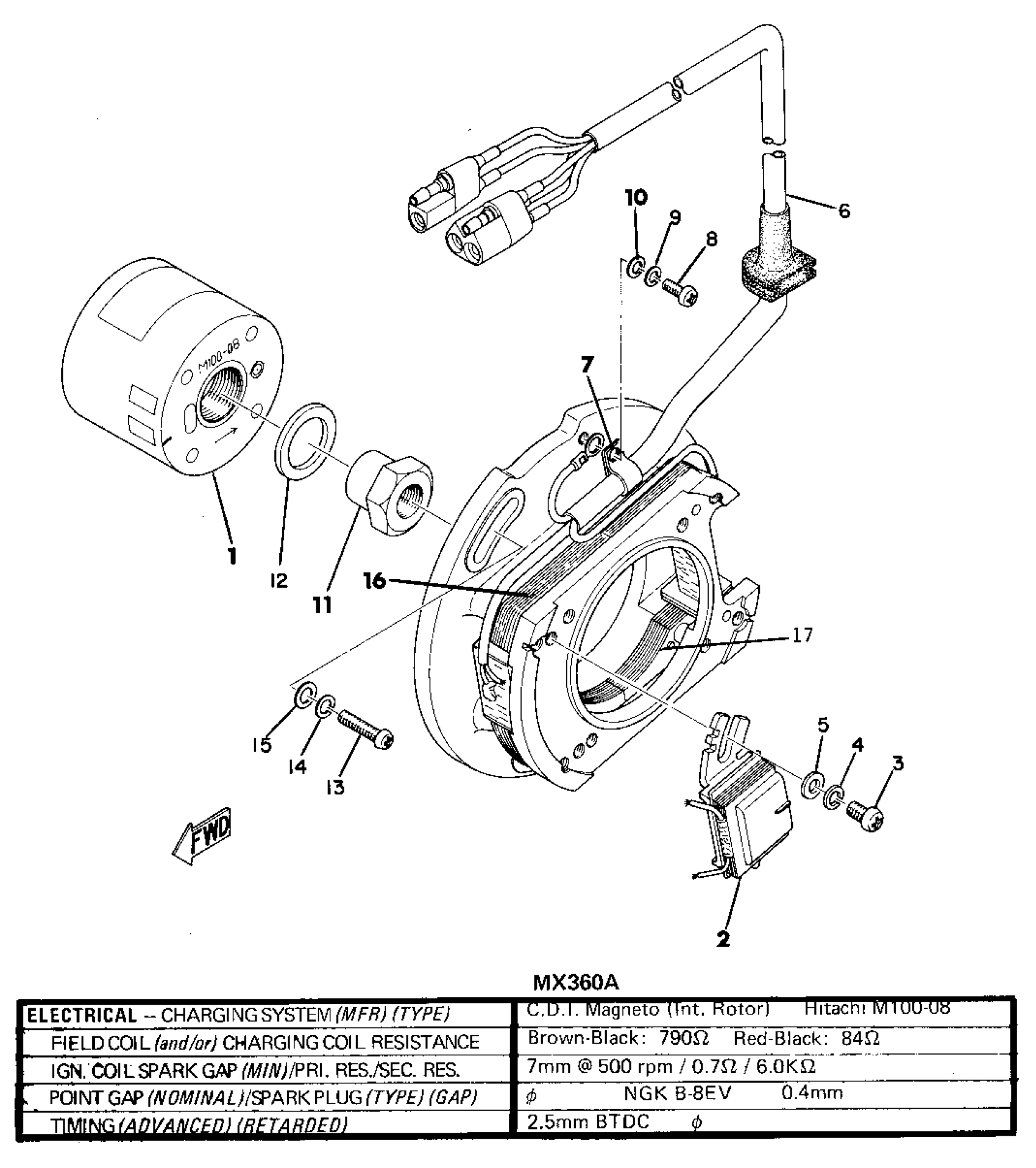

Find the part on the C-D-I Magneto diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha MX360 (MX360) C-D-I Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(364-85500-11-00)

1
Out of stock

1

CDI UNIT ASSEMBLY

364-85540-13-00

1
Out of stock

1

ROTOR ASSEMBLY

(364-85550-10-00)

1
Out of stock

2

STATOR ASSEMBLY

(364-85510-10-00)

1
Out of stock

2

. COIL PULSER

364-85543-10-00

1
Out of stock

3

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

6

LEAD WIRE ASSEMBLY

(364-85515-10-00)

1
Out of stock

7

. CLAMP

109-81328-11-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

. NUT, ROTOR

322-85553-10-00

1
Out of stock

12

. WASHER, ROTOR

322-85554-10-00

1
Out of stock

13

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

16

COIL, CHARGE 1

(322-85566-10-00)

1
Out of stock

17

COIL, CHARGE 2

(322-85567-10-00)

1
Out of stock
