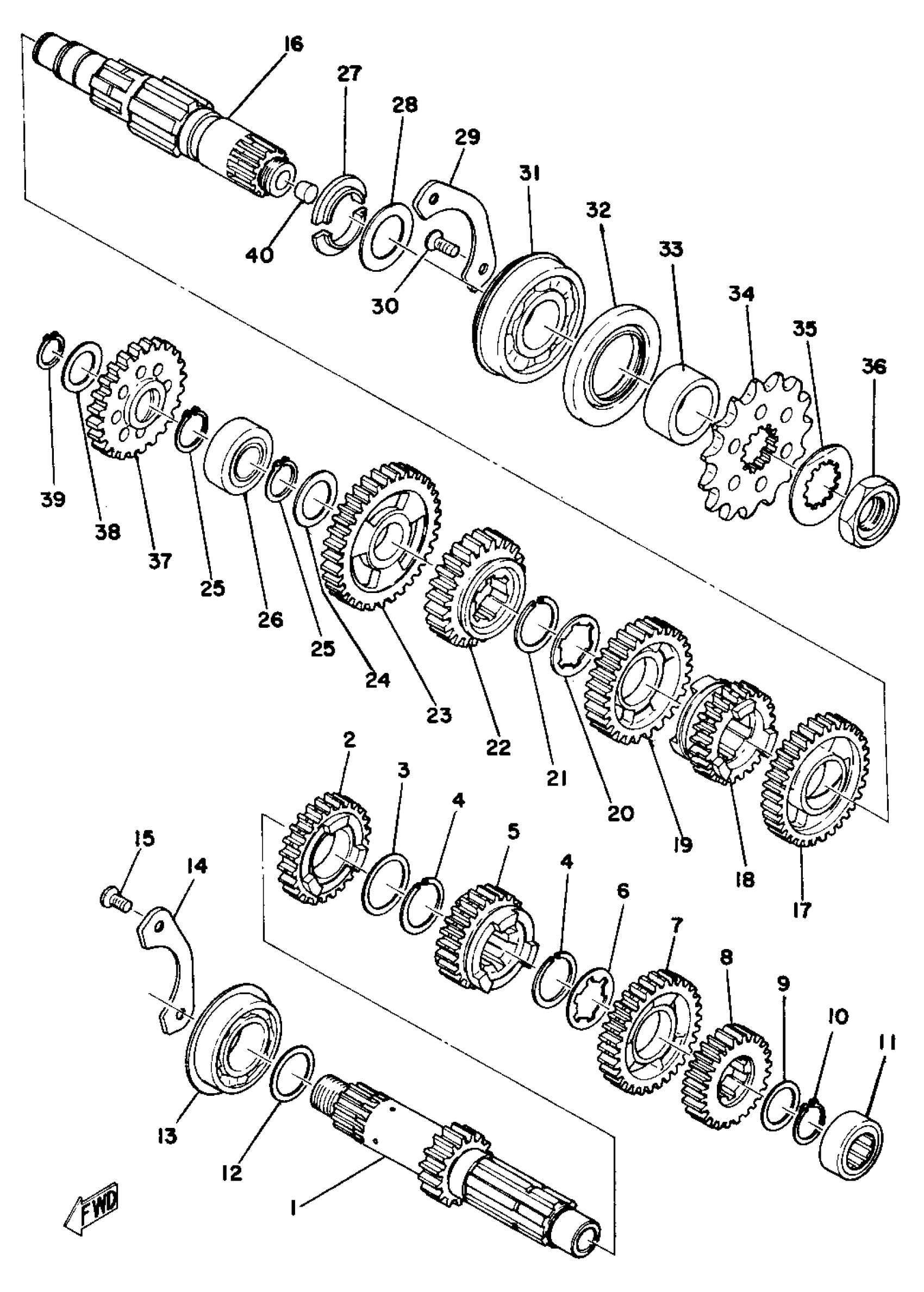

Yamaha MX250B (MX250) 1975 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(509-17411-00-00)

Unavailable

2

GEAR, 4TH PINION (26T)

509-17141-00-00

Unavailable

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(509-17131-00-00)

Unavailable

6

WASHER 434172160000

90209-22082-00

Unavailable

7

GEAR, 5TH PINION

(509-17151-00-00)

Unavailable

8

GEAR, 2ND PINION

(509-17121-00-00)

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

CIRCLIP(1EY)

99009-19400-00

$8.49

11

BEARING

93311-42077-00

$55.99

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

BEARING (93306-20515)

93306-20535-00

Unavailable

14

PLATE, BRNG COVER

(363-15383-00-00)

Unavailable

15

SCREW, FLAT

98707-06014-00

Unavailable

16

NO LONGER AVAILABLE

498-17421-01-00

Unavailable

17

GEAR, 2ND WHEEL (31T)

509-17221-00-00

Unavailable

18

GEAR, 5TH WHEEL (24T)

509-17251-00-00

Unavailable

19

GEAR, 3RD WHEEL

(509-17231-00-00)

Unavailable

20

WASHER 434172160000

90209-22082-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

$5.60

22

GEAR, 4TH WHEEL

(365-17241-10-00)

Unavailable

23

GEAR, 1ST WHEEL

(509-17211-00-00)

Unavailable

24

WASHER PLATE 168171160000

90201-20278-00

Unavailable

25

CIRCLIP(1EY)

99009-19400-00

$8.49

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

Unavailable

27

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

PLATE, BRNG COVER

509-15381-00-00

Unavailable

30

SCREW, FLAT

98707-06014-00

Unavailable

31

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

Unavailable

32

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

33

COLLAR

(90387-25193-00)

Unavailable

34

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

34

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

34

SPROCKET, DRIVE

4DN-17460-00-00

Unavailable

35

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

36

NUT 152174630000

90179-18020-00

Unavailable

37

GEAR, KICK IDLE

(498-15651-02-00)

Unavailable

38

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

39

CIRCLIP(1EY)

99009-17400-00

Unavailable

40

PLUG, TAPER

(90336-11025-00)

Unavailable
