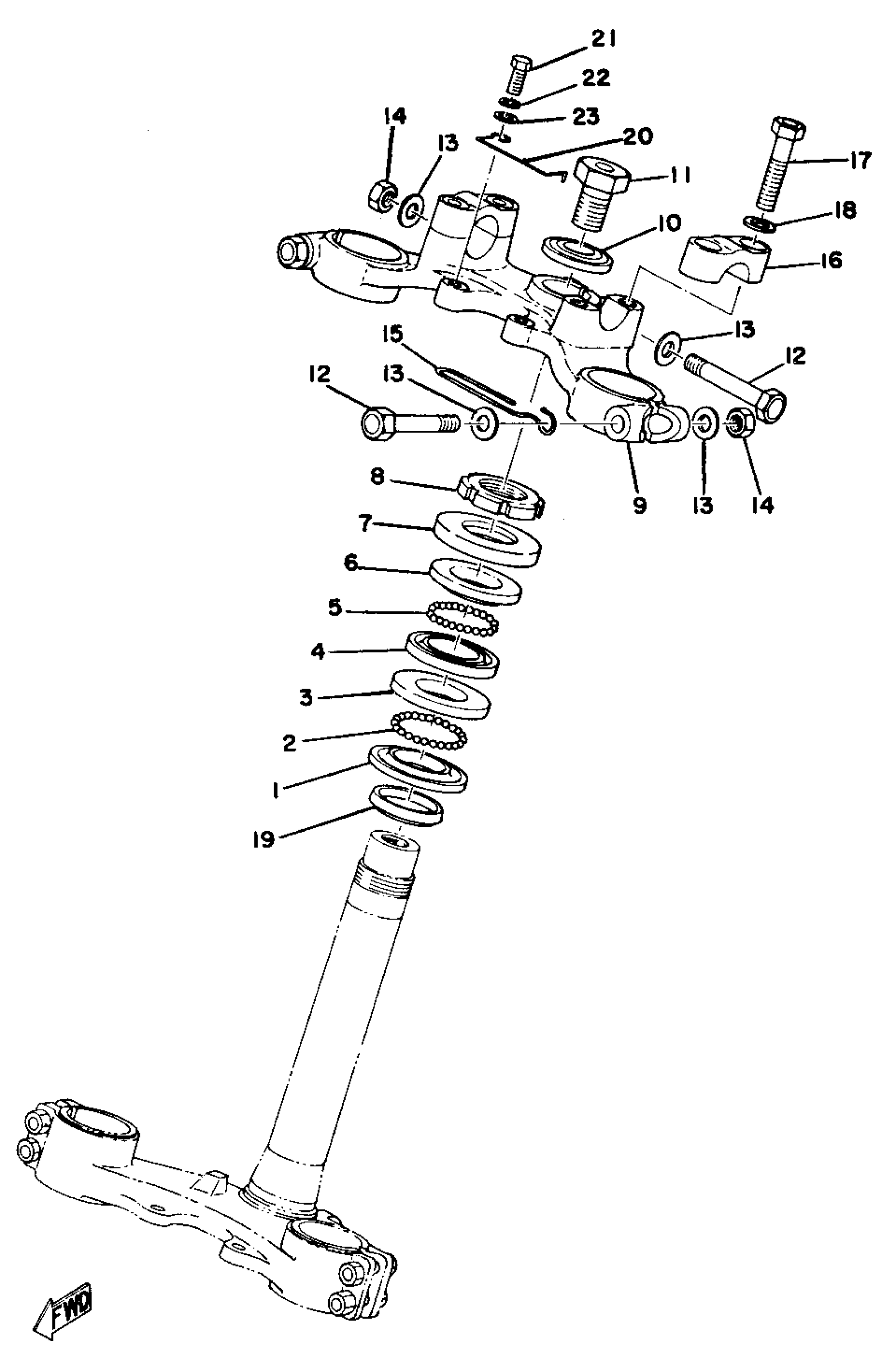

Yamaha MX250B (MX250) 1975 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

COVER, BALL RACE

122-23416-00-00

$7.99

8

NUT

90179-25004-00

$24.99

9

CROWN, HANDLE

(321-23435-01-98)

Unavailable

10

WASHER, SPECIAL SHAPE

90209-14022-00

Unavailable

11

BOLT (322-23451-00)

90109-14235-00

Unavailable

12

BOLT, HEXAGON

97013-08055-00

$2.55

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

NUT, U

95617-08100-00

$9.49

15

CLIP

90468-20055-00

Unavailable

16

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

SEAL, DUST

164-23462-00-00

Unavailable

20

HOLDER, CABLE 1

(483-23318-00-00)

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable
