1975 Yamaha MX250 (MX250B) Intake Diagram

← All diagrams

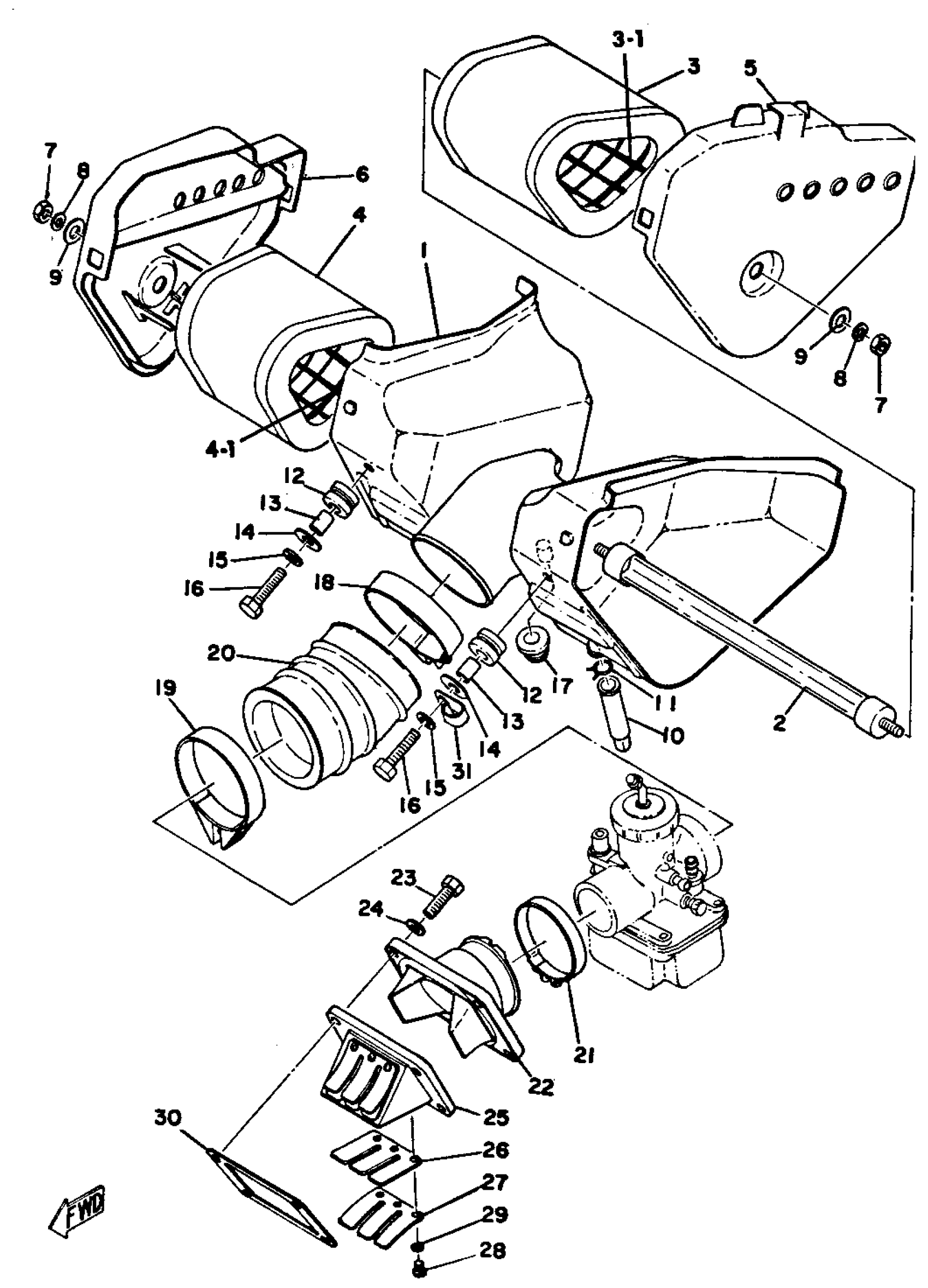

Find the part on the Intake diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX250 (MX250B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(509-14411-01-00)

1
Out of stock

2

BOLT

(509-14428-00-00)

1
Out of stock

3

ELEMENT, AIR CLNR

509-14451-09-00

1
Out of stock

4

ELEMENT, AIR CLNR 2 (509-14412-02)

509-14461-09-00

1
Out of stock

5

CAP, CLEANER CASE 1

(509-14412-02-00)

1
Out of stock

6

CAP, CLEANER CASE 2

509-14422-01-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

10

SEAL (509-14457-01)

509-14457-00-00

1
Out of stock

11

CLIP (806-24358-00)

90467-15012-00

1
Out of stock

12

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

13

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

14

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

GROMMET (509)

90480-18171-00

—

$6.55

In stock

18

CLAMP, HOSE

(90460-66067-00)

1
Out of stock

19

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

20

JOINT, AIR CLNR 1

(509-14453-01-00)

1
Out of stock

21

CLAMP HOSE 304144550000

90460-51059-00

—

$14.64

In stock

22

MANIFOLD, INTAKE

510-13555-02-00

1
Out of stock

23

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

REED VALVE ASSEMBLY

(431-13610-01-00)

1
Out of stock

26

. REED, VALVE

363-13613-00-00

1
Out of stock

27

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

28

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

29

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

30

GASKET, MANIFOLD

8Y7-13556-01-00

—

$6.92

In stock

31

CLAMP

(90465-06062-00)

1
Out of stock
