1975 Yamaha MX250 (MX250B) Clutch Diagram

← All diagrams

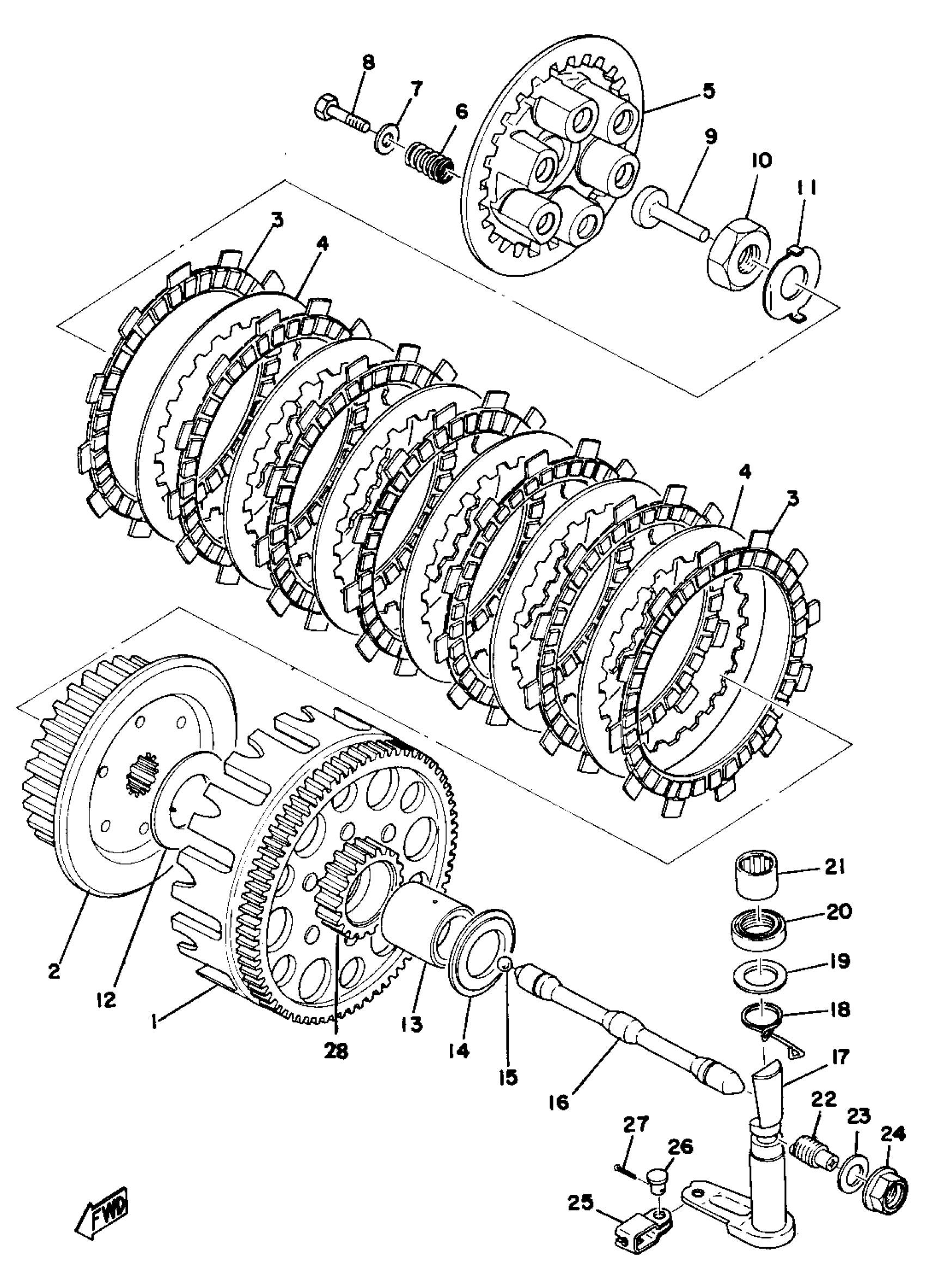

Find the part on the Clutch diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX250 (MX250B) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(509-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(509-16301-01-00)

1
Out of stock

2

. BOSS, CLUTCH

509-16371-01-00

1
Out of stock

3

PLATE, FRICTION

363-16321-09-00

1
Out of stock

4

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

5

. NO LONGER AVAILABLE

509-16351-00-00

1
Out of stock

6

SPRING COMPRESSION168163330000

90501-23138-00

—
Out of stock

7

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

ROD, PUSH

174-16356-00-00

1
Out of stock

10

NUT

90170-18089-00

1
Out of stock

11

WASHER, LOCK

(90215-18114-00)

1
Out of stock

12

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

13

SPACER 1

(214-16181-00-00)

1
Out of stock

14

PLATE, THRUST

360-16154-00-00

1
Out of stock

15

BALL (498)

93511-32027-00

—

$4.70

In stock

16

ROD, PUSH 1

(510-16356-00-00)

1
Out of stock

17

AXLE, PUSH LEVER

510-16382-00-00

1
Out of stock

18

SPRING, TORSION

(90508-12131-00)

1
Out of stock

19

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

20

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

21

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

—
Out of stock

22

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

23

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

24

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

25

JOINT

214-16389-00-00

—
Out of stock

26

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

27

. PIN, COTTER

91401-10015-00

1
Out of stock

28

GEAR, KICK PINION

(509-15631-00-00)

1
Out of stock
