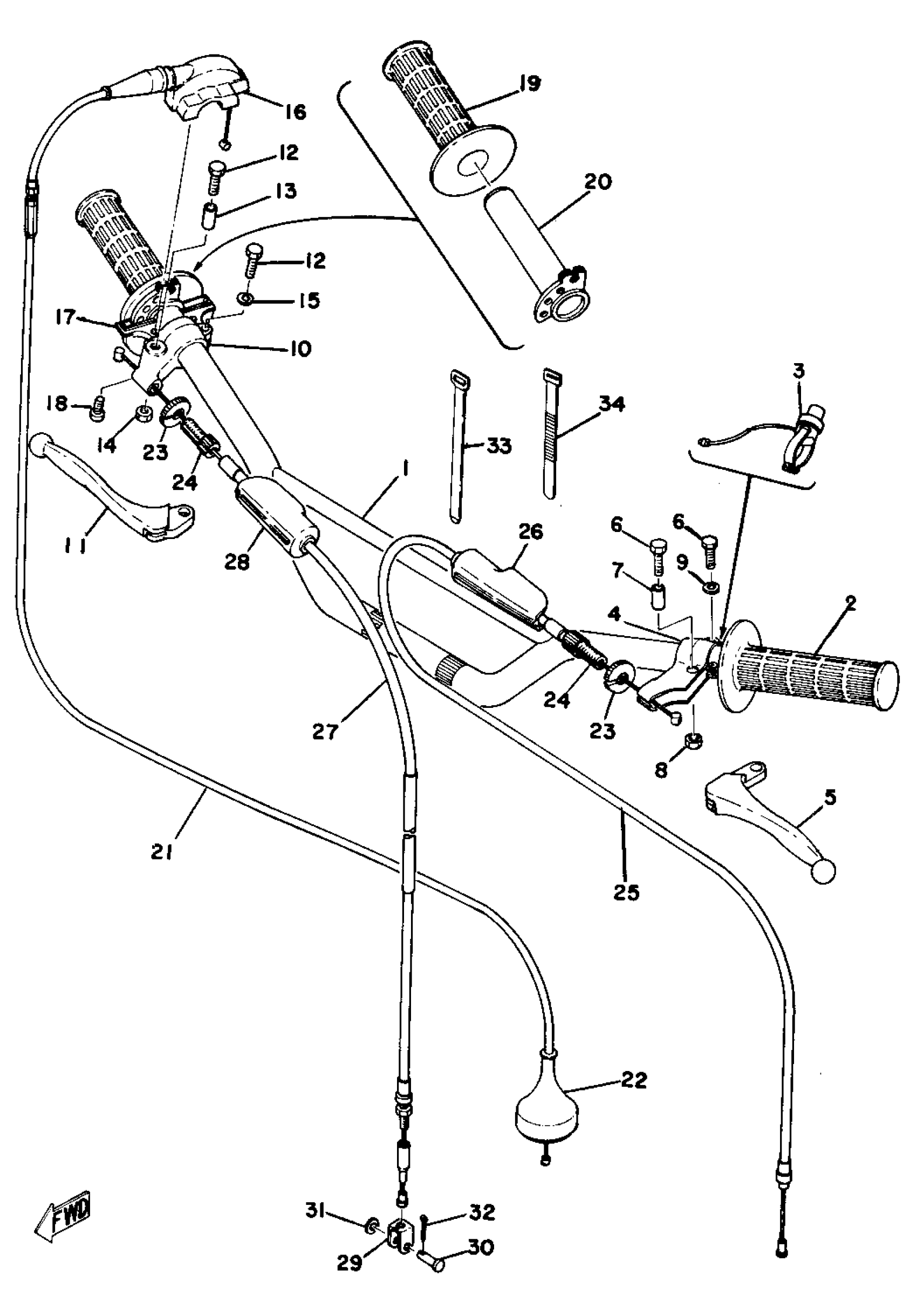

Yamaha MX250B (MX250) 1975 HANDLE-WIRE Diagram

#

Description
Price

1

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

1

HANDLEBAR

(483-26111-00-00)

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

2

LEVER HOLDER ASSEMBLY 2

(233-82920-03-00)

Unavailable

3

SWITCH, HANDLE 1

(363-83976-01-00)

Unavailable

4

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

5

LEVER(L.H)

214-83912-00-00

$23.99

6

BOLT(7U8)

97080-06020-00

Unavailable

7

COLLAR, LEVER

214-83913-00-00

$7.99

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

HOLDER, LEVER (R.H)

233-82921-31-00

$68.99

11

LEVER(R.H)

233-83922-30-00

$22.99

12

BOLT(7U8)

97080-06020-00

Unavailable

13

COLLAR, LEVER

214-83913-00-00

$7.99

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

CAP, GRIP UPPER (431-26281-01)

431-26281-01-98

Unavailable

17

CAP, GRIP UNDER

431-26282-03-00

Unavailable

18

SCREW, PAN HEAD

98580-05020-00

Unavailable

19

GRIP (R.H)

583-26242-00-00

Unavailable

20

TUBE, THRTL GUIDE

431-26243-00-00

Unavailable

21

CABLE, THROTTLE 1 (1363MM)

510-26311-00-00

Unavailable

22

CAP, RUBBER

510-26329-01-00

Unavailable

23

NUT

90179-08030-00

Unavailable

24

BOLT

90123-08002-00

Unavailable

25

WIRE, CLUTCH

363-26335-03-00

Unavailable

26

COVER, LEVER

498-26372-00-00

Unavailable

27

CABLE, BRAKE

1G8-26341-00-00

Unavailable

28

COVER, LEVER

498-26372-00-00

Unavailable

29

JOINT, WIRE

156-26347-00-00

Unavailable

30

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

31

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

32

PIN, COTTER

91490-20025-00

Unavailable

33

BAND

341-26397-01-00

Unavailable

34

BAND, SWITCH CORD

437-83936-01-00

Unavailable
