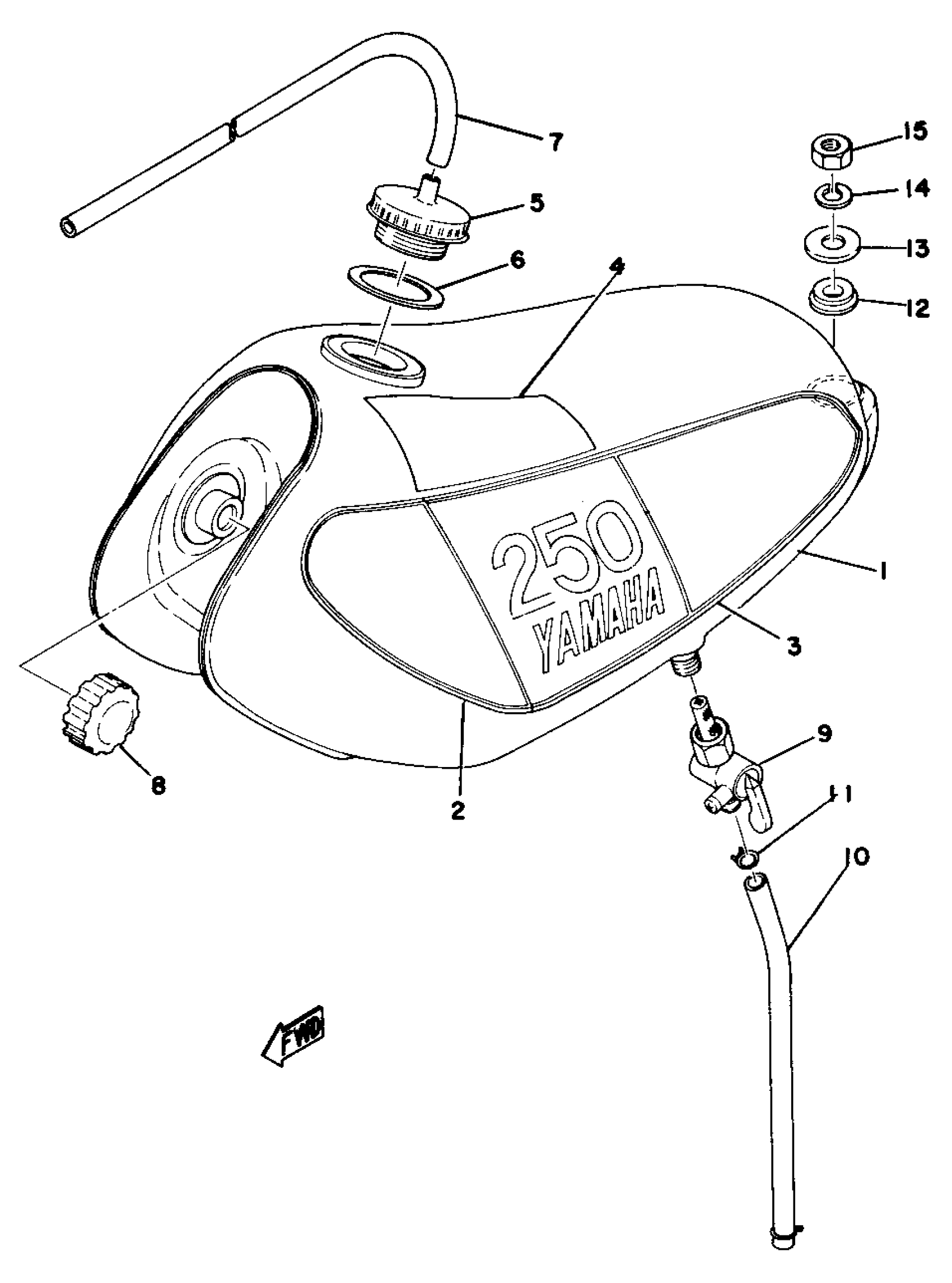

Yamaha MX250B (MX250) 1975 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(509-24110-01-01)

Unavailable

2

GRAPHIC, FUEL TNK 1

(509-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 4

(509-24247-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(509-24245-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 5

(509-24248-00-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(509-24246-00-00)

Unavailable

4

GRAPHIC, FUEL TNK 6

(509-24249-00-00)

Unavailable

5

BODY, CAP

322-24611-02-00

$57.99

5

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

6

GASKET (322-24612-00)

90430-37052-00

Unavailable

7

HOSE (L1500)

90445-090F6-00

$31.99

8

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

9

FUEL COCK ASSY

322-24500-02-00

$92.99

10

HOSE

90445-11149-00

Unavailable

10

HOSE

90445-11491-00

Unavailable

11

CLIP

90467-100A1-00

Unavailable

12

GROMMET

(90480-25189-00)

Unavailable

13

WASHER, SPECIAL SHAPE

(90209-10101-00)

Unavailable

14

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

15

NUT (682)

95380-10700-00

Unavailable
