1975 Yamaha MX250 (MX250B) Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

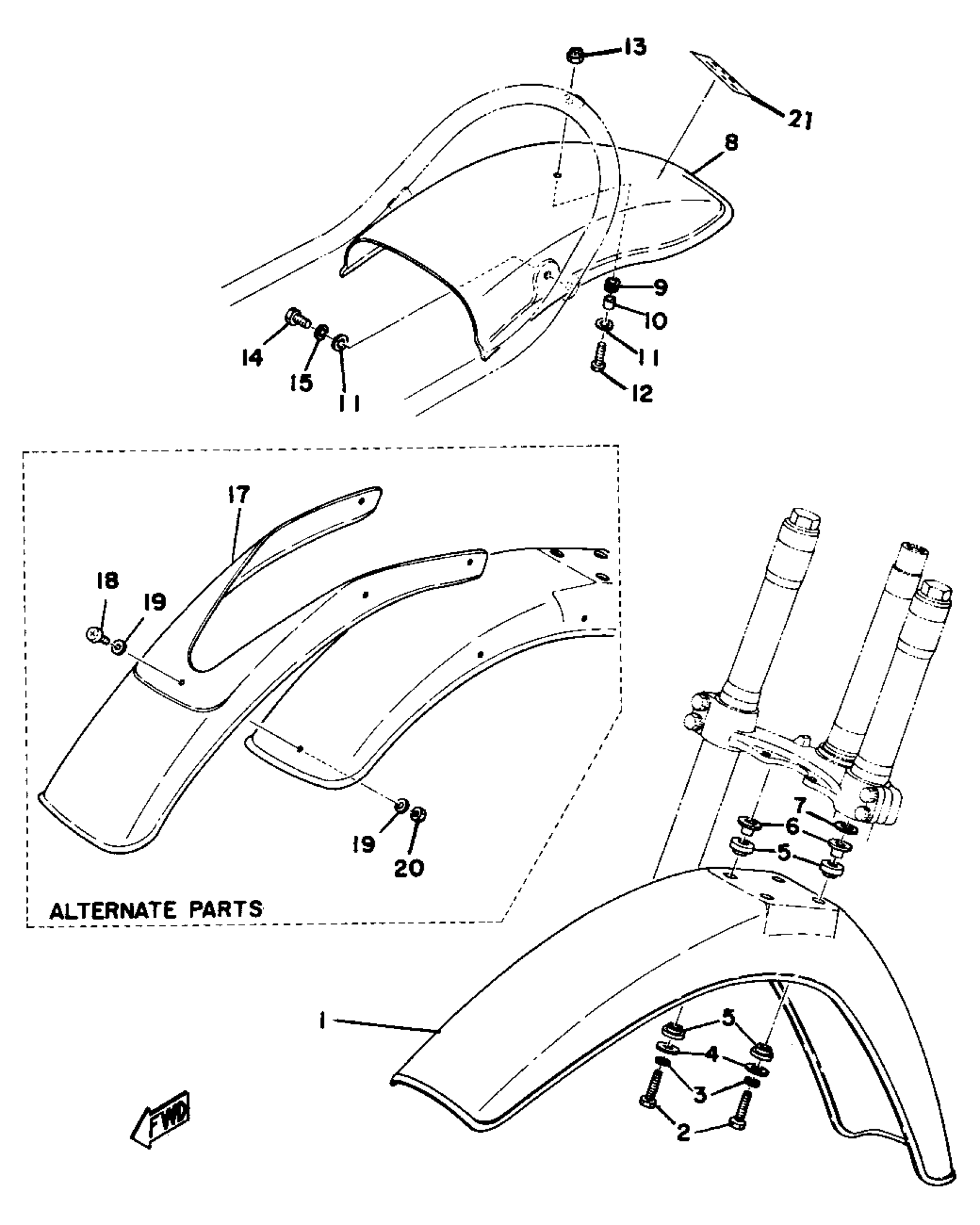

1975 Yamaha MX250 (MX250B) Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

453-21511-01-00

1
Out of stock

2

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

5

DAMPER, FENDER

322-21541-00-00

1

$6.72

In stock

6

COLLAR

90387-06158-00

1

$6.17

In stock

7

SPACER

(90560-06151-00)

1
Out of stock

8

FENDER, REAR

483-21611-00-00

1
Out of stock

9

GROMMET (431)

90480-14052-00

1

$4.40

In stock

10

COLLAR (3H5)

90387-060A3-00

1

$7.22

In stock

11

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

OVER, FENDER

(483-21551-01-00)

1
Out of stock

18

SCREW, BIND (682)

98980-04012-00

—

$2.68

In stock

19

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

20

NUT(6TA)

95307-04600-00

—

$6.69

In stock

21

LABEL, SAFETY

288-21659-00-00

1
Out of stock
