1975 Yamaha MX250 (MX250B) Frame-Side Cover Diagram

← All diagrams

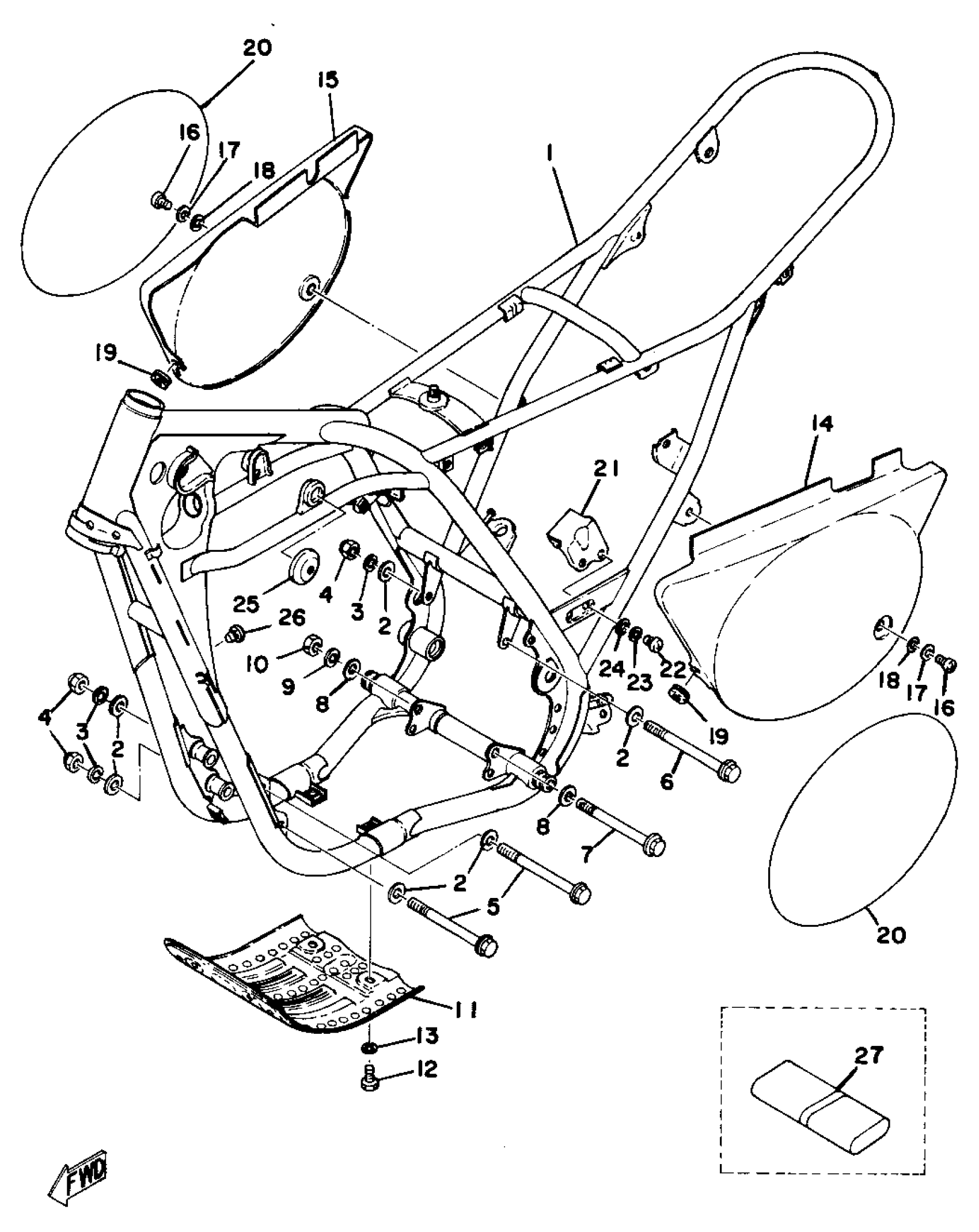

Find the part on the Frame-Side Cover diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX250 (MX250B) Frame-Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(509-21110-05-33)

1
Out of stock

2

WASHER (401)

90209-08050-00

1

$7.75

In stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

5

BOLT, HEXAGON (582)

90101-08286-00

1
Out of stock

6

BOLT, HEXAGON (582)

90101-08286-00

1
Out of stock

7

—

$11.26

In stock

8

WASHER, PLATE 3711117500

90201-10124-00

1

$6.58

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

1

$6.02

In stock

11

PROTECTOR, ENGINE

1M1-21471-00-90

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

COVER, SIDE 1

(509-21711-01-00)

1
Out of stock

15

COVER, SIDE 2

(509-21721-01-00)

1
Out of stock

16

SCREW(3JM)

90149-06306-00

—

$2.80

In stock

17

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

18

WASHER, PLATE

(90202-07048-00)

1
Out of stock

19

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

20

EMBLEM 7

(322-21787-00-00)

1
Out of stock

21

PORTECTOR, CHAIN

(509-22147-00-33)

1
Out of stock

22

BOLT (661)

97013-06012-00

1

$4.71

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

25

DAMPER, LOCATING 1

(483-24181-01-00)

1
Out of stock

26

DAMPER, MUFFLER

(509-14747-00-00)

1
Out of stock

27

TOOL KIT

(509-28100-10-00)

1
Out of stock
