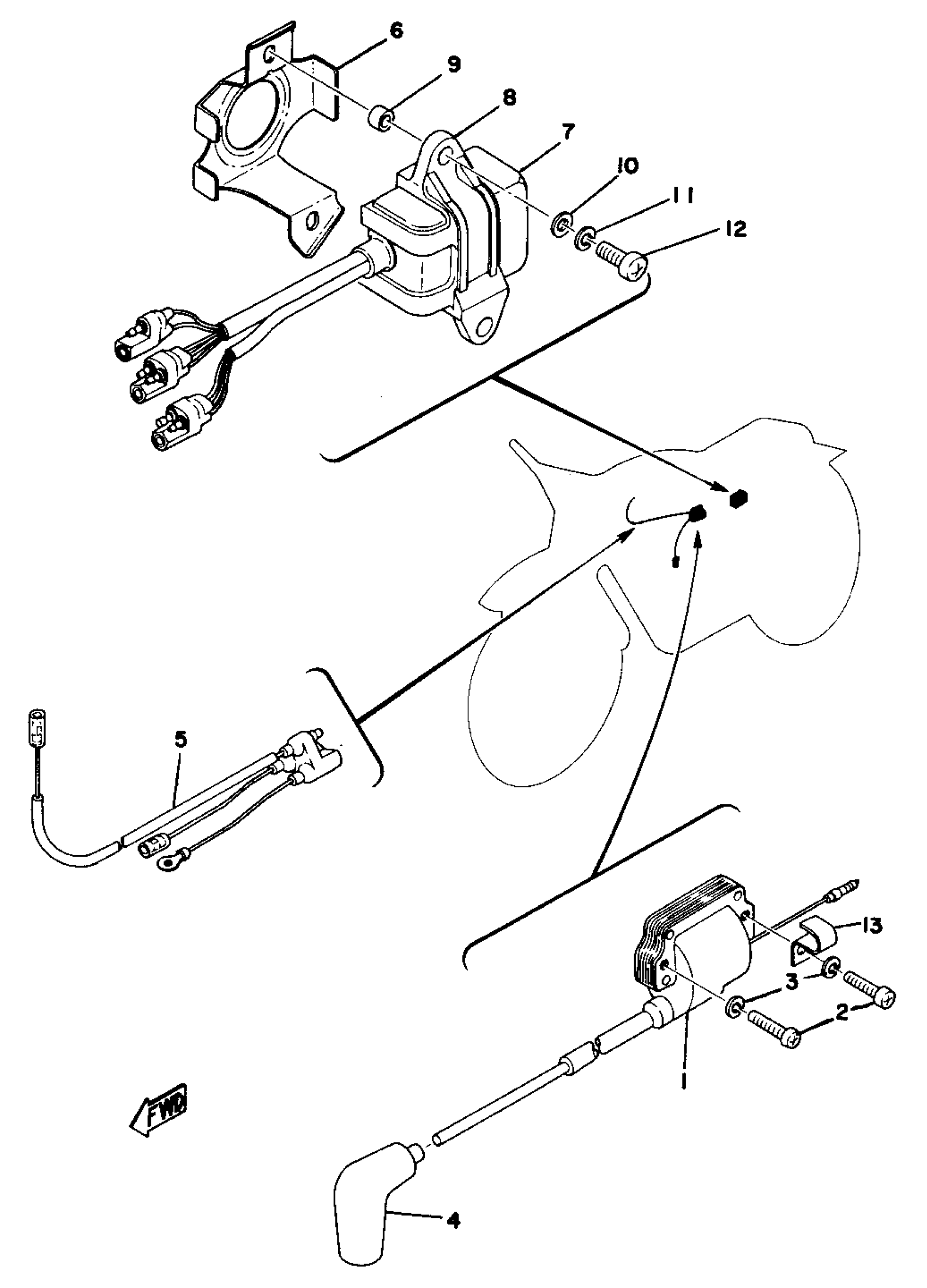

Yamaha MX250B (MX250) 1975 ELECTRICAL Diagram

#

Description

Price

1

IGNITION COIL ASSEMBLY

322-82310-10-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

5

WIRE, SUB LEAD

(509-85517-01-00)

Unavailable

6

BRACKET

(509-85542-00-00)

Unavailable

7

CDI UNIT ASSEMBLY

364-85540-13-00

Unavailable

8

BAND

(509-85546-00-00)

Unavailable

9

COLLAR(8R4)

90387-062N2-00

$9.49

10

WASHER, PLATE

90201-06M08-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

CLAMP 363154850100

90462-05005-00

Unavailable
