1981 Yamaha MX175 (MX175H) Kick Starter Diagram

← All diagrams

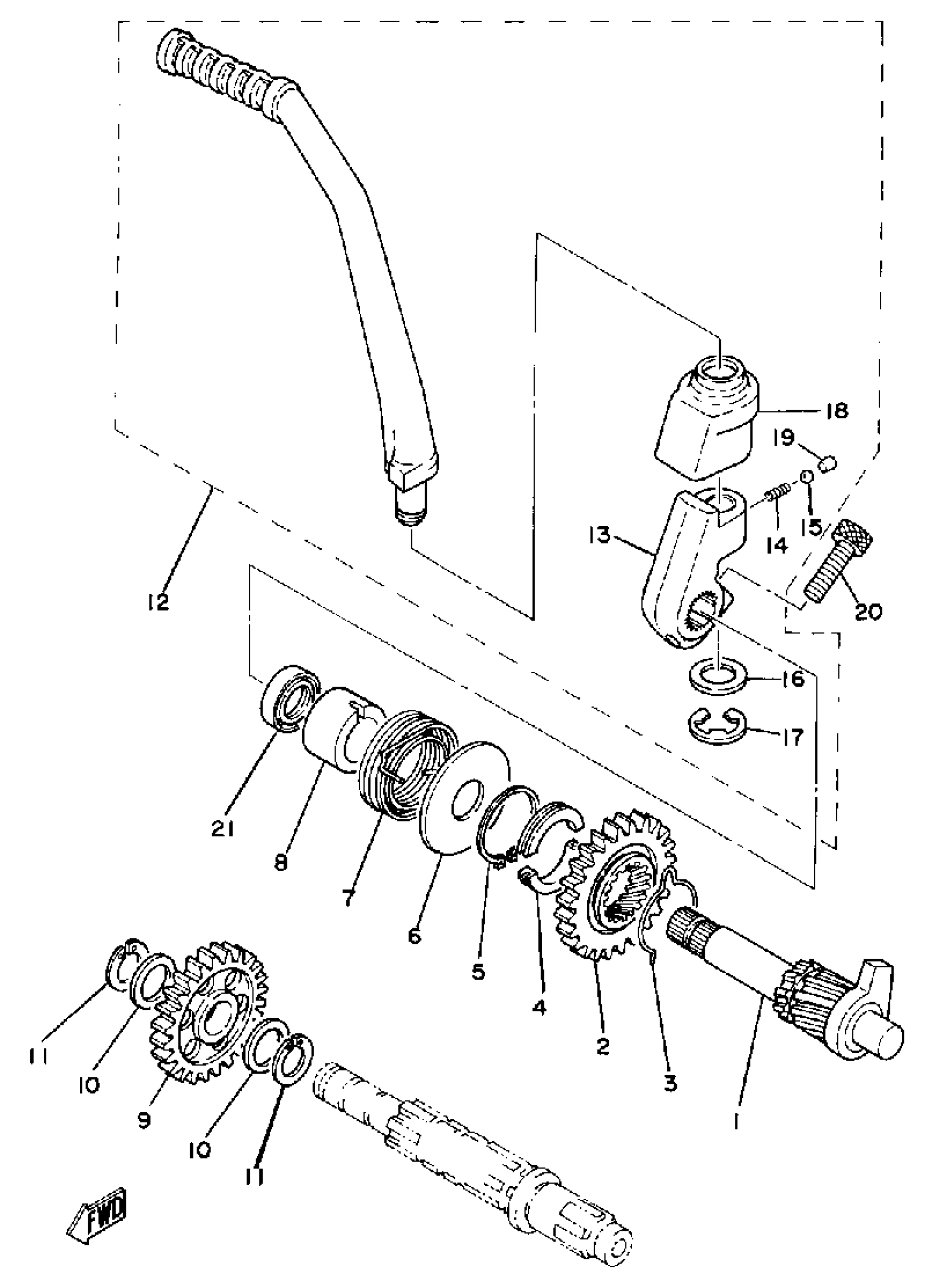

Find the part on the Kick Starter diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

2A6-15660-01-00

1
Out of stock

2

GEAR, KICK

1W1-15641-00-00

—
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

5

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

6

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

7

SPRING, TORSION (1W1)

90508-26346-00

—

$16.45

In stock

8

SPACER, KICK AXLE SPRING

1W1-15666-00-00

1

$15.17

In stock

9

GEAR, KICK IDLE

525-15651-00-00

1

$40.08

In stock

10

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

1

$4.12

In stock

11

CIRCLIP

93440-15012-00

1
Out of stock

12

KICK CRANK ASSEMBLY (1W1-15611-02-33)

1W1-15620-01-00

1
Out of stock

13

BOSS, KICK CRANK

1W1-15621-01-00

—

$92.40

In stock

14

SPRING, COMPRESSION (1W1)

90501-10459-00

1
Out of stock

15

BALL

93503-16003-00

1

$2.14

In stock

16

WASHER, PLATE (525)

90201-12541-00

—
Out of stock

17

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock

18

COVER, KICK CRANK BOSS

1W1-15618-01-00

—

$34.11

In stock

19

PLUG, TAPER

90336-06030-00

1
Out of stock

20

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

21

OIL SEAL (17X25X4-401)

93101-17062-00

—

$12.58

In stock
