1981 Yamaha MX175 (MX175H) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

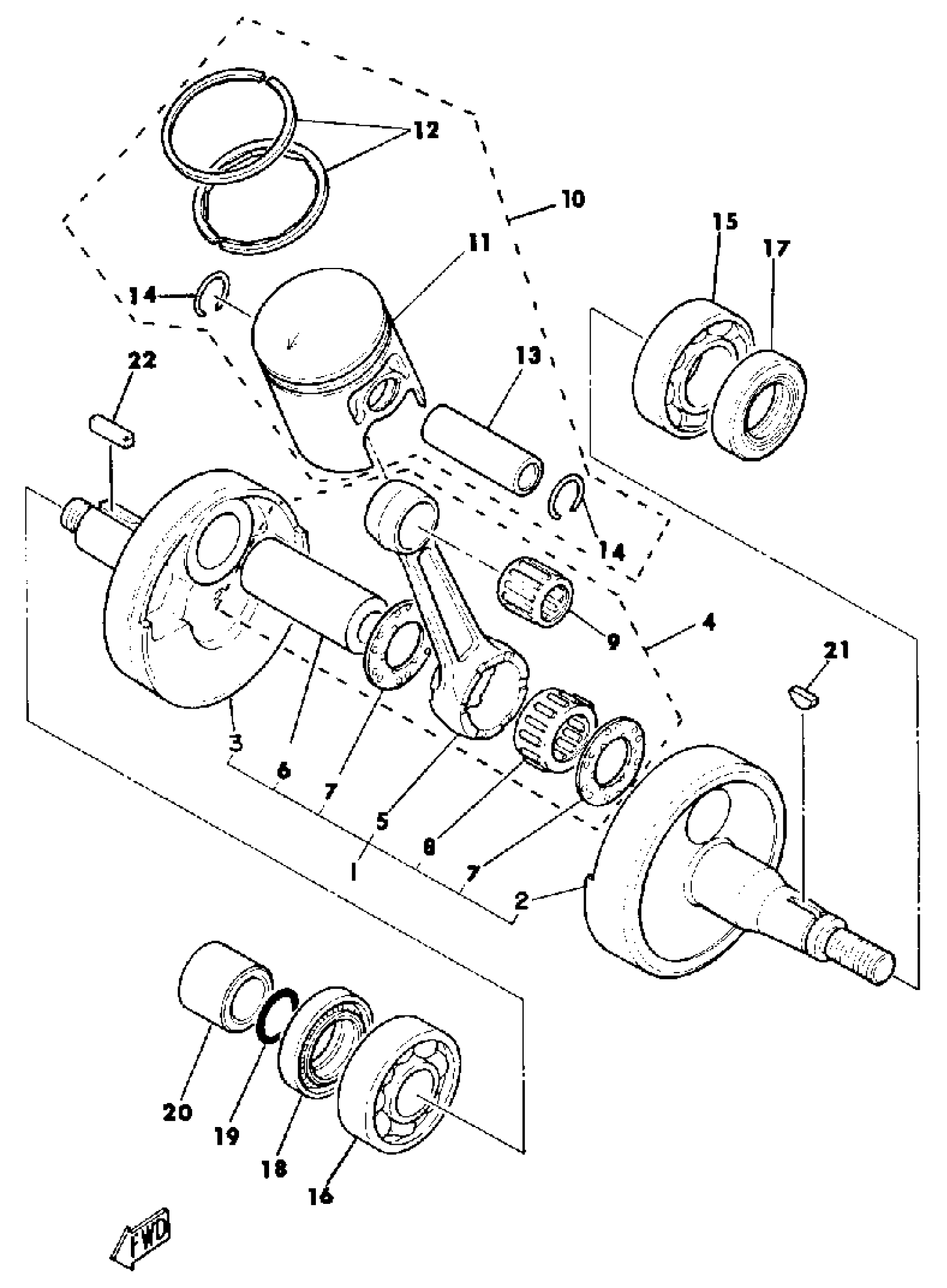

1981 Yamaha MX175 (MX175H) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

2N4-11400-00-00

1
Out of stock

2

CRANK (L.H)

1W1-11412-01-00

—

$257.00

In stock

3

CRANK (R.H)

1W1-11422-01-00

—

$132.11

In stock

4

CONNECTING ROD ASSEMBLY

(3U5-11650-00-00)

1
Out of stock

5

. ROD, CONNECTING 1

25V-11651-00-00

1
Out of stock

6

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

9

1

$23.03

In stock

10

PISTON KIT STD

2N5-11630-00-00

1
Out of stock

11

PISTON STD (2A7-11631-00-96)

2N5-11631-00-96

1
Out of stock

12

PISTON RINGSET STD

2N5-11610-00-00

1
Out of stock

13

PIN, PISTON

251-11633-00-00

1

$23.85

In stock

14

CIRCLIP (1L9)

93450-17044-00

1

$5.10

In stock

15

1

$35.25

In stock

16

—

$54.91

In stock

17

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

18

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

19

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

20

COLLAR, DISTANCE (525)

90387-20488-00

—

$21.72

In stock

21

PISTON RING SET (1ST O/S)

2N5-11610-10-00

—

$38.97

In stock

21

PISTON RINGSET 2ND

2N5-11610-20-00

1
Out of stock

21

PISTON RINGSET 3RD

2N5-11610-30-00

1
Out of stock

21

PISTON RINGSET 4TH

2N5-11610-40-00

1
Out of stock

21

PISTON KIT 1ST

2N5-11630-10-00

1
Out of stock

21

PISTON KIT 2ND

2N5-11630-20-00

1
Out of stock

21

PISTON KIT 3RD

2N5-11630-30-00

1
Out of stock

21

PISTON KIT 4TH

2N5-11630-40-00

1
Out of stock

21

PISTON 1 O/S 0.25 (2A7-11635-00)

2N5-11635-00-00

1
Out of stock

21

PISTON (2ND O/S)

2N5-11636-00-00

—

$161.20

In stock

21

PISTON 3 O/S 0.75 (2A7-11637-00)

2N5-11637-00-00

1
Out of stock

21

PISTON 4 O/S 1.00 (2A7-11638-00)

2N5-11638-00-00

1
Out of stock

21

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

21

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
