1981 Yamaha MX175 (MX175H) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

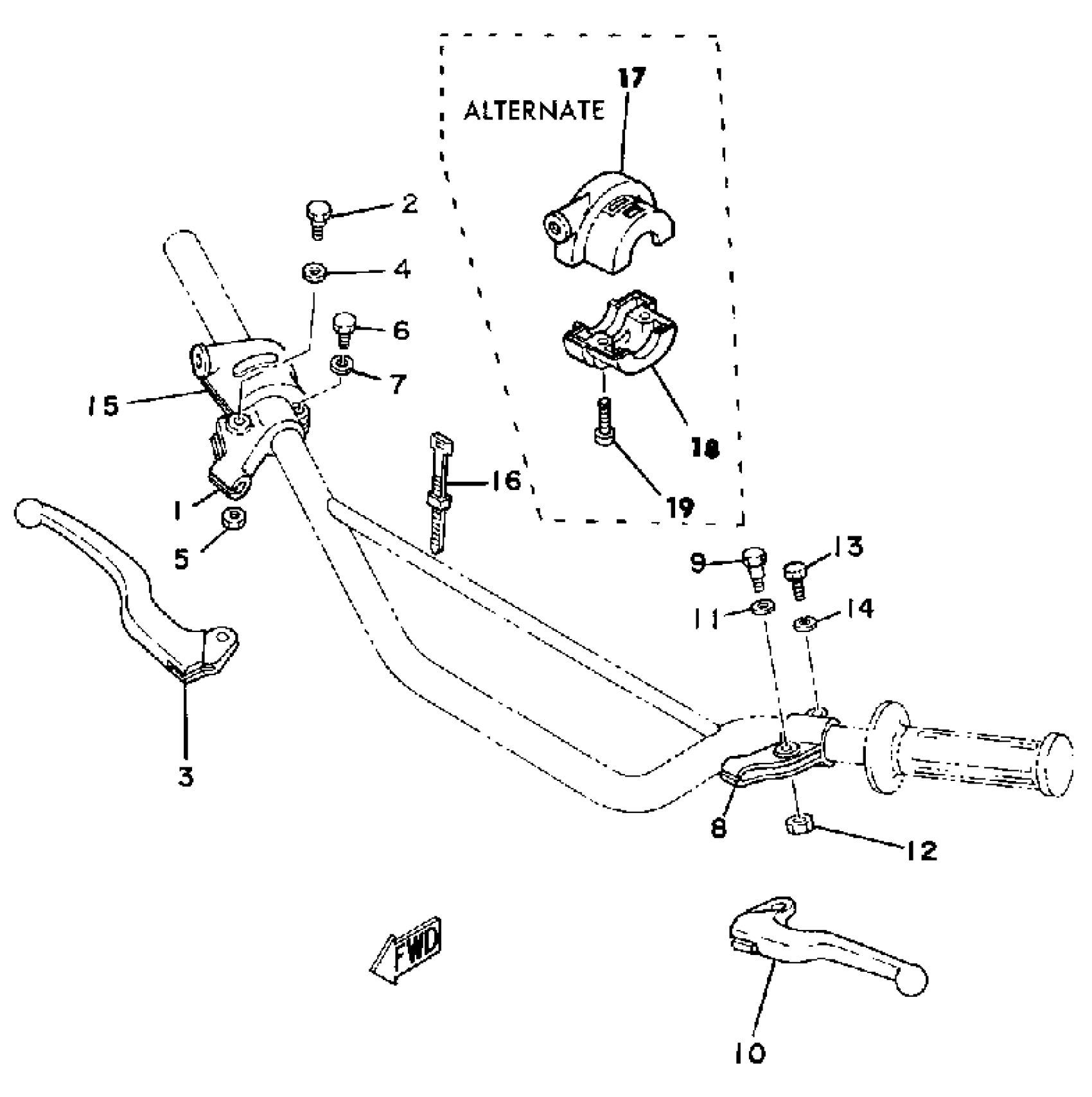

1981 Yamaha MX175 (MX175H) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 2

516-82921-30-00

1
Out of stock

2

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

3

LEVER R

23X-83922-01-00

1

$21.74

In stock

4

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

9

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

10

LEVER 1

23X-83912-02-00

1

$21.46

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

13

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SWITCH, HANDLE 1

(2X6-83976-00-98)

1
Out of stock

16

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

17

CAP, GRIP UPPER

3M2-26281-00-00

1
Out of stock

18

CAP, GRIP LOWER

437-26282-02-00

1
Out of stock

19

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock
