1981 Yamaha MX175 (MX175H) Electrical 1 Diagram

← All diagrams

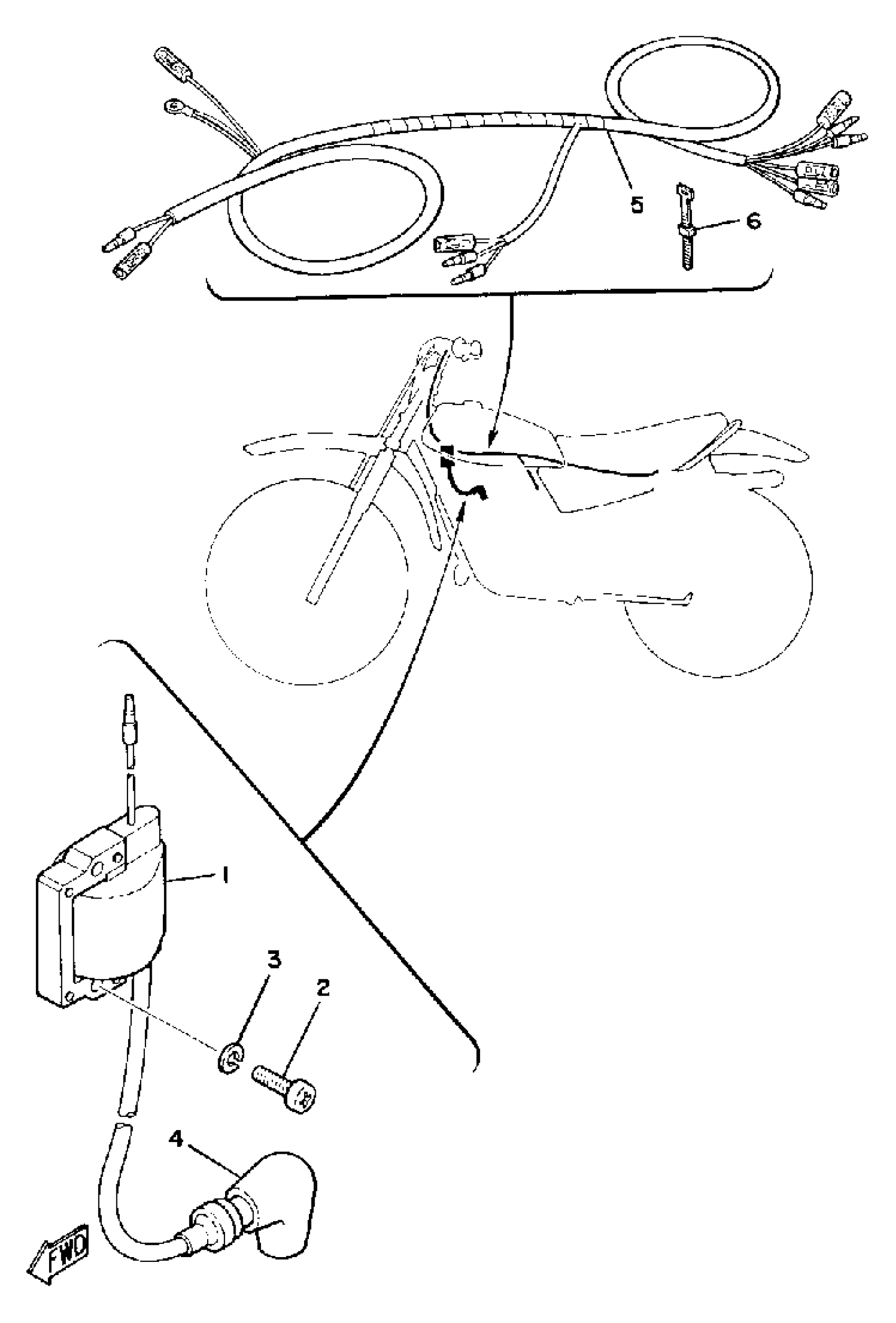

Find the part on the Electrical 1 diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

5

WIRE HARNESS ASSEMBLY

(3M2-82590-01-00)

1
Out of stock

6

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
