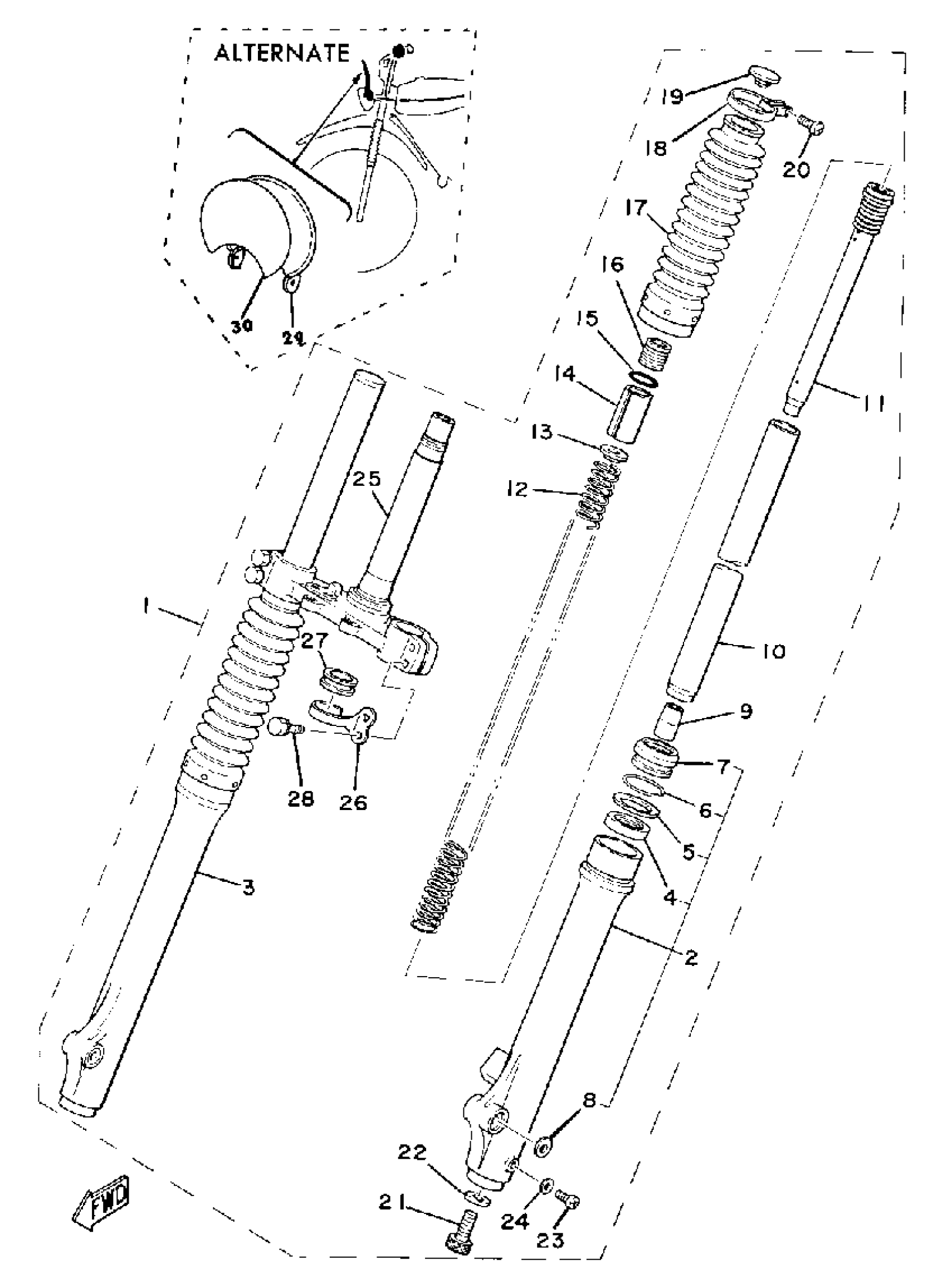

Yamaha MX175H (MX175) 1981 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3M2-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3J0-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3J0-23136-00-00)

Unavailable

4

OIL SEAL

2K5-23145-00-00

Unavailable

5

.. WASHER, OIL SEAL

2K5-23146-00-00

Unavailable

6

RING, SNAP

15E-23153-00-00

Unavailable

7

DUST SEAL

3Y6-23144-00-00

Unavailable

8

WASHER, FELT

(2K5-23165-00-00)

Unavailable

9

SPINDLE

2K5-23173-00-00

$35.99

10

INNER TUBE 1

(3J0-23110-00-00)

Unavailable

11

CYLINDER, FRTFRK

(3J0-23170-00-00)

Unavailable

12

SPRING, FRONT FORK

(3J0-23141-00-00)

Unavailable

13

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

14

SPACER

(3J0-23118-00-00)

Unavailable

15

PACKING(O-RING)

146-23114-00-00

$18.49

16

BOLT, CAP

1X0-23111-00-00

Unavailable

17

. BOOT, FRONT FORK

2K5-23191-M0-00

Unavailable

18

BAND, BOOT

2K5-23192-00-00

Unavailable

19

CAP

1X0-23168-00-00

Unavailable

20

SCREW

509-23194-L0-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

22

GASKET

509-23158-L0-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

24

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

25

UNDER BRACKET

(2N4-23340-00-33)

Unavailable

26

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

27

GUIDE, WIRE

1W1-23389-00-00

Unavailable

28

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

29

PLATE, NUMBER

1W2-23485-00-00

Unavailable

30

EMBLEM

1W2-23395-00-00

Unavailable
