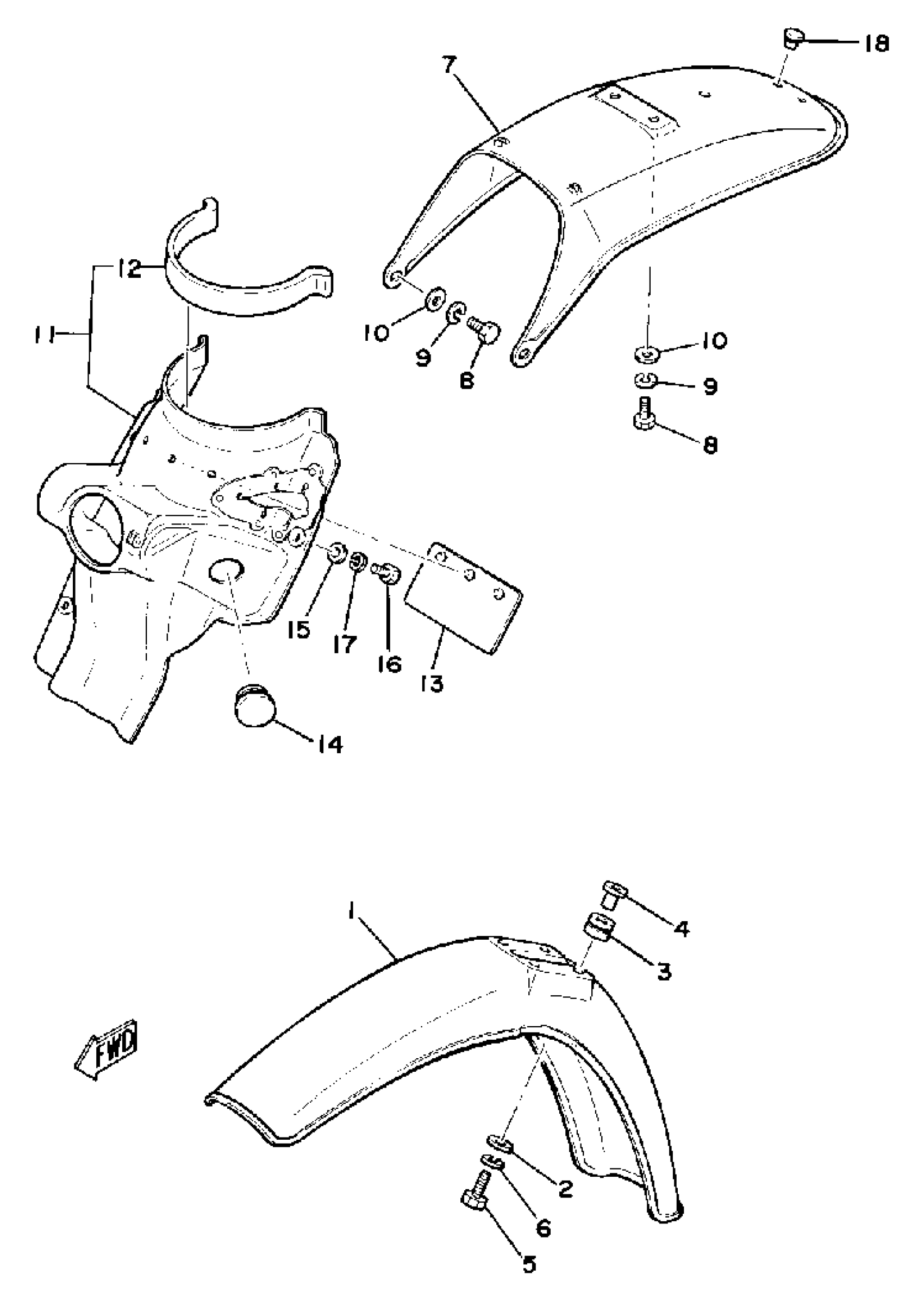

Yamaha MX175H (MX175) 1981 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3J0-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

GROMMET

90480-14198-00

$9.49

4

COLLAR

90387-06158-00

$8.49

5

BOLT, HEXAGON

97017-06025-00

$4.24

6

WASHER, SPRING

92995-06100-00

Unavailable

7

FENDER, REAR

2A8-21611-80-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

GUARD, MUD

(99999-01151-00)

Unavailable

12

DAMPER

2A6-21639-00-00

Unavailable

13

FLAP

1M1-21621-00-00

$16.49

14

GROMMET

90480-01254-00

Unavailable

15

WASHER, PLATE

90201-06380-00

$0.60

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

17

WASHER, SPRING

92995-06100-00

Unavailable

18

GROMMET 122154860000

90480-12012-00

Unavailable
