REAR WHEEL

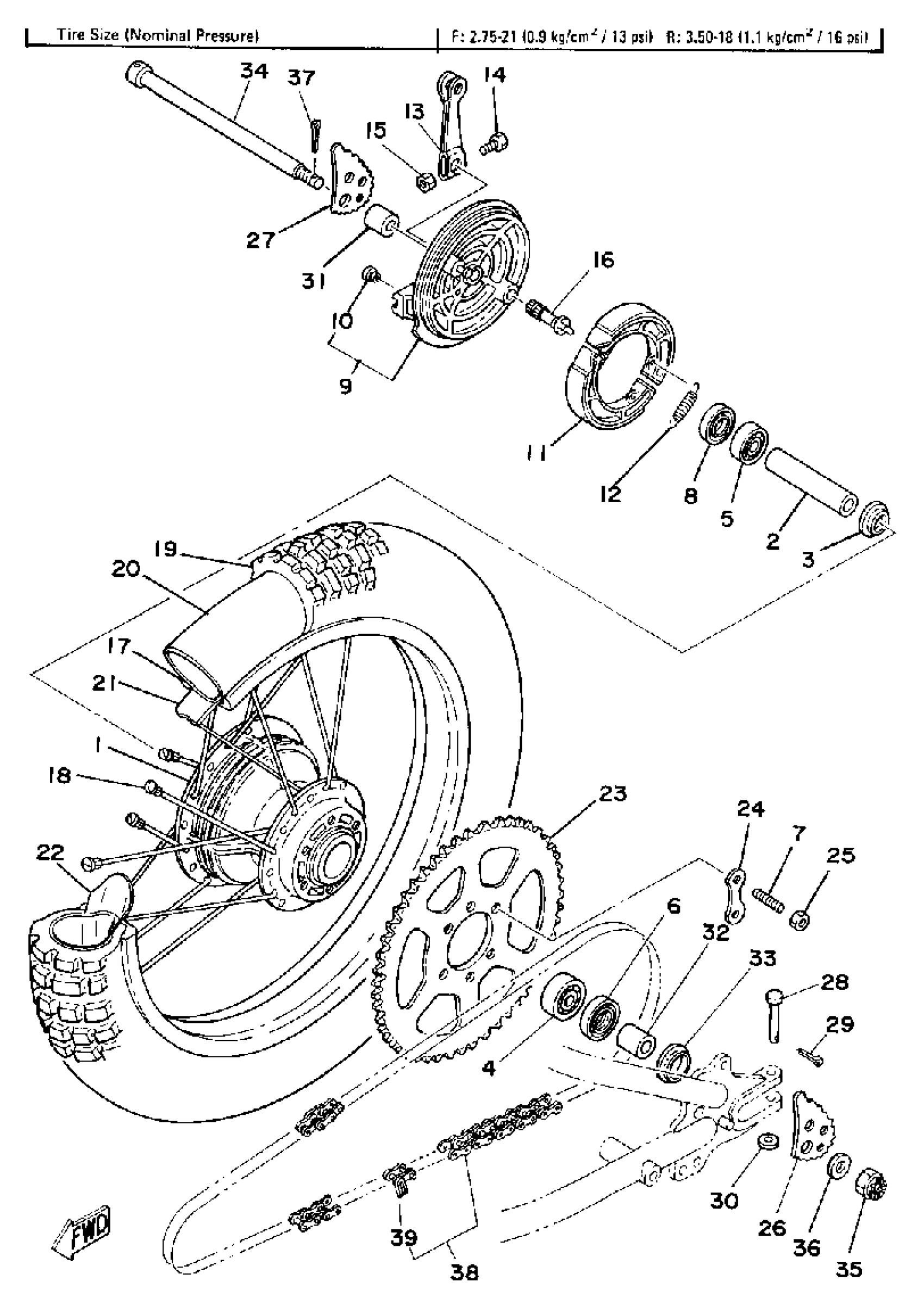

1980 Yamaha MX175 (MX175G) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
1W1-25311-00-98
8
OIL SEAL (22X35X5)
93104-22018-00
9
BRAKE SHOE PLATE ASSEMBLY (2A6-25026-00-98)BRAKE SHOE PLAT
99999-02024-00
11
BRAKE SHOE SET-2PCS
437-W2536-00-00
13
LEVER, CAM SHAFT
1E2-25155-00-00
18
SPOKE SET, REAR
401-25304-00-00
19
CS 350X18 C-755-1
(94135-18551-00)
20
TUBE (2RH)
94232-18113-00
23
SPROCKET, DRIVEN 49T
18L-25449-20-00
23
GEAR, SPROCKET WHEEL
1X0-25445-10-00
23
SPOCKET, DRVN 47T
2N0-25447-10-00
26
PULLER, CHAIN (L.H)
1W2-25388-01-00
27
PULLER, CHAIN (R.H)
1W2-25389-01-00
31
COLLAR
90387-15524-00
32
COLLAR
90387-15524-00
34
AXLE, WHEEL
5X3-25381-00-00
36
WASHER (525)
90201-15238-00
38
CHAIN
9Y582-51117-00
