1980 Yamaha MX175 (MX175G) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

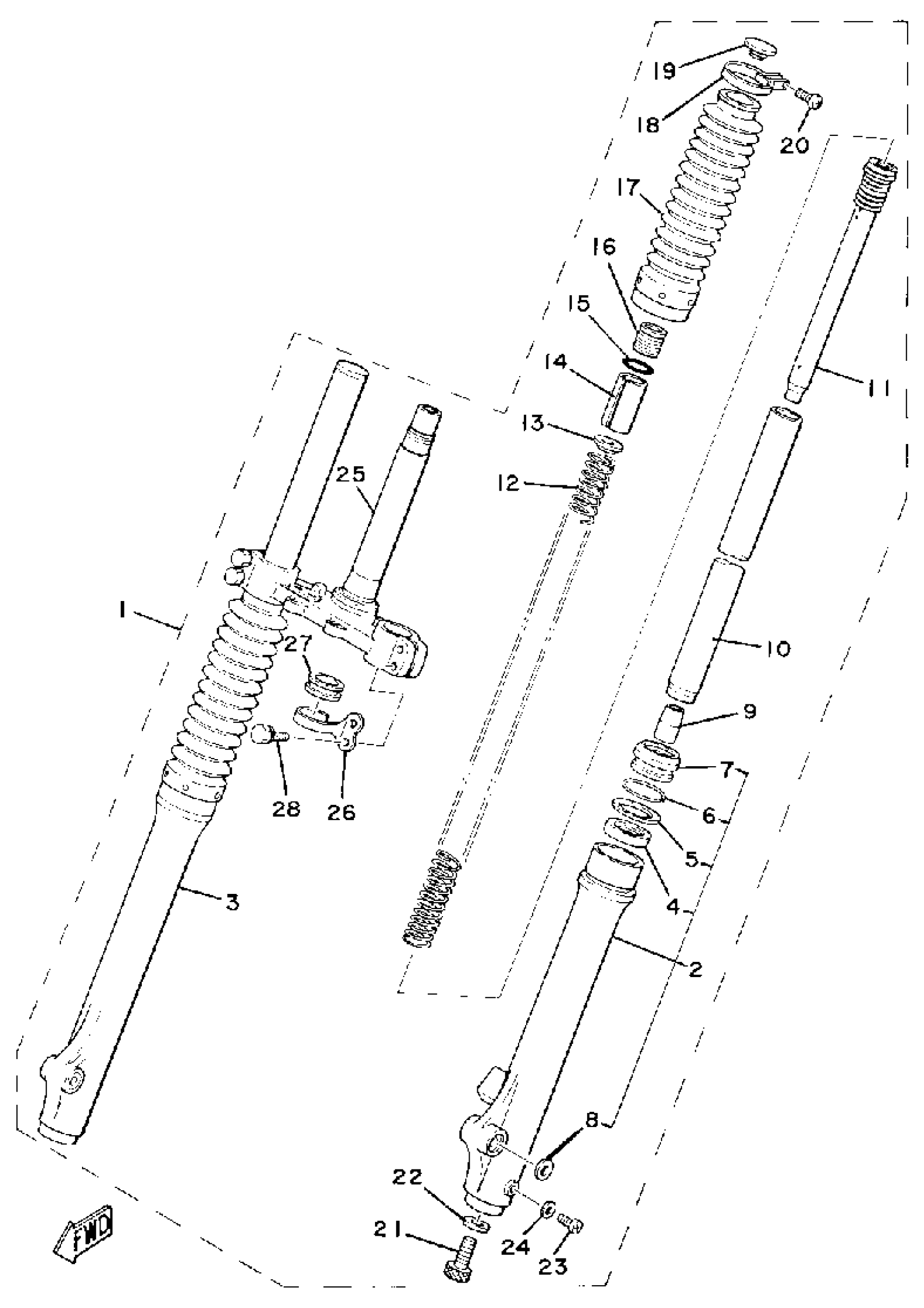

1980 Yamaha MX175 (MX175G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3M2-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(3J0-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(3J0-23136-00-00)

1
Out of stock

4

OIL SEAL

2K5-23145-00-00

—

$27.50

In stock

5

.. WASHER, OIL SEAL

2K5-23146-00-00

1
Out of stock

6

RING, SNAP

15E-23153-00-00

—

$8.74

In stock

7

DUST SEAL

3Y6-23144-00-00

—

$14.25

In stock

8

WASHER, FELT

(2K5-23165-00-00)

1
Out of stock

9

SPINDLE

2K5-23173-00-00

1
Out of stock

10

INNER TUBE 1

(3J0-23110-00-00)

1
Out of stock

11

CYLINDER, FRTFRK

(3J0-23170-00-00)

1
Out of stock

12

SPRING, FRONT FORK

(3J0-23141-00-00)

1
Out of stock

13

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

14

SPACER

(3J0-23118-00-00)

1
Out of stock

15

PACKING(O-RING)

146-23114-00-00

1
Out of stock

16

BOLT, CAP

1X0-23111-00-00

—
Out of stock

17

. BOOT, FRONT FORK

2K5-23191-M0-00

1
Out of stock

18

BAND, BOOT

2K5-23192-00-00

—

$19.11

In stock

19

CAP

1X0-23168-00-00

—
Out of stock

20

SCREW

509-23194-L0-00

—

$4.12

In stock

21

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

22

GASKET

509-23158-L0-00

—

$14.34

In stock

23

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

25

UNDER BRACKET

(2N4-23340-00-33)

1
Out of stock

26

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

27

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

28

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

1
Out of stock
