Description

Price

1

FENDER, FRONT

3J0-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

GROMMET

90480-14198-00

$9.49

4

COLLAR

90387-06158-00

$8.49

5

BOLT, HEXAGON

97017-06025-00

$4.24

6

WASHER, SPRING

92995-06100-00

Unavailable

7

FENDER, REAR

2A8-21611-80-00

Unavailable

8

BRACKET,FENDER

4J3-21617-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

GUARD, MUD

(99999-01151-00)

Unavailable

13

DAMPER

2A6-21639-00-00

Unavailable

14

FLAP

1M1-21621-00-00

$16.49

15

GROMMET

90480-01254-00

Unavailable

16

WASHER, PLATE

90201-06380-00

$0.60

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

18

WASHER, SPRING

92995-06100-00

Unavailable

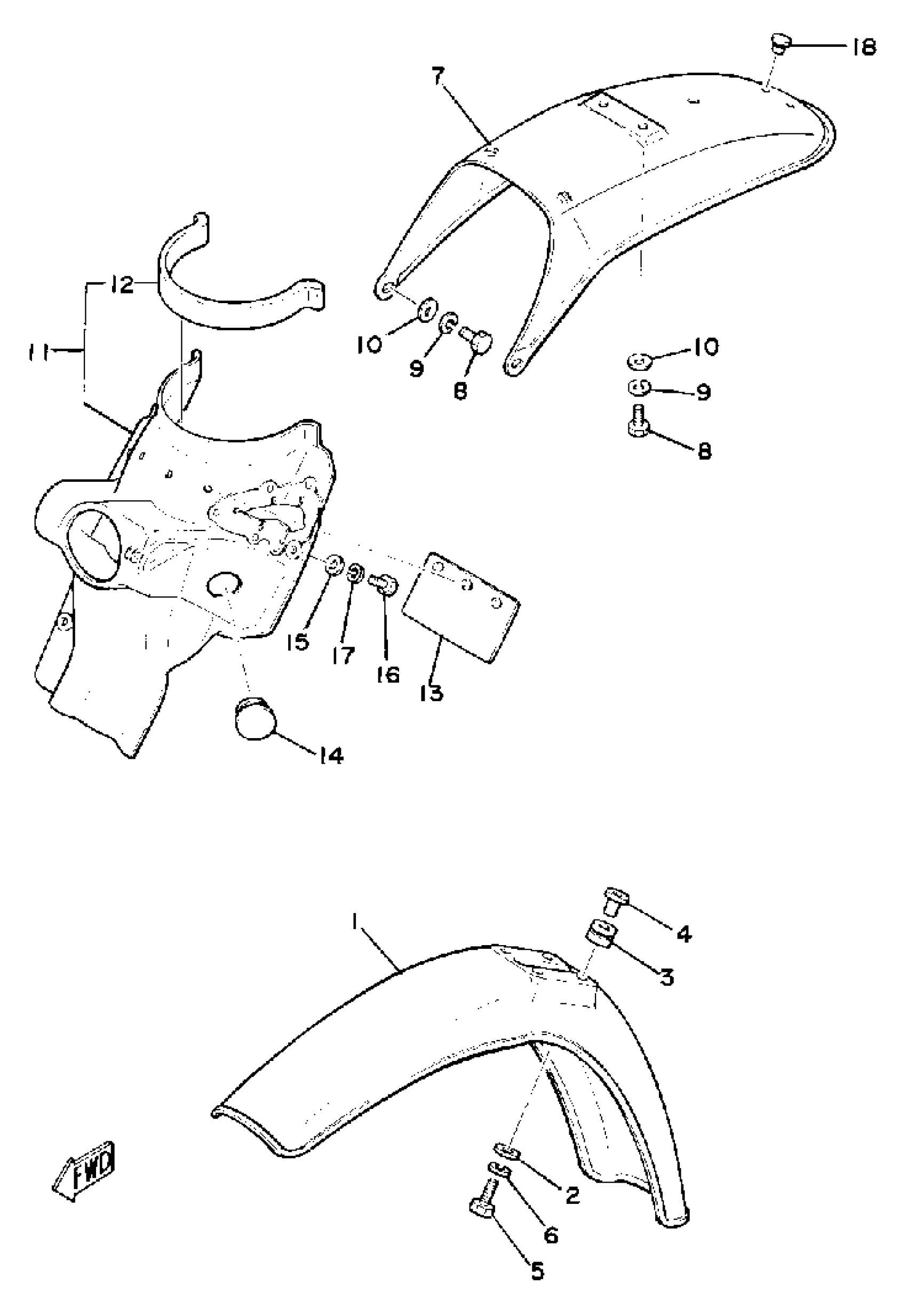

Yamaha MX175G (MX175) 1980 FRONT FENDER-REAR FENDER Diagram

FENDER, FRONT

WASHER, PLATE

GROMMET

COLLAR

BOLT, HEXAGON

WASHER, SPRING

FENDER, REAR

BRACKET,FENDER

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

GUARD, MUD

DAMPER

FLAP

GROMMET

WASHER, PLATE

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING
