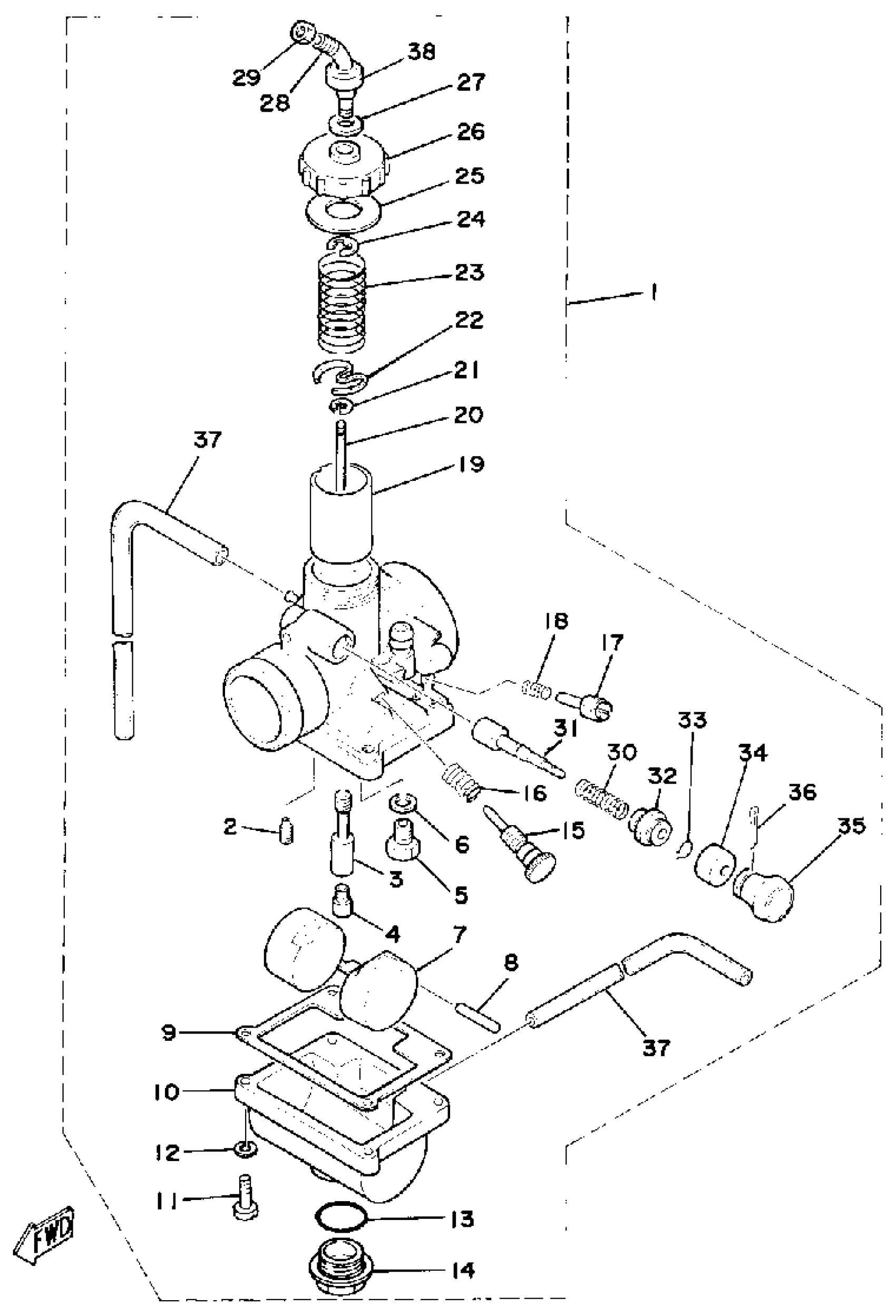

Yamaha MX175G (MX175) 1980 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3M2-14101-00-00

Unavailable

2

JET, PILOT (# 27.5)

260-14142-27-00

$9.99

3

. NOZZLE, MAIN

558-14141-32-00

Unavailable

4

JET, MAIN #125

137-14143-25-A0

Unavailable

4

JET, MAIN #130

137-14143-26-A0

$7.99

4

JET, MAIN #135

137-14143-27-00

Unavailable

5

VALVE SEAT ASSY

1V0-14190-25-00

Unavailable

6

WASHER, VALVE SEAT

214-14195-00-00

$7.99

7

FLOAT

314-14185-00-00

$66.99

8

PIN, FLOAT

127-14186-00-00

$6.65

9

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

10

. BODY, FLOAT CHMBR 1

539-14181-04-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

O-RING (541)

558-14147-00-00

$9.99

14

PLUG, SCREW

500-14115-00-00

Unavailable

15

. SCREW, THROTTLE

493-14122-00-00

Unavailable

16

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

17

AIR SCREW SET

22K-14104-00-00

Unavailable

18

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

19

. VALVE, THROTTLE 1

314-14112-30-00

Unavailable

20

NEEDLE SET

18L-1490J-00-00

Unavailable

21

CLIP

363-14137-00-00

Unavailable

22

. STOPPER, CABLE

246-14132-00-00

Unavailable

23

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

24

CLIP

3FA-14137-00-00

Unavailable

25

GASKET

2A6-14126-00-00

Unavailable

26

. TOP, MIXING CHAMBER

2A6-14158-00-00

Unavailable

27

GASKET

509-14198-00-00

Unavailable

28

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

29

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

30

SPRING, PLUNGER

156-14135-00-00

Unavailable

31

. PLUNGER, STARTER

304-14171-00-00

Unavailable

32

CAP, PLUNGER

152-14174-00-00

Unavailable

33

CLIP, PLUNGER

353-14138-00-00

Unavailable

34

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

35

HOLDER

304-14261-00-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable

37

PIPE

23F-14197-00-00

Unavailable

38

CAP

3X3-14169-00-00

Unavailable
