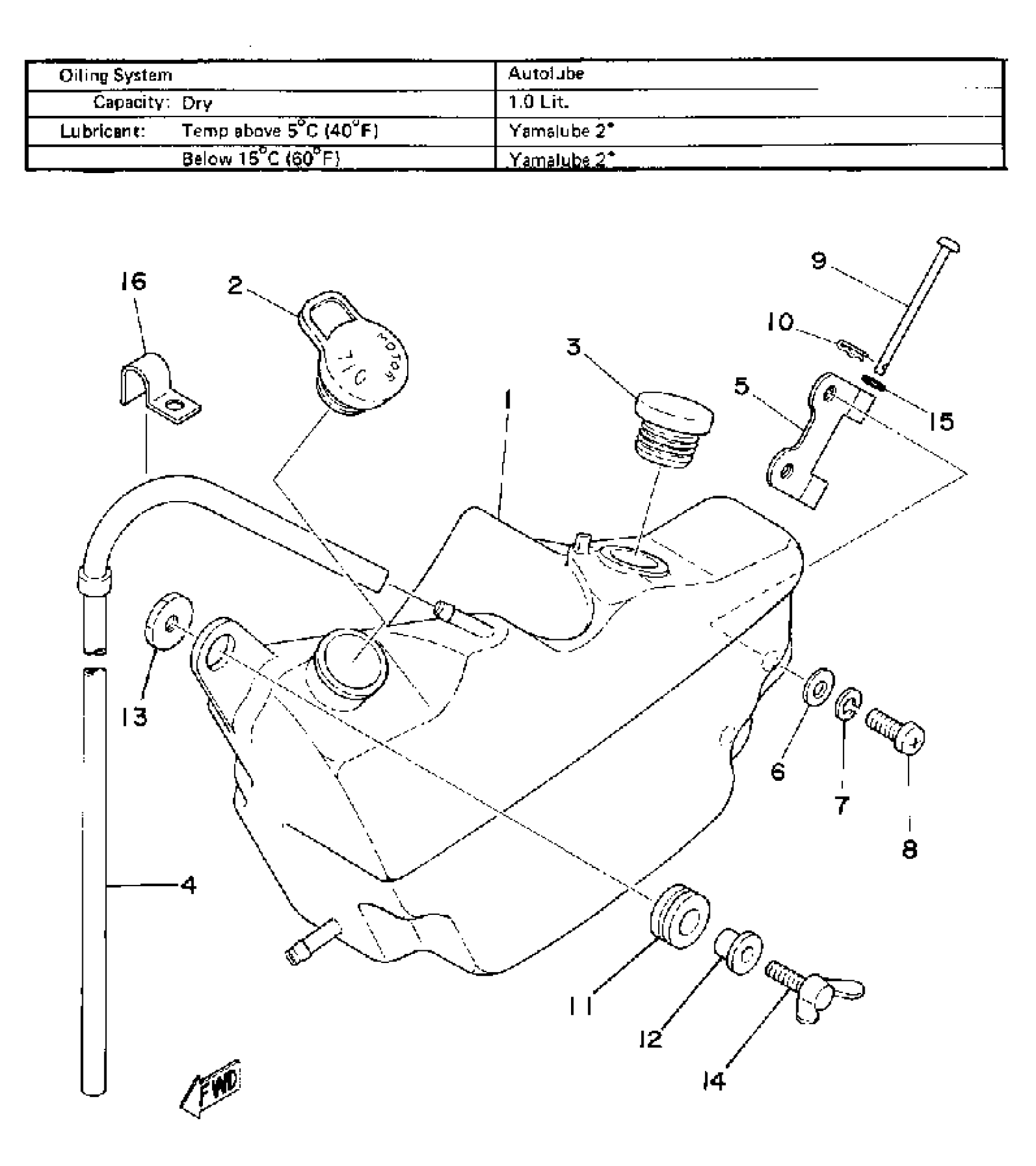

Yamaha MX175F (MX175) 1979 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

2A6-21751-00-00

Unavailable

2

BODY, CAP

1T9-21771-01-00

$7.99

3

BODY, CAP

3M2-21771-00-00

Unavailable

4

HOSE (L545)

90445-09361-00

Unavailable

5

HINGE

2A6-21796-00-00

Unavailable

6

WASHER, PLATE

90201-06380-00

$0.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

PIN, CLEVIS

91701-05050-00

Unavailable

10

CLIP (156-83525-00)

90468-10050-00

$3.05

11

GROMMET 839774310000

90480-14023-00

$7.49

12

COLLAR 437216330000

90387-07391-00

Unavailable

13

NUT, RATCH CLAMP (462)

90179-06013-00

$7.49

14

BOLT, WING (38W)

90122-06021-00

Unavailable

15

O-RING (256)

93210-04122-00

$8.49

16

CLAMP 363154850100

90462-05005-00

Unavailable
