1979 Yamaha MX175 (MX175F) Frame-Side Cover Diagram

← All diagrams

Find the part on the Frame-Side Cover diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

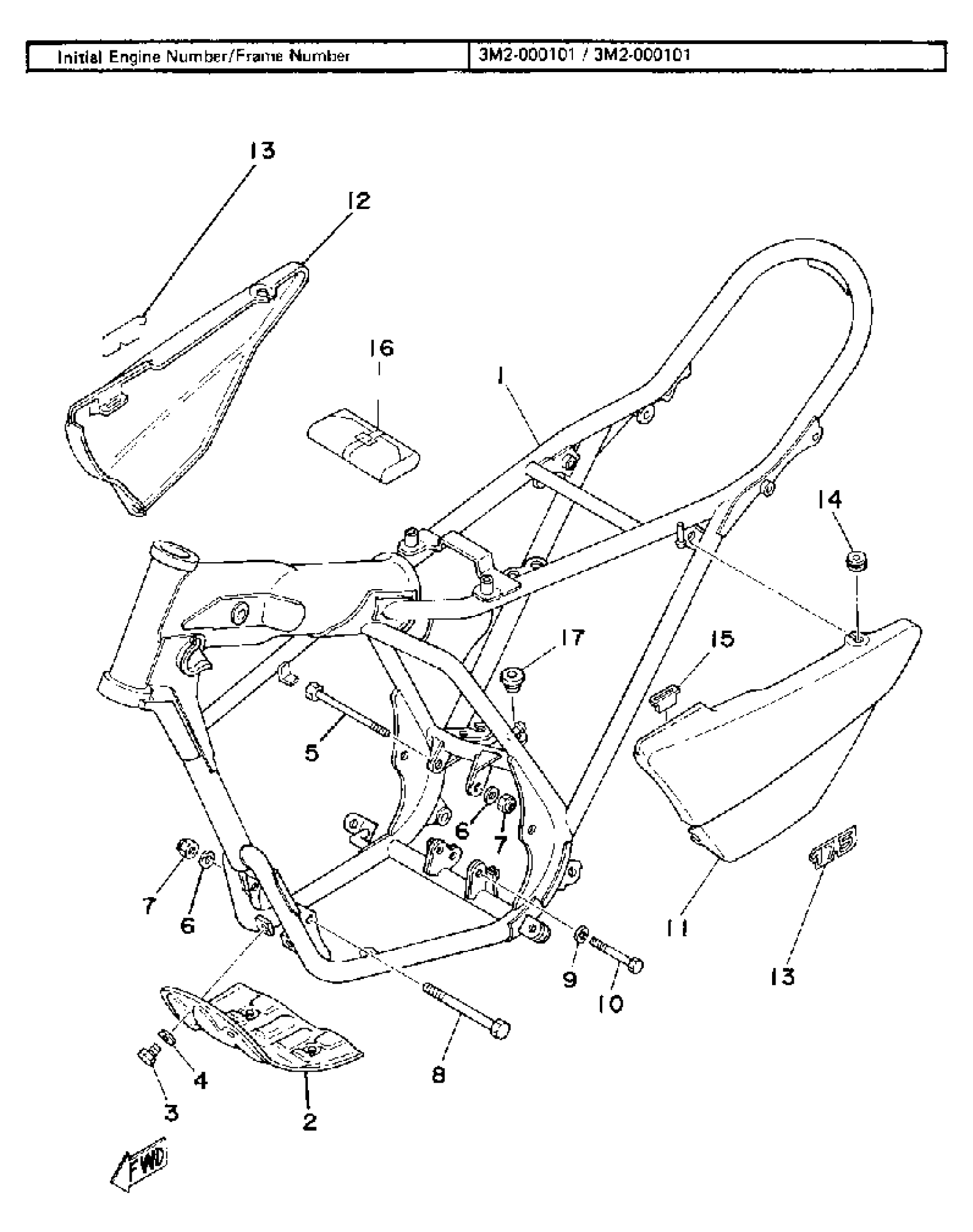

1979 Yamaha MX175 (MX175F) Frame-Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3M2-21110-00-33)

1
Out of stock

2

PROTECTOR, ENGINE

(2A6-21471-00-90)

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

8

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOLT

90105-10037-00

—

$7.51

In stock

11

COVER, SIDE 1

(2N4-21711-01-2H)

1
Out of stock

12

COVER, SIDE 2

2N4-21721-01-2H

1
Out of stock

13

EMBLEM 6

(3M2-21786-00-00)

1
Out of stock

14

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

15

DAMPER, SIDE COVER

2N4-21717-00-00

—

$6.38

In stock

16

TOOL KIT

2A6-W2810-00-00

—

$87.63

In stock

17

GROMMET (509)

90480-18171-00

—

$6.55

In stock
