CARBURETOR

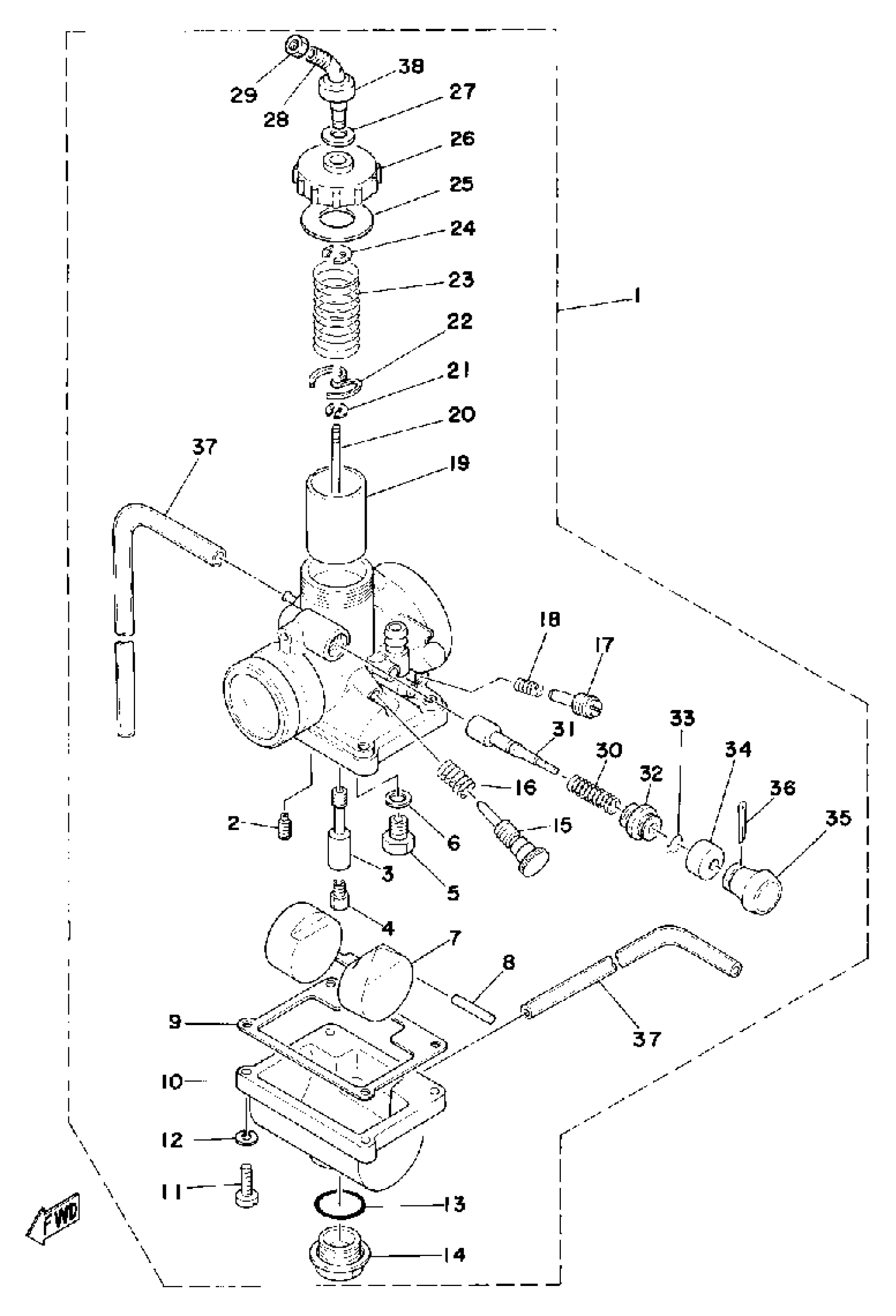

1979 Yamaha MX175 (MX175F) Carburetor Diagram
Find the part on the Carburetor diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
3M2-14101-00-00
2
JET, PILOT (# 27.5)
260-14142-27-00
3
. NOZZLE, MAIN
558-14141-32-00
4
JET, MAIN #130
137-14143-26-A0
7
FLOAT
314-14185-00-00
9
GASKET,FLOAT CHAMBER
304-14184-00-00
10
. BODY, FLOAT CHMBR 1
539-14181-04-00
13
O-RING (541)
558-14147-00-00
15
. SCREW, THROTTLE
493-14122-00-00
16
. SPRING, THROTTLE STOP
493-14133-00-00
19
. VALVE, THROTTLE 1
314-14112-30-00
22
. STOPPER, CABLE
246-14132-00-00
23
SPRING, THROTTLE VALVE
248-14131-00-00
25
GASKET
2A6-14126-00-00
26
. TOP, MIXING CHAMBER
2A6-14158-00-00
31
. PLUNGER, STARTER
304-14171-00-00
More Air & Fuel diagrams
