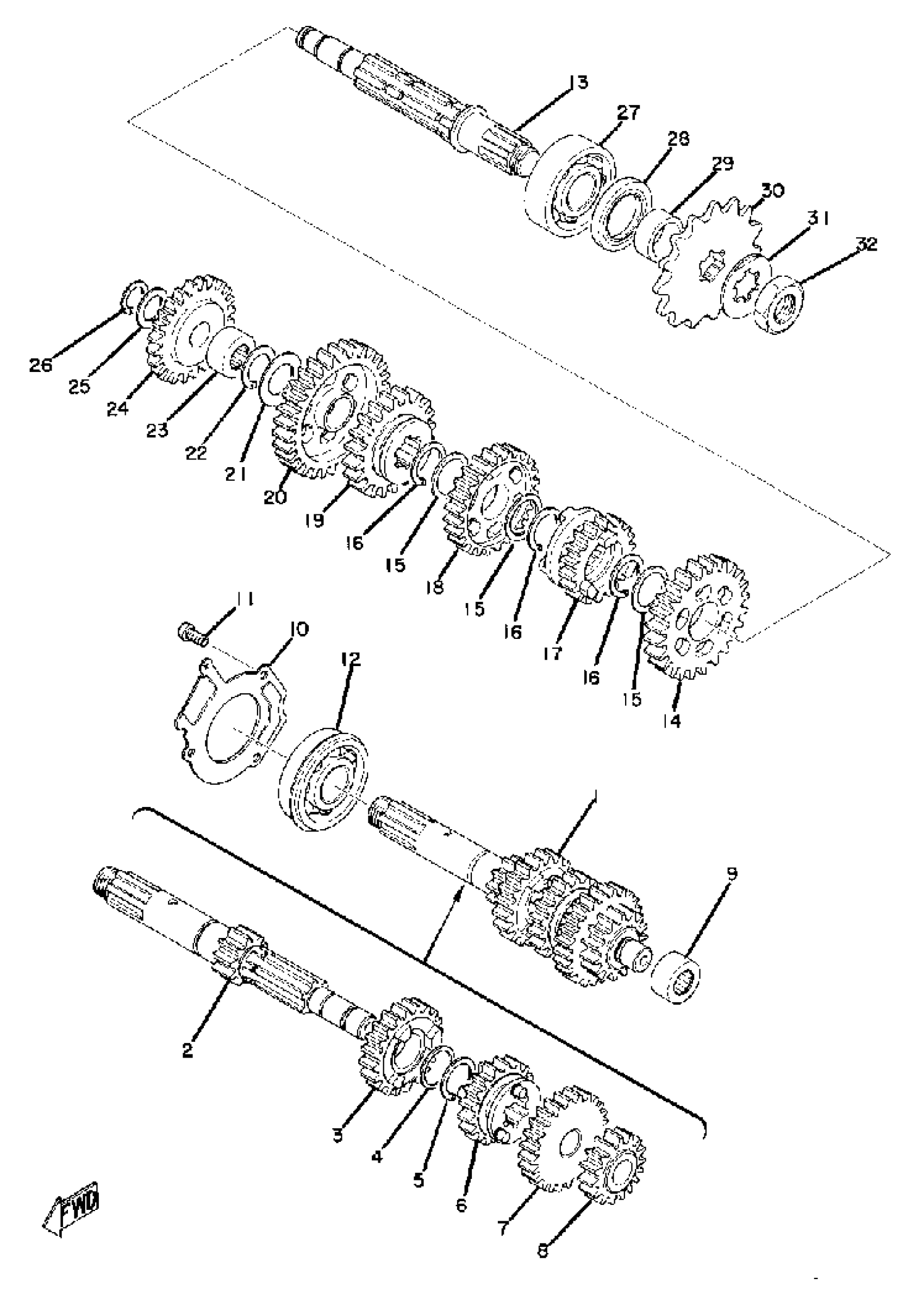

Yamaha MX175A (MX175) 1974 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(401-17410-60-00)

Unavailable

2

AXLE, MAIN

(401-17411-00-00)

Unavailable

3

GEAR, 4TH PINION

(427-17141-00-00)

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

. GEAR, 3RD PINION (19T)

427-17131-00-00

Unavailable

7

GEAR, 5TH PINION

(427-17151-00-00)

Unavailable

8

GEAR, 2ND PINION

(427-17121-00-00)

Unavailable

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

10

PLATE, COVER

401-17471-00-00

Unavailable

11

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

12

BEARING(3BC)

93306-30437-00

$66.99

13

AXLE, DRIVE

315-17421-01-00

Unavailable

14

GEAR, 2ND WHEEL

427-17221-00-00

$45.99

15

WASHER PLATE 132172160000

90201-20266-00

$9.49

16

CIRCLIP (525)

93410-20038-00

$3.76

17

GEAR, 5TH WHEEL

(427-17251-00-00)

Unavailable

18

GEAR, 3RD WHEEL

427-17231-00-00

Unavailable

19

GEAR, 4TH WHEEL

(265-17241-00-00)

Unavailable

20

GEAR, 1ST WHEEL

(265-17211-00-00)

Unavailable

21

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

22

CIRCLIP

93440-15012-00

Unavailable

23

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

24

GEAR, KICK IDLE

401-15651-00-00

Unavailable

25

WASHER

132-15653-00-12

Unavailable

26

CIRCLIP(13M)

99009-13400-00

Unavailable

27

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

28

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

29

COLLAR (525)

90387-20491-00

Unavailable

30

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

30

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

31

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

32

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable
