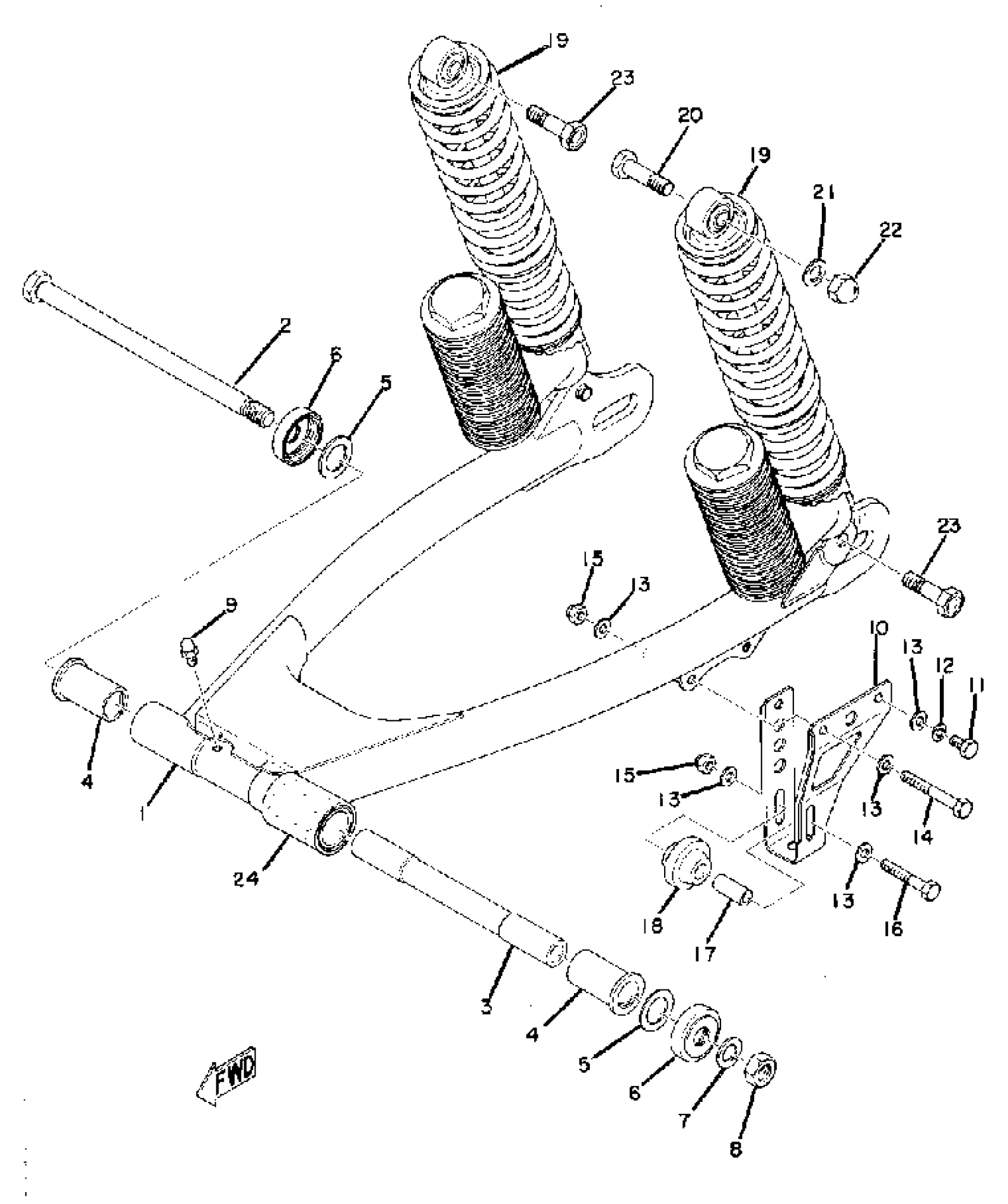

Yamaha MX175A (MX175) 1974 REAR ARM - REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(401-22110-00-33)

Unavailable

2

AXLE,WHEEL

2J5-25381-01-00

Unavailable

3

BUSHING (401-22124-00)

90389-12002-00

Unavailable

4

BUSHING (401-22123-00)

90386-18028-00

$26.99

5

SHIM

401-22127-00-00

$7.99

6

COVER, THRUST 1

401-22128-01-00

$29.99

7

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

8

NUT(3DM)

95304-12600-00

$8.49

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

GUARD, CHAIN

401-22153-00-33

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT (682)

97095-06040-00

Unavailable

17

SPACER (322-22137-00)

90560-06003-00

Unavailable

18

TENSIONER

322-22178-00-00

Unavailable

19

SHK/ABS ASSEMBLY, REAR

(401-22210-74-00)

Unavailable

20

BOLT ROUND 214222410000

90106-10025-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

NUT, U

90185-10037-00

Unavailable

22

NUT, CROWN (650)

95380-10800-00

Unavailable

23

BOLT

90109-10195-00

Unavailable

24

SEAL, GUARD

443-22151-00-00

Unavailable
