1974 Yamaha MX175 (MX175A) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

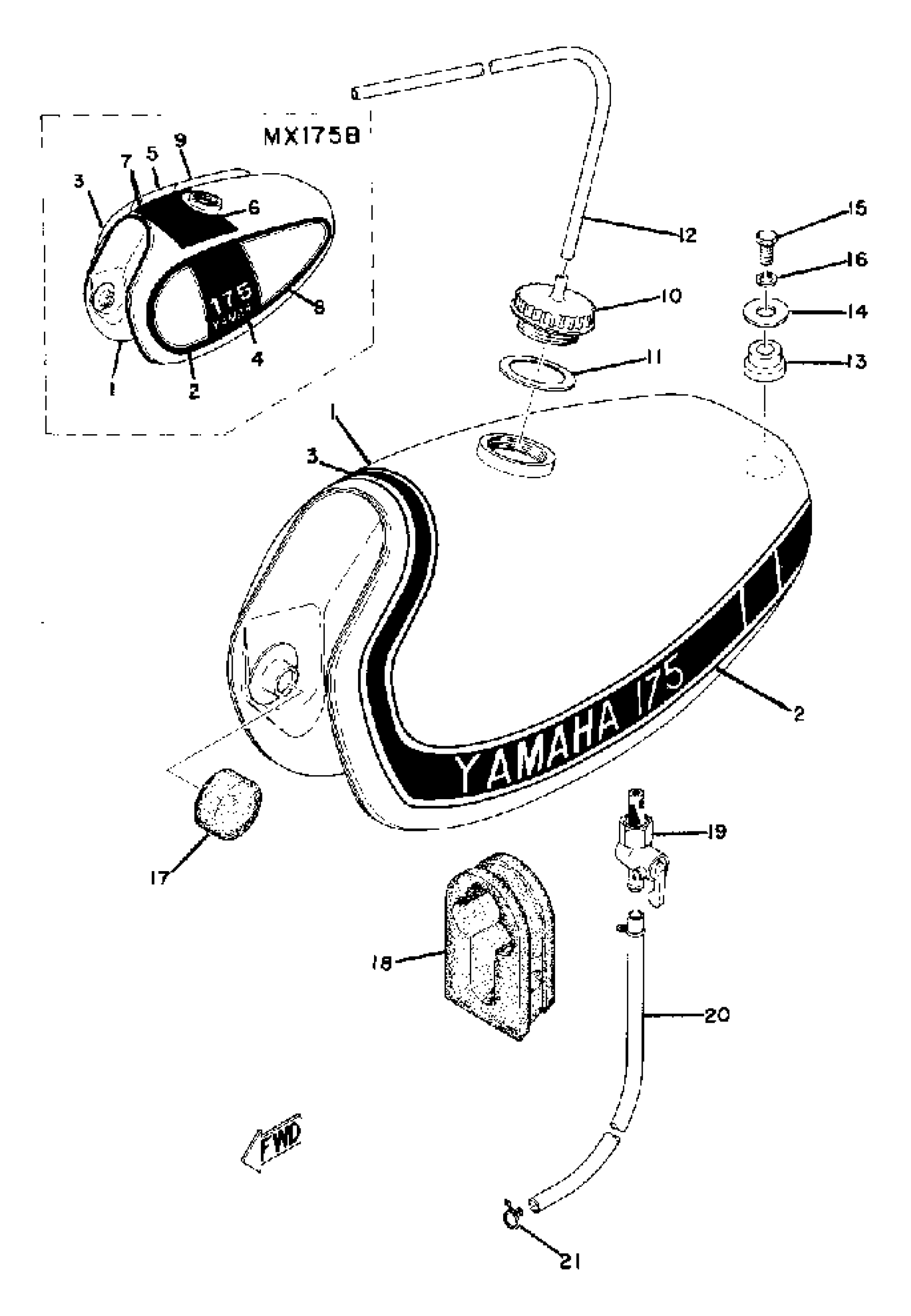

1974 Yamaha MX175 (MX175A) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(401-24110-00-05)

1
Out of stock

1

FUEL TANK

(401-24110-00-08)

1
Out of stock

2

GRAPHIC, FUEL TNK 1

(455-24244-00-00)

1
Out of stock

2

GRAPHIC, FUEL TNK 1

(455-24244-10-00)

1
Out of stock

3

GRAPHIC, FUEL TNK 2

(455-24245-00-00)

1
Out of stock

3

GRAPHIC, FUEL TNK 2

(455-24245-10-00)

1
Out of stock

4

GRAPHIC, FUEL TNK 3

(455-24246-11-00)

1
Out of stock

5

GRAPHIC, FUEL TNK 4

(455-24247-11-00)

1
Out of stock

6

GRAPHIC, FUEL TNK 5

(427-24248-10-00)

1
Out of stock

7

GRAPHIC, FUEL TNK 6

(427-24249-10-00)

1
Out of stock

8

GRAPHIC SET

(455-24250-10-00)

1
Out of stock

9

STRAINER 1

(455-24251-10-00)

1
Out of stock

10

BODY, CAP

322-24611-02-00

1

$48.92

In stock

11

GASKET (322-24612-00)

90430-37052-00

1
Out of stock

12

HOSE (L1500)

90445-090F6-00

1

$26.35

In stock

13

GROMMET

(90480-25189-00)

1
Out of stock

14

WASHER

90209-08008-00

—
Out of stock

15

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

DAMPER, LOCATING 1

3TB-24181-00-00

—

$12.29

In stock

18

DAMPER, LOCATING 3

(401-24183-00-00)

1
Out of stock

19

FUEL COCK ASSY

322-24500-02-00

—

$79.98

In stock

20

HOSE

90445-11149-00

1
Out of stock

21

CLIP

90467-100A1-00

—
Out of stock
