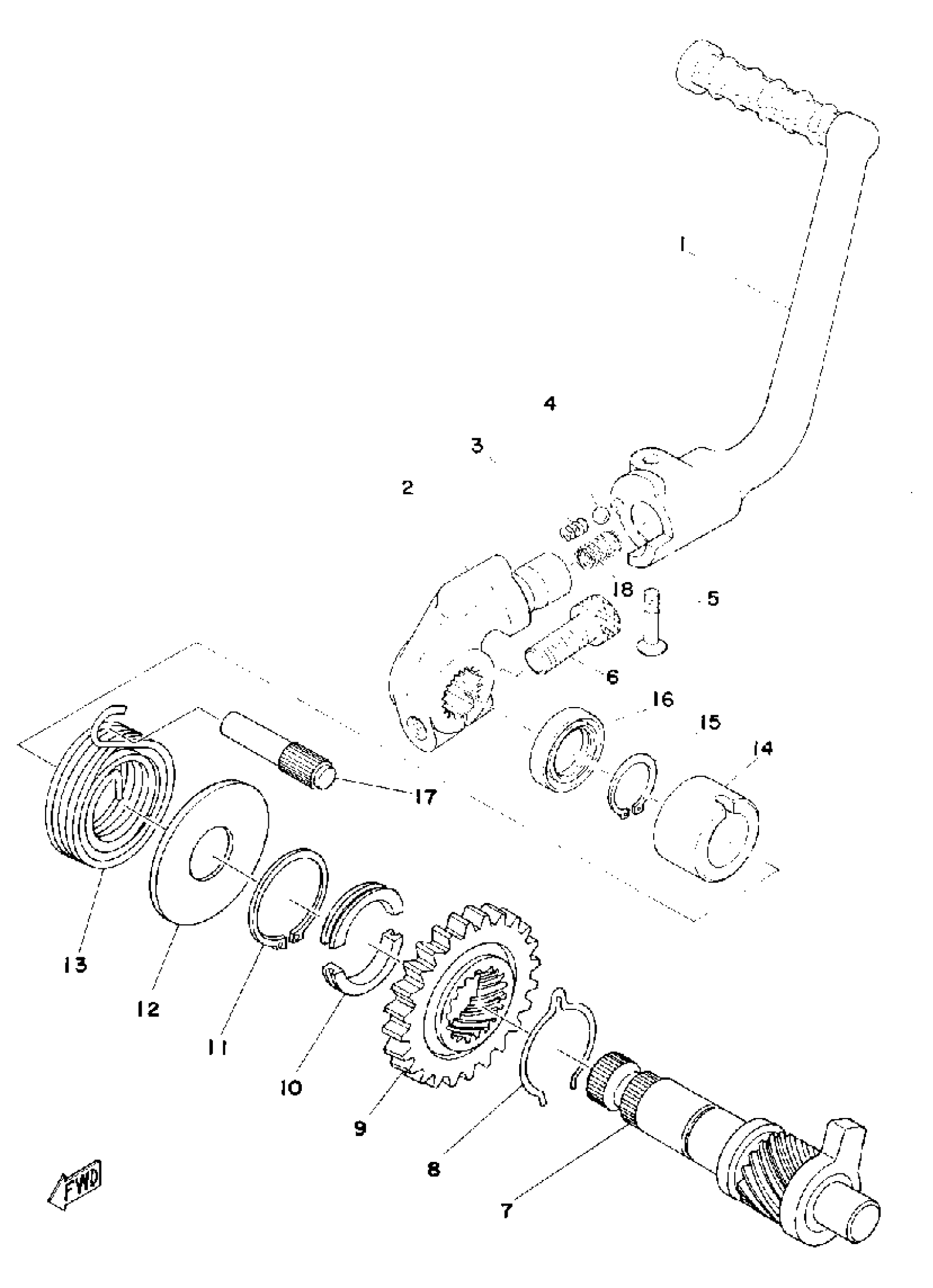

Yamaha MX125C (MX125) 1976 KICK STARTER Diagram

#

Description
Price

1

CRANK, KICK

537-15611-01-00

Unavailable

2

BOSS, KICK CRANK

537-15621-02-00

Unavailable

3

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

4

BALL (12R)

93507-32031-00

$4.73

5

SCREW, COUNTERSUNK

(90151-06007-00)

Unavailable

6

BOLT, SOCKET

91317-08025-00

$8.49

7

KICK AXLE ASSEMBLY

525-15660-01-00

Unavailable

8

CLIP 315156870000

90468-26048-00

$8.49

9

GEAR, KICK

315-15641-00-00

Unavailable

10

HOLDER, KICK GEAR

248-15654-00-00

$8.99

11

CIRCLIP(4A6)

99009-30400-00

$8.49

12

COVER, SPRING

401-15676-00-00

$7.99

13

SPRING TORSION 401156650000

90508-26041-00

$7.49

14

SPACER

401-15666-00-00

Unavailable

15

CIRCLIP(1EY)

99009-17400-00

$4.73

16

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

17

STOPPER, KICK SPRING

257-15668-00-00

Unavailable

18

SPRING, COMPRESSION

90501-14373-00

Unavailable
