1976 Yamaha MX125 (MX125C) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

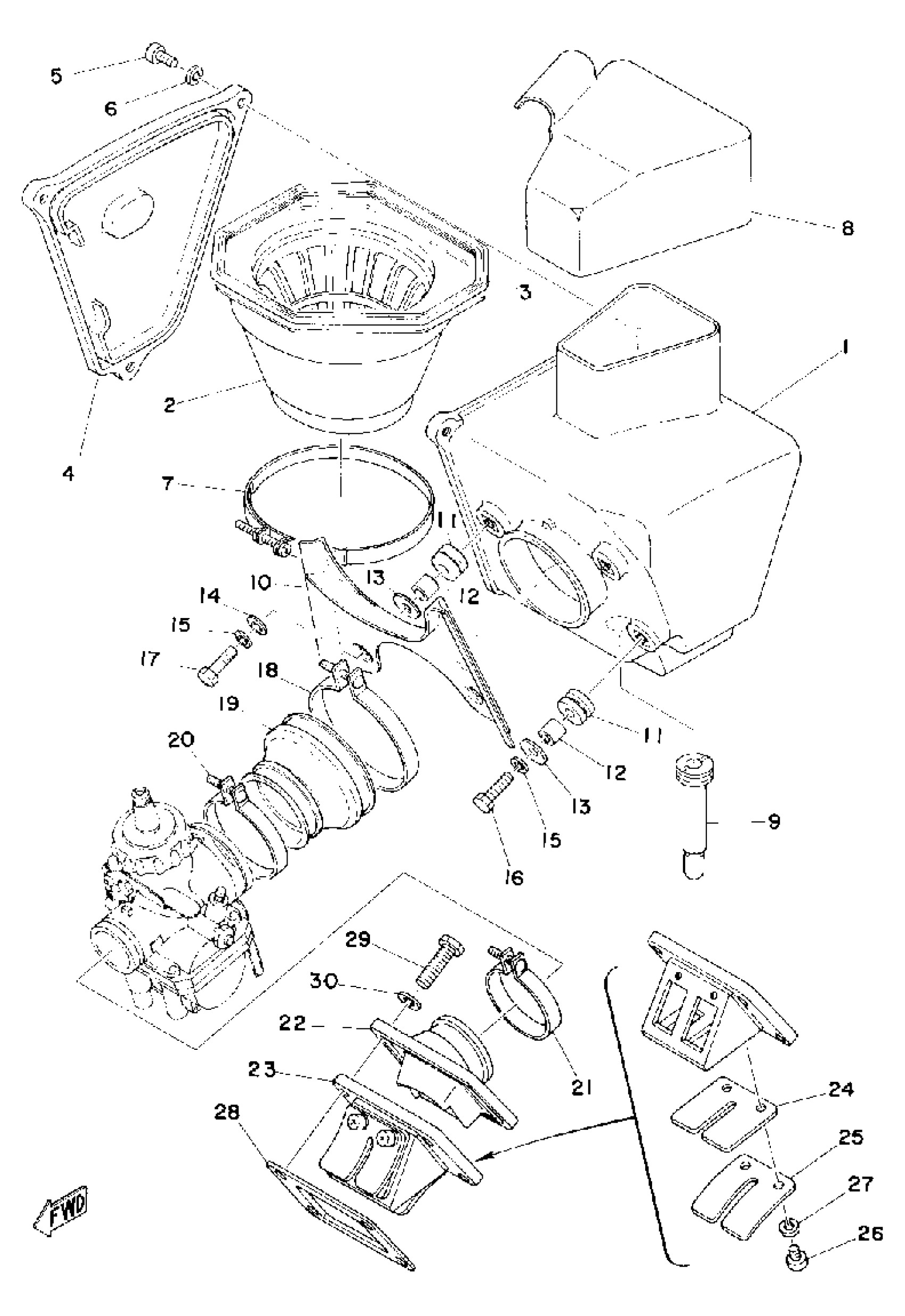

1976 Yamaha MX125 (MX125C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(565-14411-00-00)

1
Out of stock

2

ELEMENT ASSEMBLY

(565-14450-00-00)

1
Out of stock

3

SEAL

(565-14452-01-00)

1
Out of stock

4

CAP, CLEANER CASE 1

(565-14412-00-00)

1
Out of stock

5

SCREW, PAN HEAD

(92503-05012-00)

1
Out of stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

CLAMP, HOSE

(90460-55081-00)

1
Out of stock

8

COVER 2

(565-14418-00-00)

1
Out of stock

9

SEAL

(565-14457-00-00)

1
Out of stock

10

COVER 1

(565-14417-00-00)

1
Out of stock

11

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

12

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

WASHER, PLATE

90201-06M08-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock

19

JOINT, AIR CLNR 1

565-14453-00-00

1
Out of stock

20

BAND

90460-54062-00

1
Out of stock

21

CLAMP, HOSE (5H0)

90460-43179-00

—

$16.69

In stock

22

JOINT, CARBURETOR

537-13565-01-00

1
Out of stock

23

REED VALVE ASSY

10V-13610-01-00

—

$137.01

In stock

24

REED VALVE 1

10V-13613-01-00

—

$25.35

In stock

25

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

26

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

27

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

28

GASKET, VALVE SEAT

3TT-13621-00-00

—

$17.31

In stock

29

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
