1976 Yamaha MX125 (MX125C) Carburetor Diagram

← All diagrams

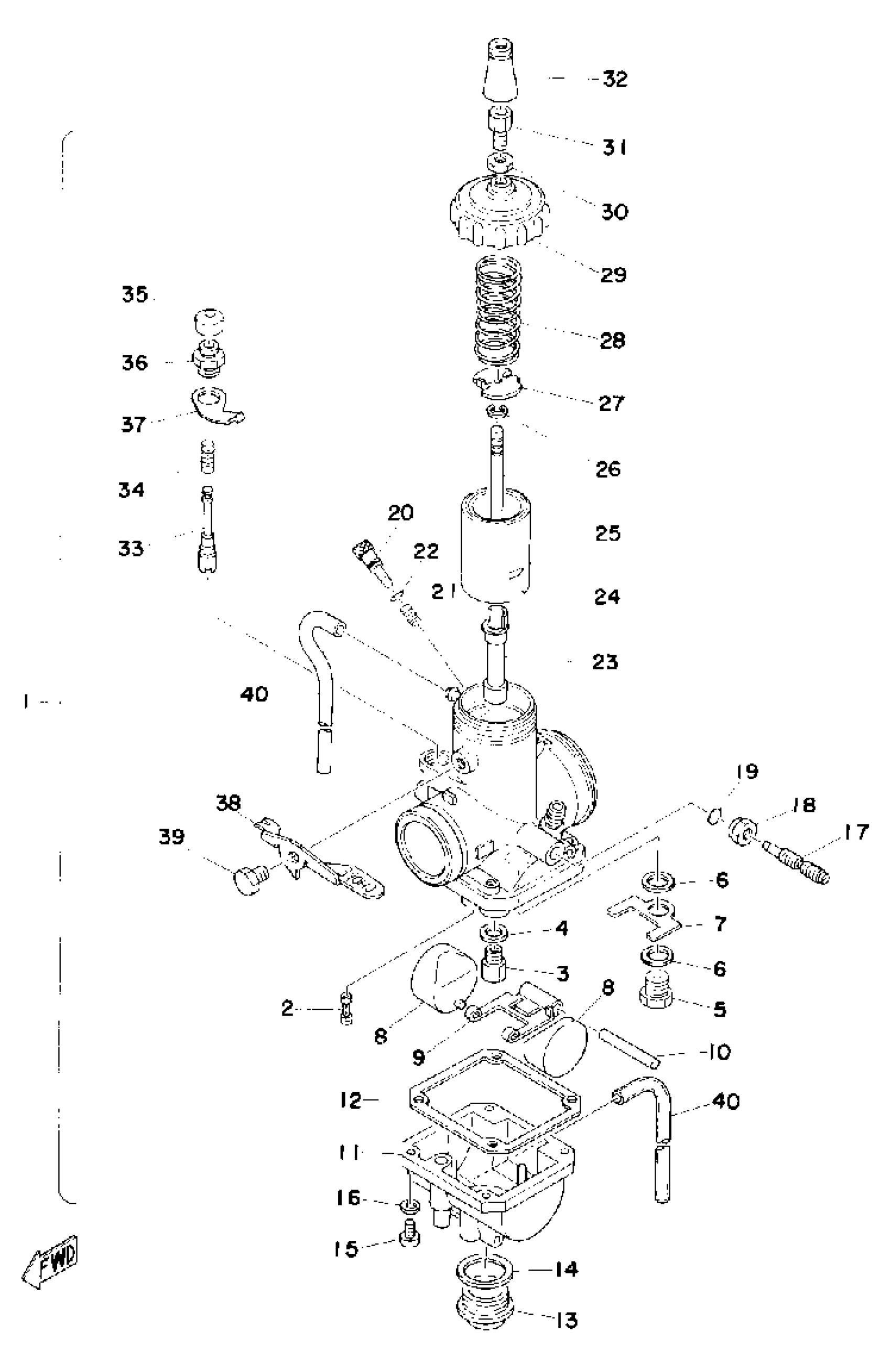

Find the part on the Carburetor diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha MX125 (MX125C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(565-14101-00-00)

1
Out of stock

2

. JET, PILOT #60

193-14142-60-00

1
Out of stock

3

JET, MAIN #180

137-14143-36-A1

—

$9.57

In stock

3

JET,MAIN #190

137-14143-38-A0

—
Out of stock

3

JET, MAIN #200

137-14143-40-A1

1
Out of stock

4

WASHER, MAIN JET

(346-14153-70-00)

1
Out of stock

5

VALVE SEAT ASSY

168-14190-28-00

1

$32.06

In stock

6

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

7

PLATE

(537-14146-00-00)

1
Out of stock

8

. FLOAT

280-14185-00-00

1
Out of stock

9

. ARM, FLOAT

280-14187-00-00

1
Out of stock

10

PIN, FLOAT

537-14186-00-00

1
Out of stock

11

BODY, FLOAT CHAMBER 1

(537-14181-00-00)

1
Out of stock

12

. GASKET, FLOAT CHAMBER

537-14184-00-00

1
Out of stock

13

. PLUG, SCREW

(278-14115-00-00)

1
Out of stock

14

WASHER,SCREW PLUG

278-14117-00-00

—

$7.80

In stock

15

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

. SCREW, THROTTLE

537-14122-00-00

1
Out of stock

18

. NUT, CABLE ADJUSTING

537-14161-00-00

1
Out of stock

19

O-RING

214-14147-00-00

—
Out of stock

20

AIR SCREW SET

10W-14104-00-00

—
Out of stock

21

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

22

O-RING (493-CARB.)

354-14147-00-00

—

$13.06

In stock

23

NOZZLE, MAIN

(278-14141-44-00)

1
Out of stock

24

VALVE, THROTTLE 1

(537-14112-30-00)

1
Out of stock

25

. NEEDLE

275-14116-01-00

1
Out of stock

26

CLIP

3FA-14137-00-00

—

$6.80

In stock

27

. SEAT, SPRING

537-14136-00-00

1
Out of stock

28

. SPRING, THROTTLE VALVE

537-14131-00-00

1
Out of stock

29

TOP, MIXING CHAMBER

(312-14158-00-00)

1
Out of stock

30

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

31

. SCREW, CABLE ADJUSTING

360-14124-20-00

1
Out of stock

32

CAP

(525-14169-00-00)

1
Out of stock

33

. PLUNGER, STARTER

174-14171-00-00

1
Out of stock

34

. SPRING, PLUNGER

500-14135-00-00

1
Out of stock

35

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

36

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

37

. PLATE, STARTER LEVER

537-14178-00-00

1
Out of stock

38

. LEVER, STARTER 1

537-14175-00-00

1
Out of stock

39

. BOLT, HOLDING

537-14162-00-00

1
Out of stock

40

. PIPE, OVERFLOW

310-14196-00-00

1
Out of stock
