1976 Yamaha MX125 (MX125C) Crank - Piston Diagram

← All diagrams

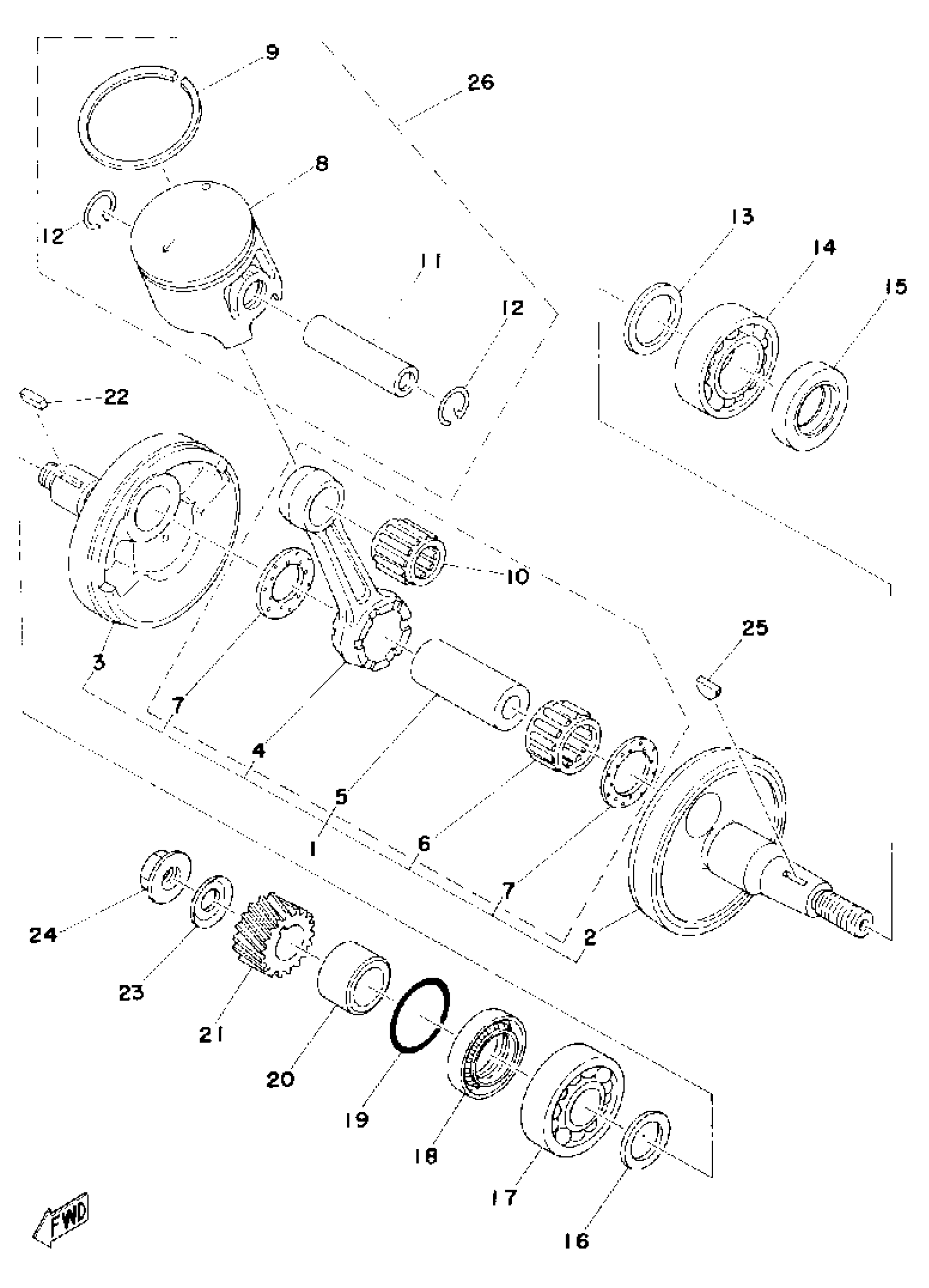

Find the part on the Crank - Piston diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha MX125 (MX125C) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(1G8-11400-01-00)

1
Out of stock

2

CRANK (L.H)

1W1-11412-01-00

—

$257.00

In stock

3

CRANK 2

(525-11422-00-00)

1
Out of stock

4

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

5

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

6

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

PISTON STD

537-11631-02-96

1
Out of stock

8

PISTON 1 O/S 0.25

537-11635-02-00

1
Out of stock

8

PISTON 2 O/S 0.50

537-11636-02-00

1
Out of stock

8

PISTON 3 O/S 0.75

537-11637-02-00

1
Out of stock

8

PISTON 4 O/S 1.00

537-11638-02-00

1
Out of stock

9

RING, PISTON STD

401-11611-01-00

1
Out of stock

9

RING, PISTON 1ST

401-11611-11-00

1
Out of stock

9

RING, PISTON 2ND

401-11611-21-00

1
Out of stock

9

RING, PISTON 3RD

401-11611-31-00

1
Out of stock

9

RING, PISTON 4TH

401-11611-41-00

1
Out of stock

10

BEARING, NEEDLE (24X)

93310-216L2-00

—

$28.54

In stock

11

PIN, PISTON

137-11633-10-00

—

$21.92

In stock

12

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

13

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

13

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

14

—

$35.25

In stock

15

OIL SEAL (5V6)

93103-25125-00

—

$23.23

In stock

16

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

16

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

16

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

16

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

16

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

16

SHIM, CRANK 1

136-11561-00-08

1
Out of stock

17

—

$54.91

In stock

18

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

19

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

20

COLLAR, DISTANCE (525)

90387-20488-00

—

$21.72

In stock

21

GEAR, PRI DRIVE

525-16111-00-00

1
Out of stock

22

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

23

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

24

NUT(1EE)

90179-12659-00

—

$5.37

In stock

25

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

26

PISTON KIT STD

(1G8-11630-00-00)

1
Out of stock

26

PISTON KIT 1ST

(1G8-11630-10-00)

1
Out of stock

26

PISTON KIT 2ND

(1G8-11630-20-00)

1
Out of stock

26

PISTON KIT 3RD

(1G8-11630-30-00)

1
Out of stock

26

PISTON KIT 4TH

(1G8-11630-40-00)

1
Out of stock
