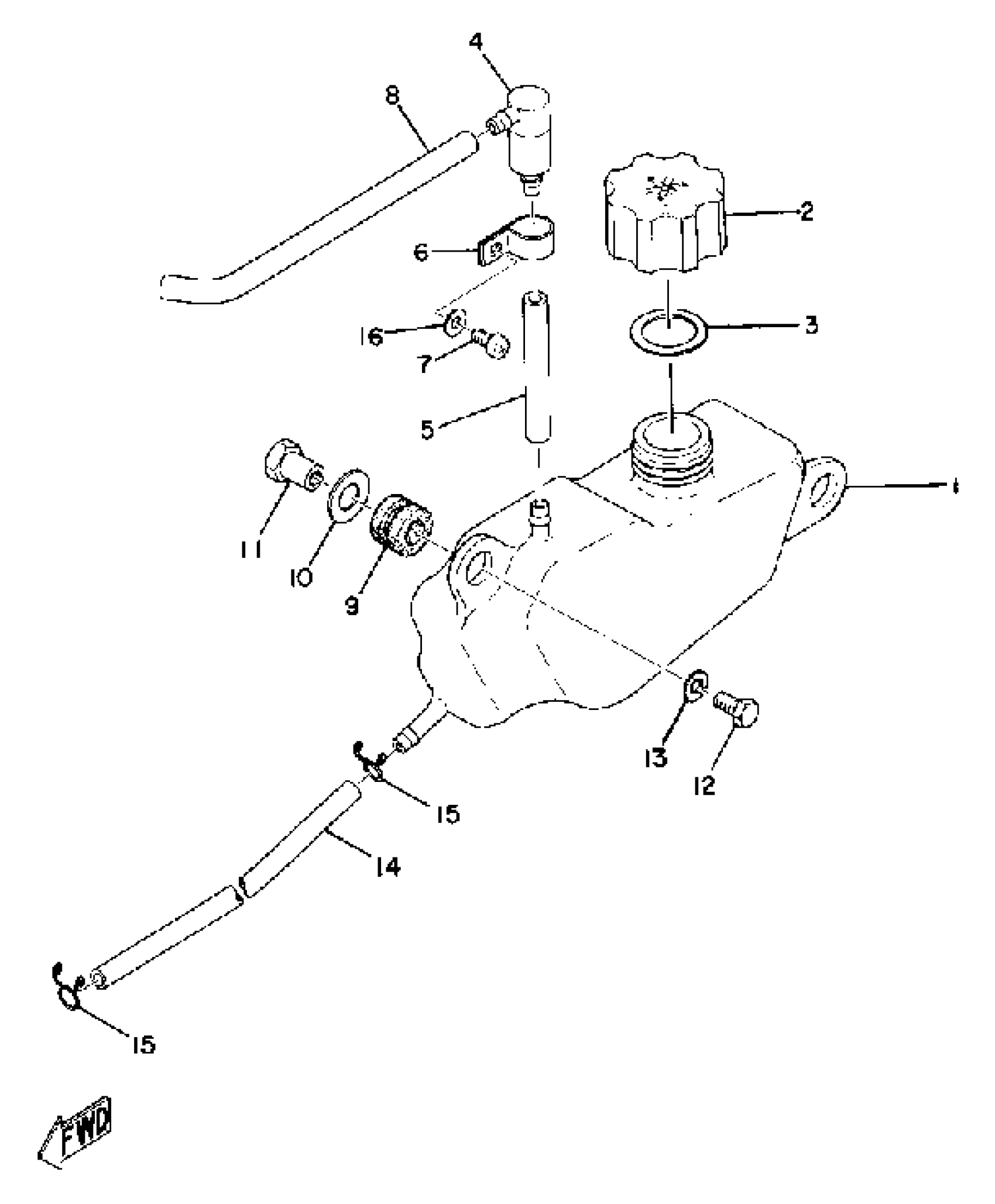

Yamaha MX125A (MX125) 1974 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

(402-21751-00-00)

Unavailable

2

BODY, CAP

296-21771-62-00

Unavailable

3

GASKET, CAP

296-21772-00-00

Unavailable

4

BREATHER

(363-21744-00-00)

Unavailable

5

PIPE, OIL

(402-21766-00-00)

Unavailable

6

CLAMP

(90461-08008-00)

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

PIPE, OIL TNK BRTHR

(402-21745-00-00)

Unavailable

9

GROMMET 839774310000

90480-14023-00

$7.49

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT 136217130000

90179-06034-00

$7.49

11

NUT, SPEC''L SHAPE

(90179-06136-00)

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

HOSE (L420)

90445-092K1-00

$12.49

14

HOSE (L420)

90445-092K1-00

$12.49

15

CLIP 101235600

90467-08003-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable
