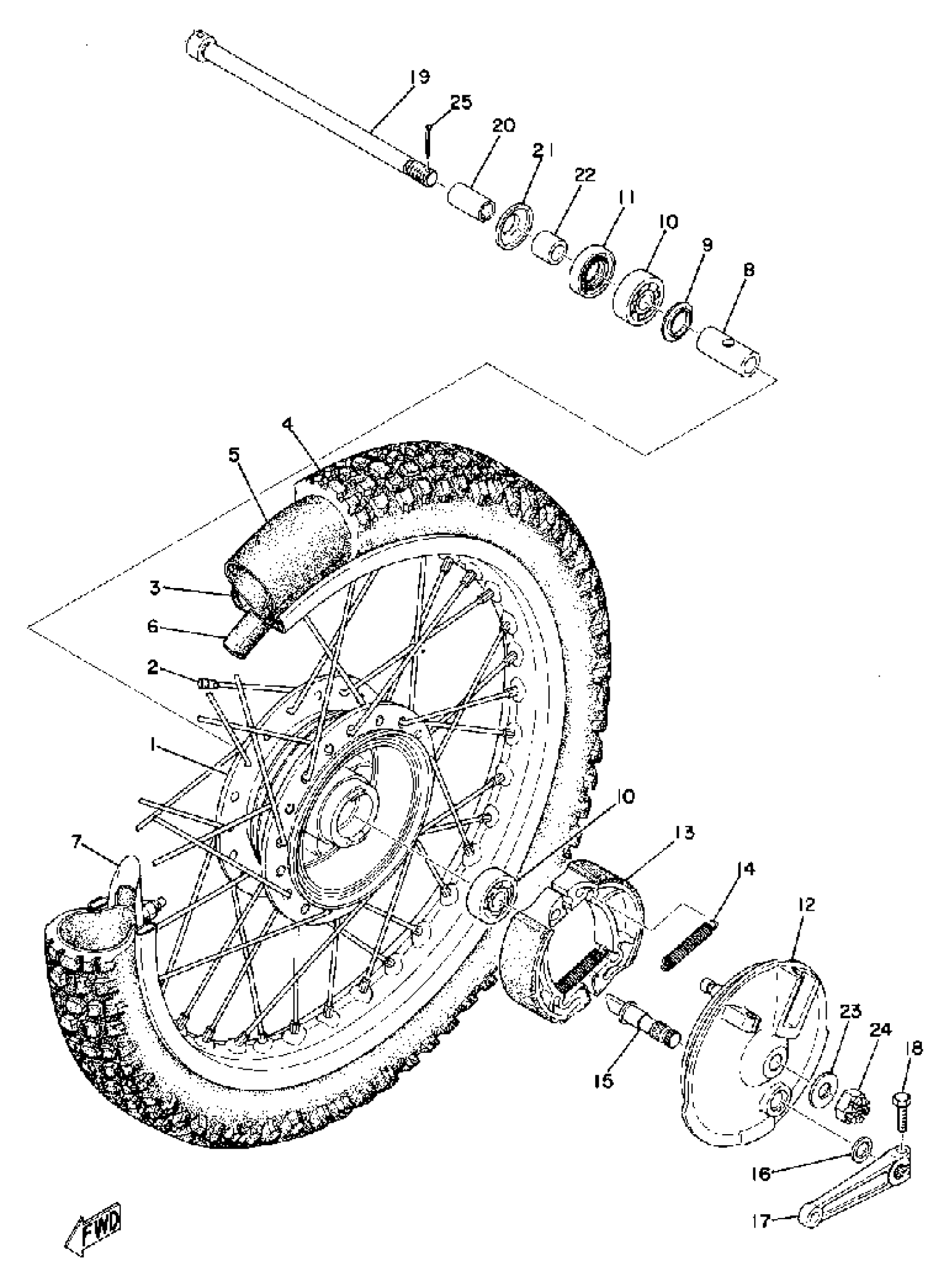

Yamaha MX125A (MX125) 1974 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(248-25111-00-38)

Unavailable

1

SPOKE SET, INNER 1

(248-25196-90-00)

Unavailable

2

SPOKE SET, FRONT

(248-25104-00-00)

Unavailable

2

FRONT WHL ASSEMBLY

(251-25100-00-00)

Unavailable

3

SPOKE SET, FRONT

345-25104-01-00

Unavailable

3

RIM 1.60X21

94416-21223-00

Unavailable

3

RIM 1.60X21

94416-21265-00

Unavailable

4

SPOKE SET, INNER 1

(345-25196-90-00)

Unavailable

4

275X21 BS M7

(94127-21216-00)

Unavailable

5

SPOKE SET, OUTER 1

(345-25197-90-00)

Unavailable

5

TUBE (2.75-21)(2YY)

94227-21293-00

$35.99

6

BAND, RIM

(94327-21024-00)

Unavailable

7

SPACER, BEAD

1T1-25194-00-00

Unavailable

8

SPACER

90560-12138-00

Unavailable

9

SPACER

90560-12138-00

Unavailable

10

BEARING

93306-30102-00

Unavailable

11

OIL SEAL (18X37X8-109)

93102-18008-00

Unavailable

12

PLATE, BRAKE SHOE

(402-25121-00-00)

Unavailable

13

BRAKE SHOE SET-2 PCS

326-W2536-00-00

Unavailable

14

SPRING, TENSION (566).

90506-16150-00

Unavailable

15

CAM SHAFT

122-25351-02-00

Unavailable

16

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

17

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

SHAFT, WHEEL

401-25181-01-00

Unavailable

20

COLLAR

90387-12099-00

Unavailable

21

COVER, HUB DUST

2K5-25118-00-00

Unavailable

22

COLLAR 1832518300

90387-12095-00

Unavailable

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

NUT CASTLE(481)

90171-12005-00

Unavailable

25

PIN, COTTER

91490-30030-00

Unavailable
