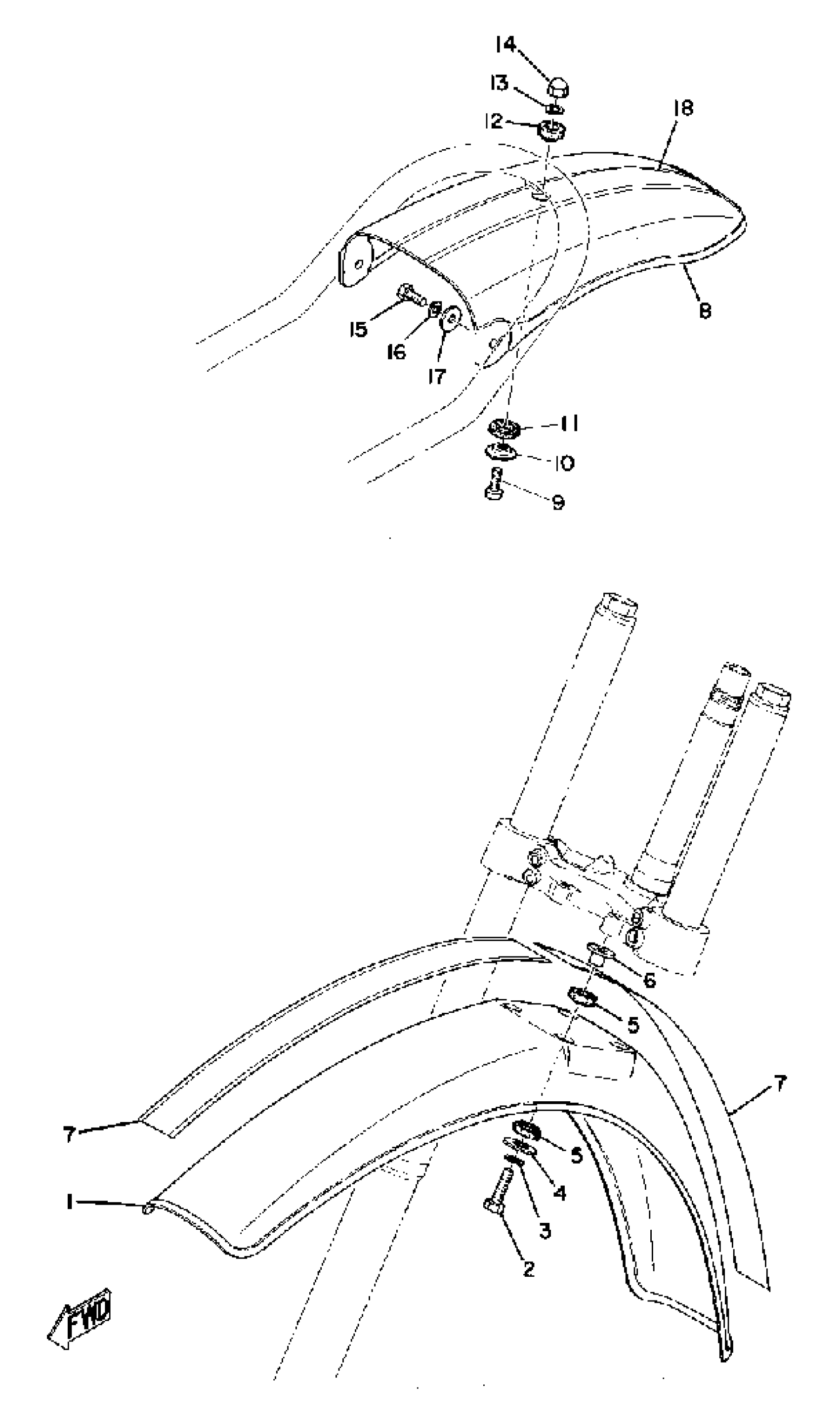

Yamaha MX125A (MX125) 1974 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT(JF7)

97080-06030-00

$5.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

MOLD, FENDER

(402-21519-00-00)

Unavailable

8

FENDER, REAR

(402-21611-00-00)

Unavailable

8

FENDER, REAR

(453-21611-00-00)

Unavailable

9

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

10

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

11

DAMPER 2

(322-21639-00-00)

Unavailable

12

DAMPER, FENDER

322-21541-00-00

$7.99

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT (J17)

95380-06800-00

$8.49

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE

90201-06380-00

$0.60

18

STRIPE, REAR FENDER

(402-21619-00-00)

Unavailable
