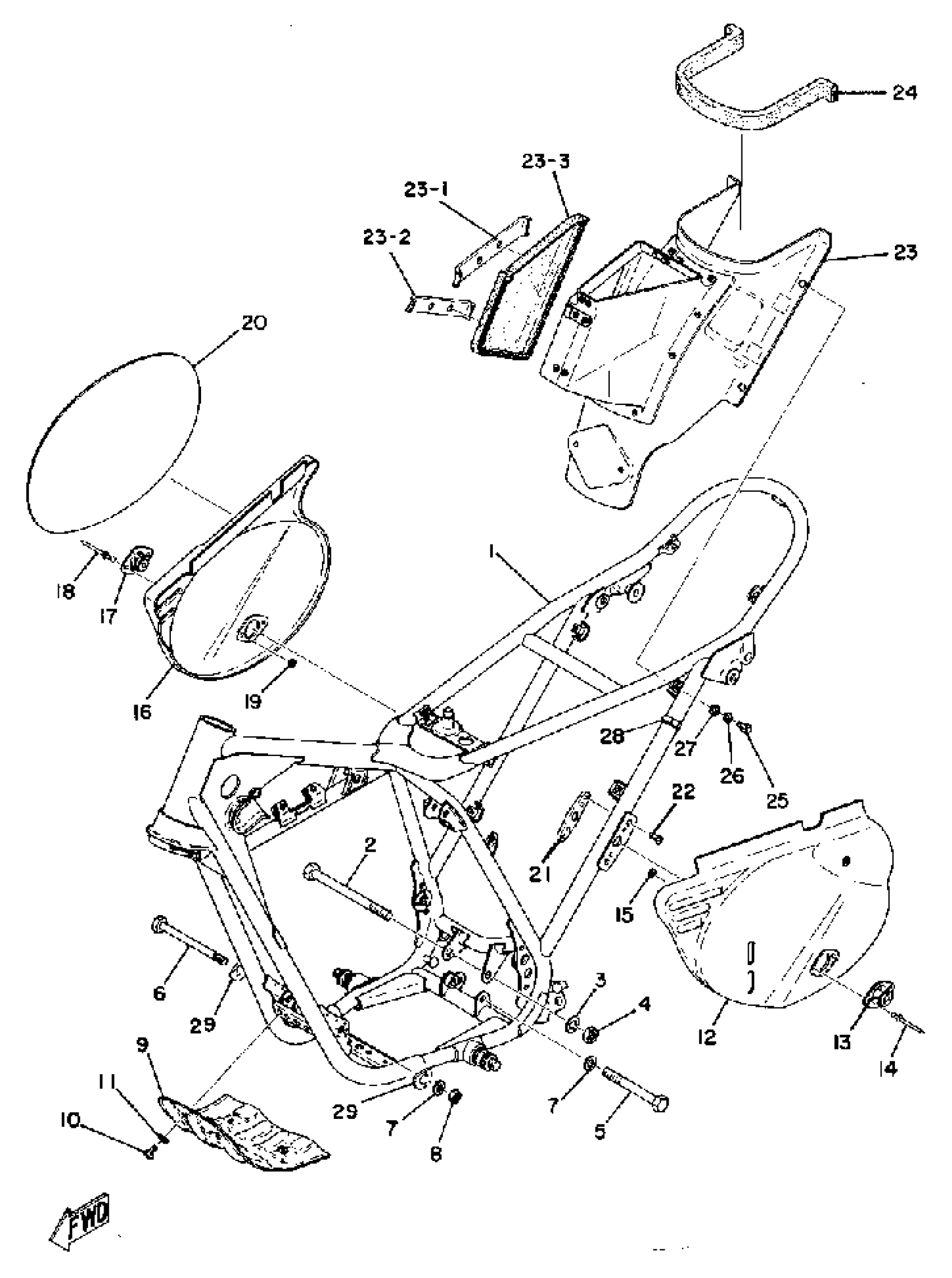

Yamaha MX125A (MX125) 1974 FRAME - SIDE COVER Diagram

#

Description
Price

1

FRAME

(401-21110-01-33)

Unavailable

1

. PATCH 1

402-21256-00-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

402-21757-00-00

Unavailable

2

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

2

BOLT

90109-08387-00

Unavailable

2

SCREW, FLAT

98707-04010-00

$8.49

3

. SEAL

402-21269-00-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

NUT(6L2)

95333-08600-00

$2.49

5

BOLT

90105-10037-00

Unavailable

6

BOLT

90105-08024-00

$7.49

6

BOLT, FLANGE

95817-08115-00

$8.49

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

NUT, U

95617-08100-00

$9.49

9

PROTECTOR, ENGINE

(401-21471-00-90)

Unavailable

10

BOLT (661)

97013-06012-00

Unavailable

11

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

12

COVER, SIDE 1

(401-21711-00-02)

Unavailable

12

COVER, SIDE 1

(401-21711-00-04)

Unavailable

13

. NO LONGER AVAILABLE

363-21189-00-00

Unavailable

14

RIVET,BLIND

90267-40080-00

Unavailable

15

WASHER

90201-04015-00

Unavailable

16

COVER, SIDE 2

(402-21721-00-00)

Unavailable

16

COVER, SIDE 2

(453-21721-00-00)

Unavailable

17

FASTENER, SIGN

(363-21189-00-00)

Unavailable

18

RIVET,BLIND

90267-40080-00

Unavailable

19

WASHER

90201-04015-00

Unavailable

20

BOX, AIR CLEANER

(401-21240-02-00)

Unavailable

21

NUT, PLATE

363-21736-00-00

Unavailable

23

BOX, AIR CLEANER

(401-21240-02-00)

Unavailable

24

DAMPER

(401-21746-00-00)

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLATE

90201-06380-00

Unavailable

28

DAMPER, MUFFLER

(276-14747-00-00)

Unavailable

29

WASHER (401)

90209-08050-00

Unavailable
