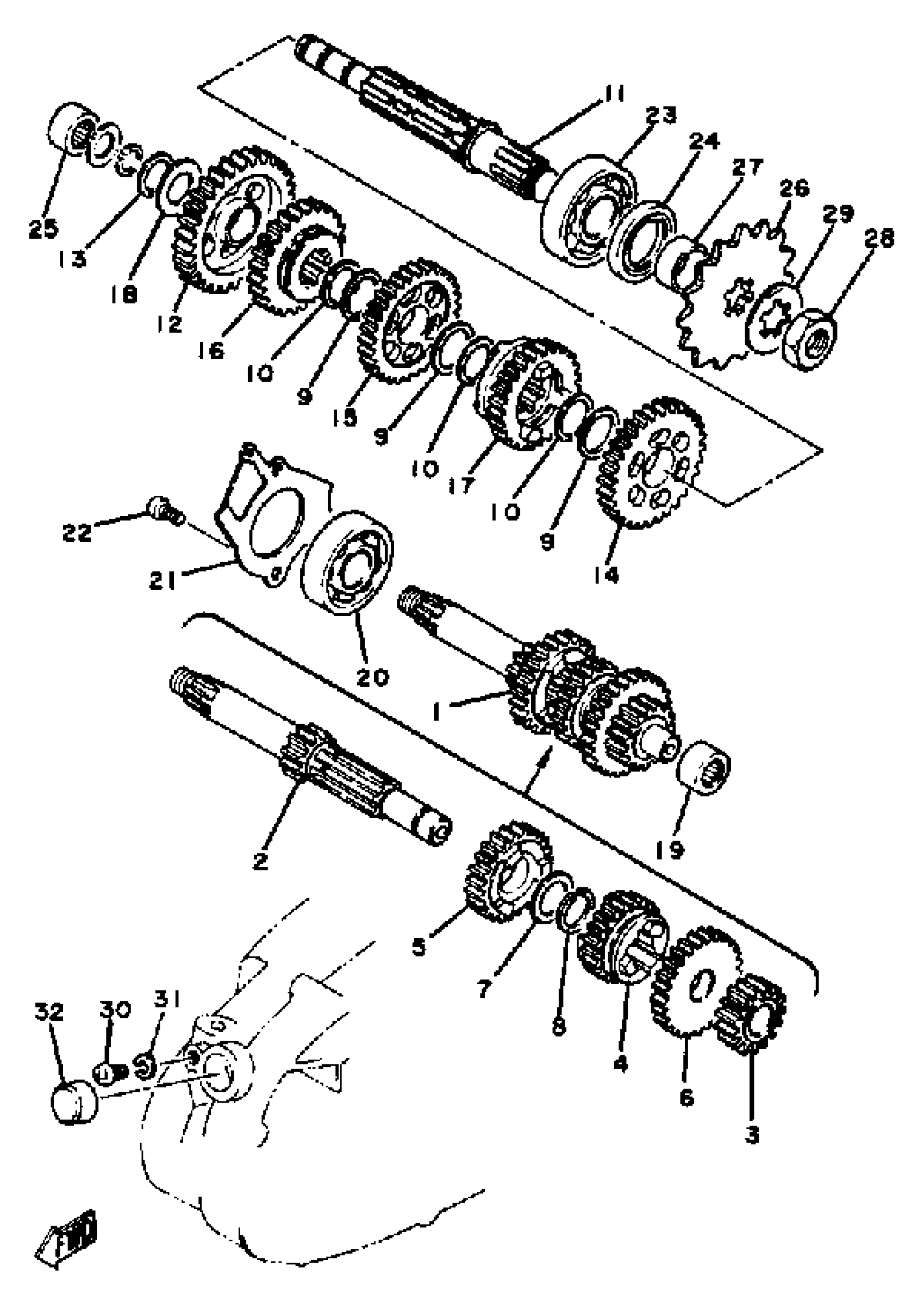

Yamaha MX100H (MX100) 1981 TRANSMISSION MX100H - J - K Diagram

#

Description
Price

1

MAIN AXLE

(558-17410-00-00)

Unavailable

2

. AXLE, MAIN (11T)

558-17411-00-00

Unavailable

3

GEAR, 2ND PINION

437-17121-02-00

Unavailable

4

. GEAR, 3RD PINION (19T)

427-17131-00-00

Unavailable

5

GEAR, 4TH PINION

(437-17141-00-00)

Unavailable

6

GEAR, 5TH PINION (25T)

437-17151-00-00

Unavailable

7

WASHER PLATE 132172160000

90201-20266-00

$9.49

8

CIRCLIP (525)

93410-20038-00

$3.76

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

CIRCLIP (525)

93410-20038-00

$3.76

11

AXLE, DRIVE

558-17421-00-00

Unavailable

12

. GEAR, 1ST WHEEL

248-17211-00-00

Unavailable

13

CIRCLIP

93440-15012-00

$8.49

14

GEAR, 2ND WHEEL

427-17221-00-00

$45.99

15

GEAR, 3RD WHEEL

427-17231-00-00

Unavailable

16

GEAR,4TH WHEEL

4EG-17241-00-00

Unavailable

17

GEAR, 5TH WHEEL (20T)

437-17251-00-00

Unavailable

18

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

19

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

20

BEARING(4HM)

93306-30317-00

Unavailable

21

PLATE, COVER

1G8-17471-00-00

Unavailable

22

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

23

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

24

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

25

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

26

SPROCKET,DRIVE 13T(5171746131)

93812-13022-00

Unavailable

26

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

26

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

Unavailable

27

COLLAR (525)

90387-20491-00

Unavailable

28

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

29

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

30

SCREW PAN HEAD

98580-06010-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

PLUG 363174810000

90338-20023-00

Unavailable
