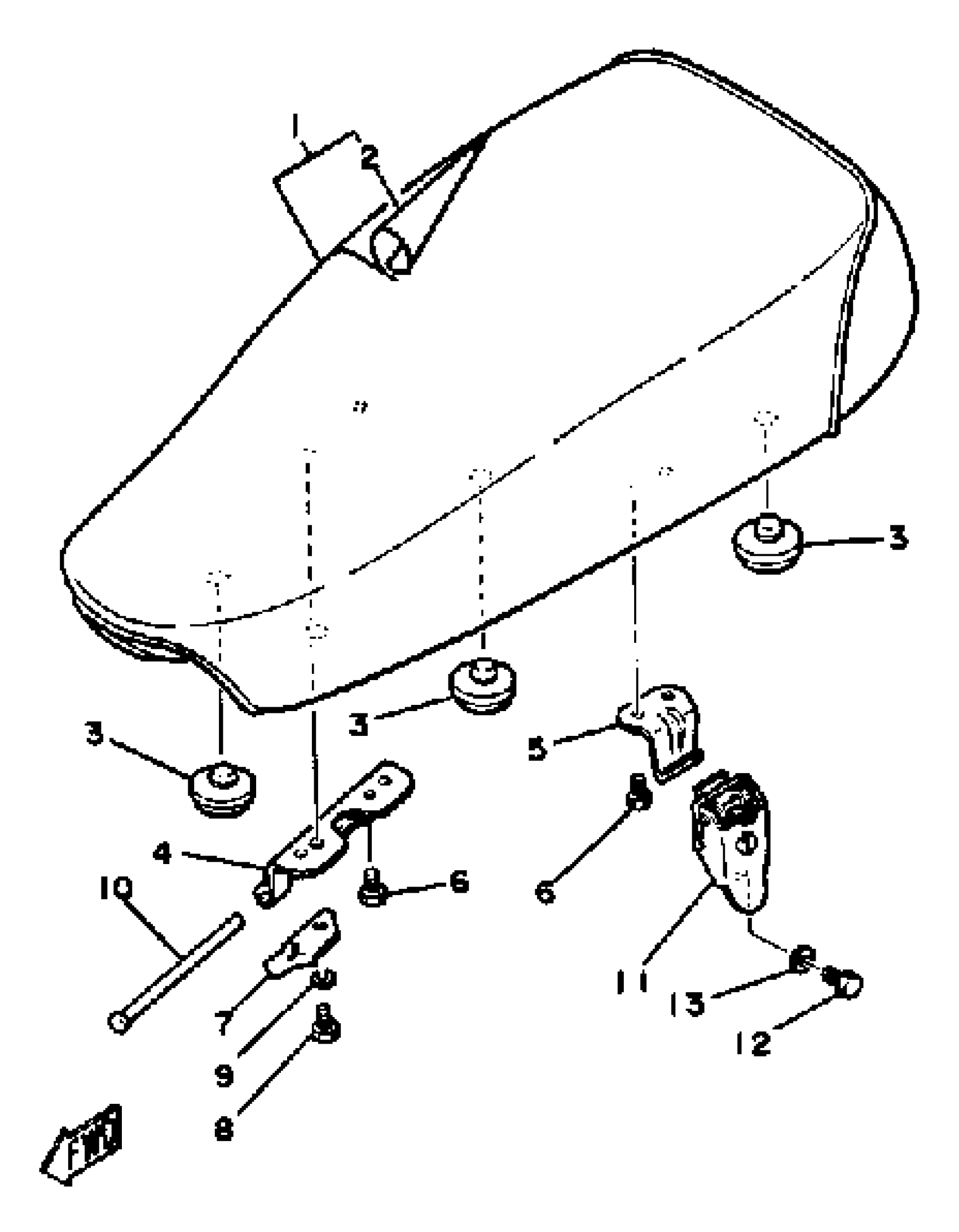

Yamaha MX100H (MX100) 1981 SEAT MX100H - J - K Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

1T9-W2471-01-00

Unavailable

2

. COVER, SINGLE SEAT

1T9-24711-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

HINGE, SEAT

538-24726-00-00

Unavailable

5

BRACKET, SEAT

278-24728-00-00

Unavailable

6

BOLT (583)

90101-06304-00

$7.49

7

STOPPER

1T9-24768-00-00

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

PIN

1K8-24774-00-00

Unavailable

11

SEAT LEVER ASSEMBLY

214-24708-00-00

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, PLAIN (646)

92990-06600-00

$2.80
