LIGHTING KIT (TAILLIGHT) MX100H - J - K

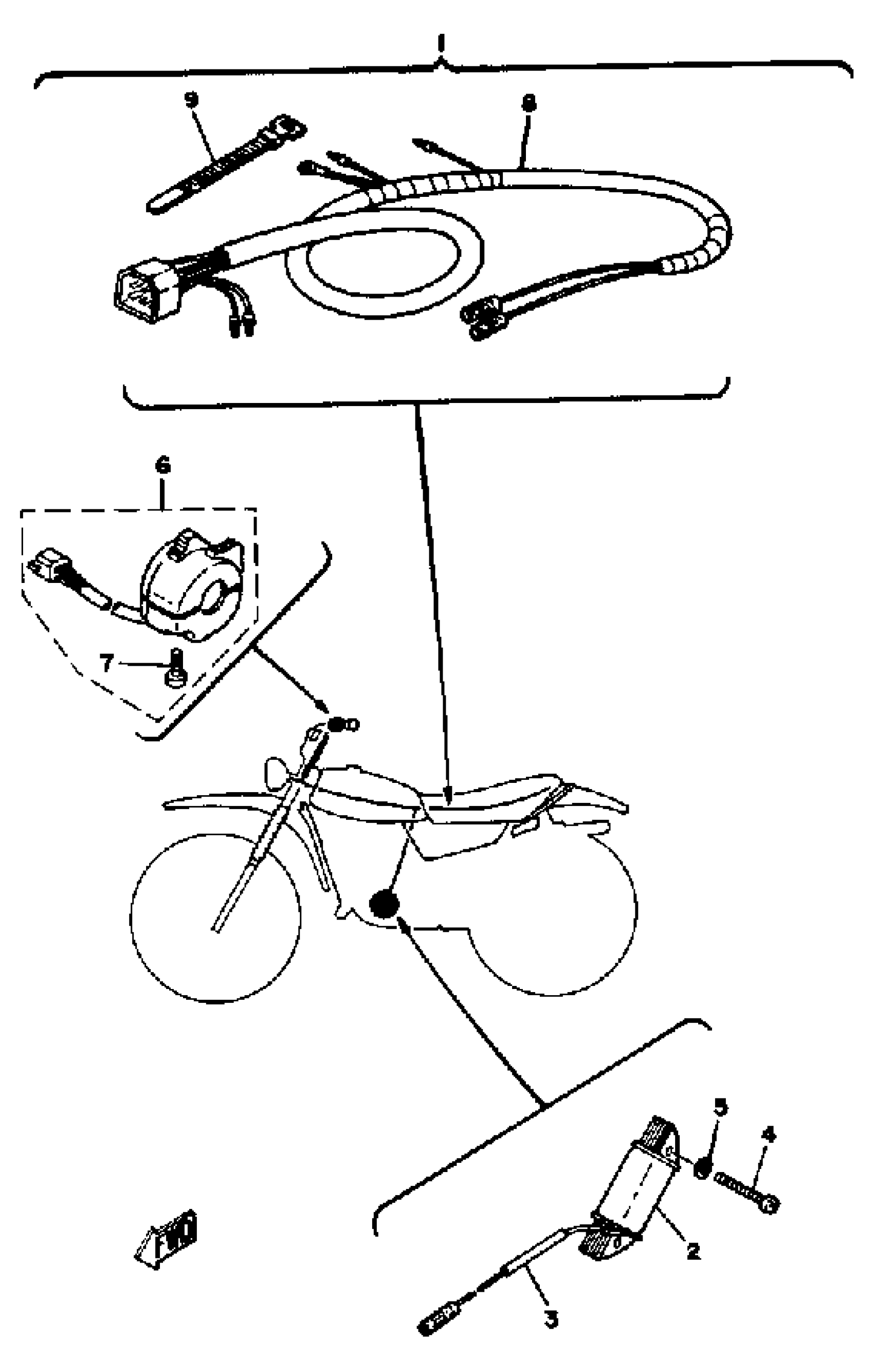

Yamaha MX100H (MX100) 1981 LIGHTING KIT (TAILLIGHT) MX100H - J - K Diagram
#
1
MX100 LIGHTING KIT
(ACC-01100-60-00)
Unavailable
2
COIL, LIGHTING 1
(3M2-85513-20-00)
Unavailable
3
LEAD WIRE ASSEMBLY
(3M2-85515-21-00)
Unavailable
4
SCREW, PAN
98507-04030-00
Unavailable
6
SWITCH, HANDLE 3
1W2-83973-00-98
Unavailable
7
SCREW, PAN HEAD(41N)
90157-05057-00
Unavailable
7
SCREW, PAN HEAD
98580-05020-00
Unavailable
8
WIRE HARNESS ASSEMBLY
(3T0-82590-90-00)
Unavailable
10
UNAVAILABLE IN PRICE BOOK
(1W2-84110-60-00)
Unavailable
11
RIM, HEADLIGHT
(1W2-84115-60-00)
Unavailable
12
. COVER, HEADLIGHT
1W2-84144-60-00
Unavailable
13
. LENS ASSEMBLY
3R8-84120-60-00
Unavailable
14
. BULB, HL 6V25/25W
527-84114-09-XX
Unavailable
15
. SOCKET
1W2-84112-60-00
Unavailable
16
. SPRING, REFLECTOR
1W2-84324-60-00
Unavailable
17
BODY ASSEMBLY, HEADLIGHT
1W2-84130-60-00
Unavailable
18
COLLAR, BODY FTNG
(1W2-84145-60-00)
Unavailable
19
. COLLAR, BODY FTNG
1L9-84338-60-00
Unavailable
20
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
21
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
22
DAMPER, HDLT STAY
1W2-84143-00-00
Unavailable
23
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
24
NUT(6L2)
95333-08600-00
Unavailable
25
STAY, HEADLIGHT 1
(3M1-84118-00-00)
Unavailable
26
STAY, HEADLIGHT 2
(3M1-84119-00-00)
Unavailable
27
SCREW PAN HEAD
98580-06020-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
NUT, CROWN
95303-08800-00
Unavailable
33
TAILLIGHT ASSEMBLY
434-84500-64-00
Unavailable
34
LENS, TAIL LAMP
434-84521-69-00
Unavailable
35
RIM,TAILLIGHT
5AU-83323-01-00
Unavailable
36
BULB,TAIL LAMP(6V17/5.3W)
122-84514-30-00
Unavailable
37
. CORD, TAILLIGHT
434-84517-61-00
Unavailable
38
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
39
SCREW, LENS FITTING
(434-84524-62-00)
Unavailable
40
. BRACKET, TAILLIGHT
434-84519-64-00
Unavailable
41
TAILLIGHT ASSEMBLY
434-84500-64-00
Unavailable
42
COLLAR
(434-84557-60-00)
Unavailable
43
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
44
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
45
NUT, HEXAGON (663)
95380-05600-00
Unavailable
46
CLAMP
(90462-08003-00)
Unavailable
47
GROMMET (1E6)
90480-15058-00
Unavailable
47
GROMMET (1E6)
90480-15058-00
Unavailable
