1981 Yamaha MX100 (MX100H) Front Fork MX100H - J - K Diagram

← All diagrams

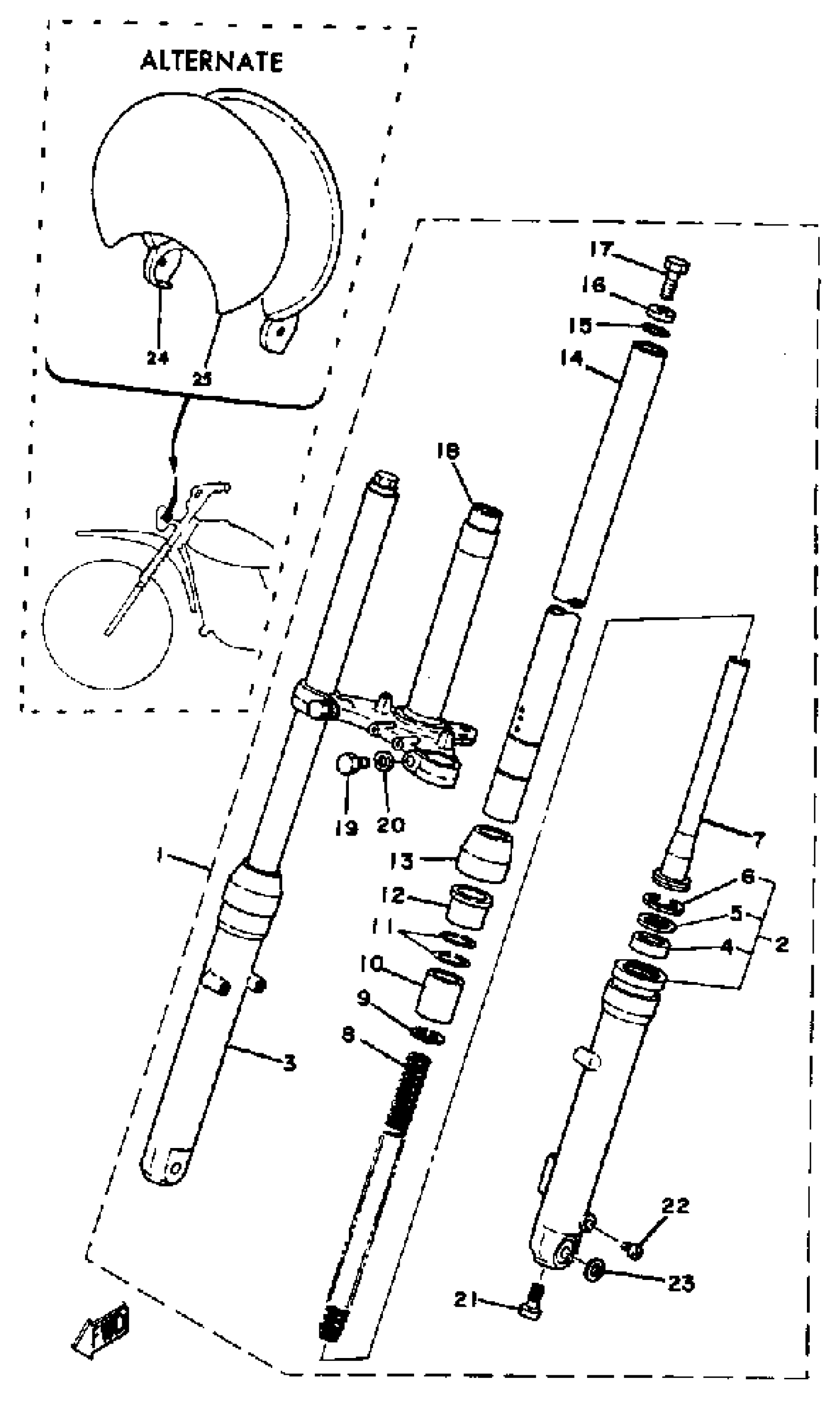

Find the part on the Front Fork MX100H - J - K diagram for your 1981 Yamaha MX100 (MX100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX100 (MX100H) Front Fork MX100H - J - K Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1T9-23101-00-00)

1
Out of stock

2

. TUBE, OUTER (LEFT)

1T9-23126-00-35

1
Out of stock

3

TUBE, OUTER 2

(462-23136-02-35)

1
Out of stock

4

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

5

. WASHER, OIL SEAL

462-23146-02-00

1
Out of stock

6

. CLIP, OIL SEAL

462-23156-02-00

1
Out of stock

7

. CYLINDER COMP, FRONT FORK

462-23170-02-00

1
Out of stock

8

. SPRING, FRONT FORK

1T9-23141-00-00

1
Out of stock

9

. CIRCLIP

462-23183-02-00

1
Out of stock

10

. PISTON, FRONT FORK

462-23171-02-00

1
Out of stock

11

. RING, PISTON

462-23157-02-00

1
Out of stock

12

. METAL, SLIDE 1

462-23125-02-00

1
Out of stock

13

SEAL,DUST

462-23144-02-00

1
Out of stock

14

TUBE,INNER 1

3UL-23124-00-00

1
Out of stock

15

GASKET

462-23114-02-00

1
Out of stock

16

. WASHER, CAP

276-23112-50-00

1
Out of stock

17

BOLT, CAP

205-23111-40-00

—

$9.55

In stock

18

UNDER BRACKET COMP.

1T9-23340-00-90

1
Out of stock

19

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

20

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

21

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

22

.. PLUG, DRAIN

451-23119-01-00

1
Out of stock

23

. WASHER, SPECIAL

462-23392-02-00

1
Out of stock

24

PLATE, NUMBER

1W2-23485-00-00

1
Out of stock

25

EMBLEM

1W2-23395-00-00

1
Out of stock
