CRANKSHAFT - PISTON MX100H - J - K

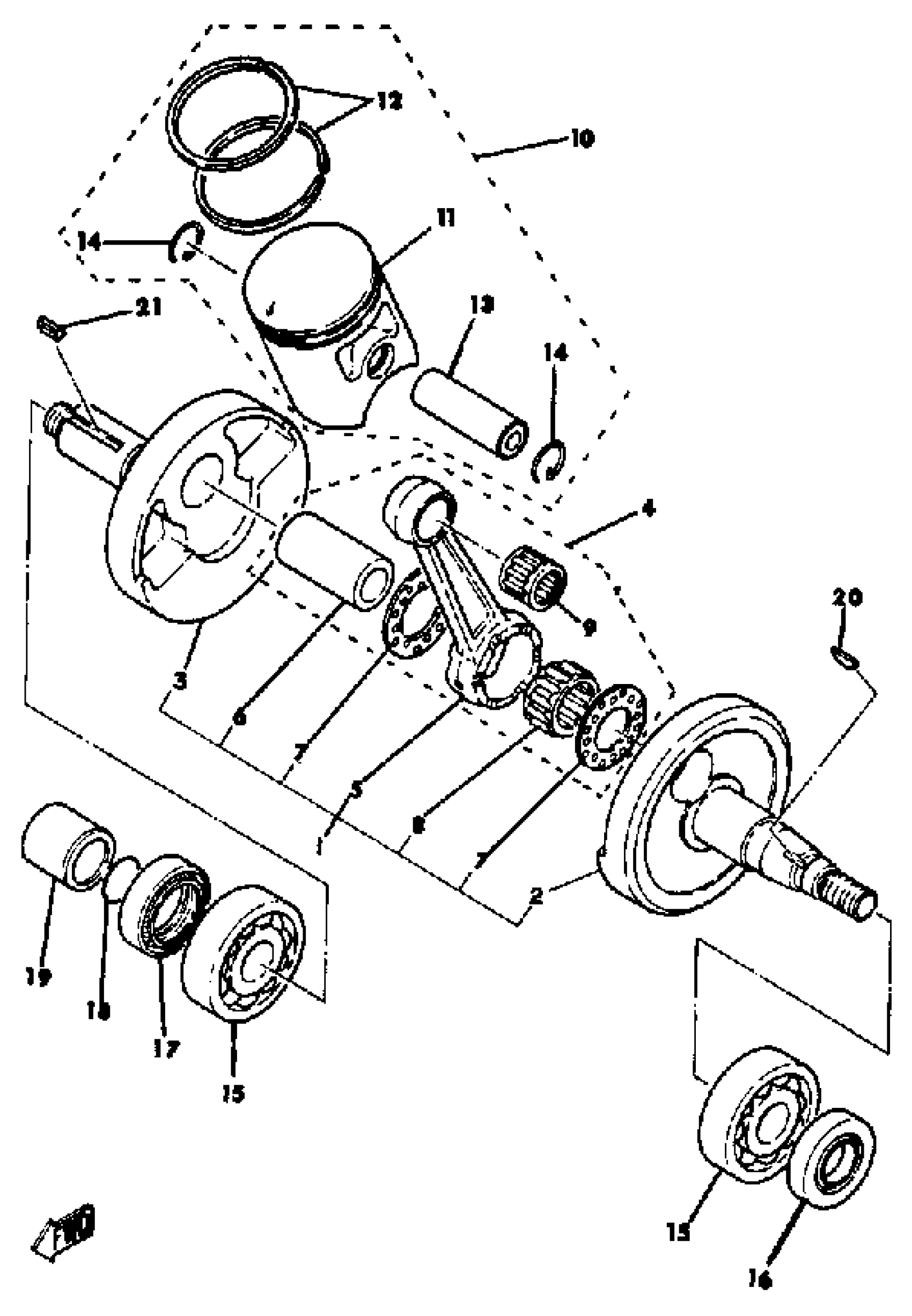

Yamaha MX100H (MX100) 1981 CRANKSHAFT - PISTON MX100H - J - K Diagram
#
1
CRANKSHAFT ASSEMBLY
558-11400-00-00
Unavailable
2
CRANK (L.H)
558-11412-00-00
Unavailable
3
CRANK 2
(558-11422-00-00)
Unavailable
4
CONNECTING ROD KIT
1M7-11650-00-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
BRG,CYL-CAL ROLLER 16G TM
93310-422E7-00
Unavailable
10
PISTON KIT STD
558-11630-00-00
Unavailable
10
PISTON KIT 1ST
558-11630-10-00
Unavailable
10
PISTON KIT 2ND
558-11630-20-00
Unavailable
10
PISTON KIT 3RD
558-11630-30-00
Unavailable
10
PISTON KIT 4TH
558-11630-40-00
Unavailable
11
. PISTON STD
558-11631-01-96
Unavailable
11
PISTON 1 O/S 0.25 (52.25MM 1ST O.S.)
558-11635-01-00
Unavailable
11
PISTON 2 O/S 0.50 (52.50MM 2ND O.S.)
558-11636-01-00
Unavailable
11
PISTON 3 O/S 0.75 (52.75MM 3RD O.S.)
558-11637-01-00
Unavailable
11
PISTON 4 O/S 1.00 (53.00MM 4TH O.S.)
558-11638-01-00
Unavailable
12
. PISTON RINGSET STD
558-11610-00-00
Unavailable
12
PISTON RINGSET 1ST (1ST O.S.)
558-11610-10-00
Unavailable
12
PISTON RINGSET 2ND (2ND O.S.)
558-11610-20-00
Unavailable
12
PISTON RINGSET 3RD (3RD O.S.)
558-11610-30-00
Unavailable
12
PISTON RINGSET 4TH (4TH O.S.)
558-11610-40-00
Unavailable
13
PIN, PISTON
131-11633-00-00
Unavailable
14
CIRCLIP 131116340000
93450-15023-00
Unavailable
15
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
16
OIL SEAL(4BA)
93102-20447-00
Unavailable
17
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
18
O-RING(3KX)
93210-180A6-00
Unavailable
19
COLLAR, DISTANCE 2761613600
90387-20175-00
Unavailable
20
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
21
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
