Description

Price

1

CRANKCASE 1

1T9-15111-00-00

Unavailable

2

SCREW PAN HEAD

98580-06040-00

$8.49

3

SCREW PAN HEAD

98580-06550-00

$8.49

4

SCREW, BIND (JH1)

98580-06560-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

PIN, DOWEL

99530-14016-00

$3.80

7

CRANKCASE 2

1T9-15121-01-00

Unavailable

8

BREATHER

583-15371-00-00

$6.99

9

HOSE (L200)

90445-07176-00

$7.60

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

GASKET (3JD1)

90430-12207-00

$7.99

12

PLUG, STRAIGHT SCREW

90340-12004-00

Unavailable

13

WASHER, PLATE

90201-12790-00

$9.49

14

COVER, SHIFTER

437-15419-01-00

$82.99

15

RING, RUBBER

401-15449-00-00

$29.99

16

PIN,DOWEL (603)

93603-12007-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

HOLDER (R.H)

304-15128-00-00

Unavailable

19

SCREW, PAN

98507-08010-00

Unavailable

20

HOLDER, CLUTCH CABLE

401-15441-02-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

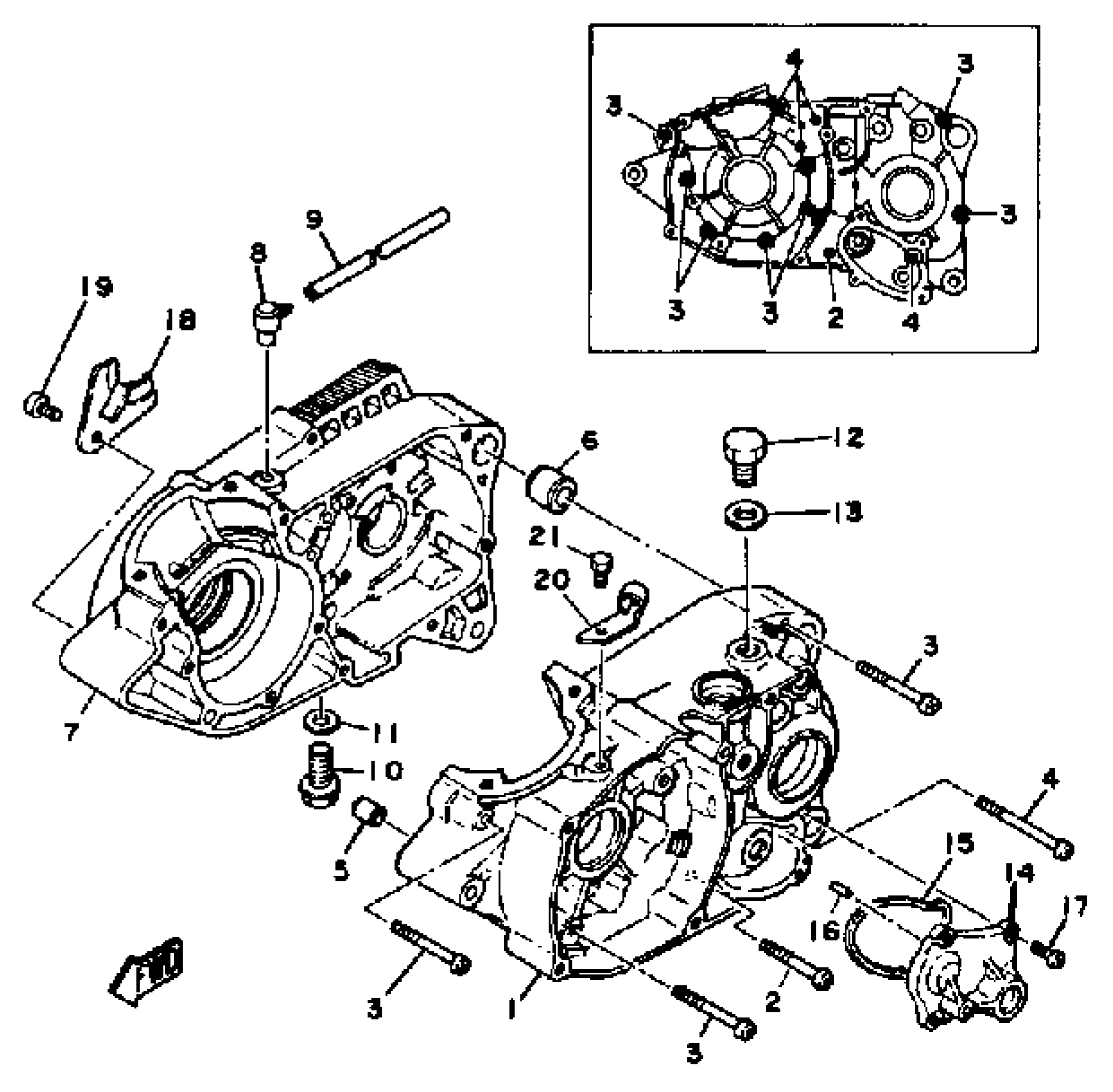

Yamaha MX100H (MX100) 1981 CRANKCASE MX100H - J - K Diagram

CRANKCASE 1

SCREW PAN HEAD

SCREW PAN HEAD

SCREW, BIND (JH1)

PIN, DOWEL(3VD)

PIN, DOWEL

CRANKCASE 2

BREATHER

HOSE (L200)

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

PLUG, STRAIGHT SCREW

WASHER, PLATE

COVER, SHIFTER

RING, RUBBER

PIN,DOWEL (603)

SCREW, PAN

HOLDER (R.H)

SCREW, PAN

HOLDER, CLUTCH CABLE

BOLT (661)
