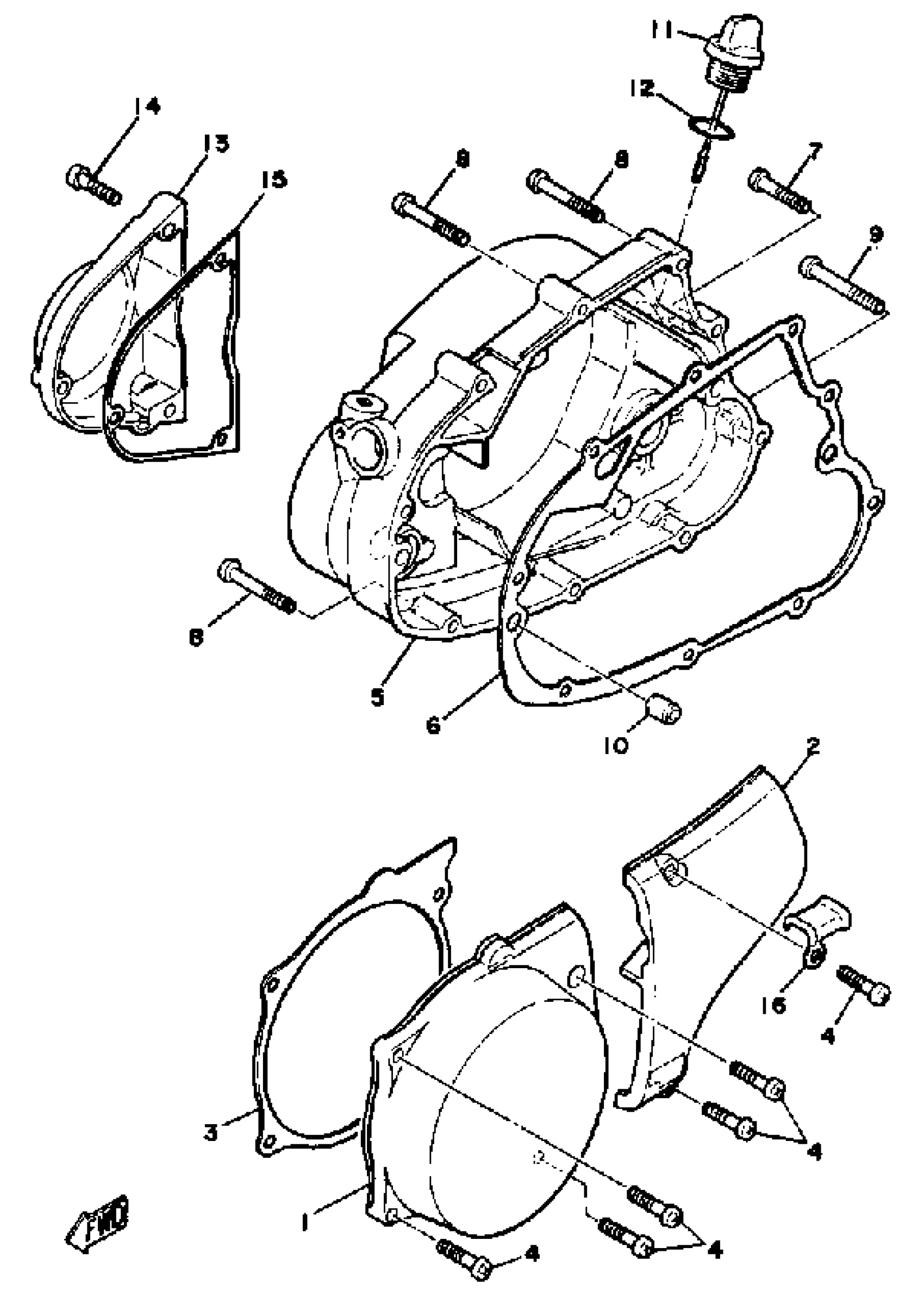

Yamaha MX100H (MX100) 1981 CRANKCASE COVER MX100H - J - K Diagram

COVER, CRANKCASE L

1X0-15411-00-00

Unavailable

COVER, CRANKCASE R

401-15421-00-00

Unavailable

COVER, CRANKCASE R

401-15421-00-00

Unavailable

GASKET 1

3UL-15455-00-00

$22.99

SCREW PAN HEAD

98580-06020-00

$8.49

COVER, CRANKCASE 3

401-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

SCREW PAN HEAD

98580-06040-00

$8.49

SCREW PAN HEAD

98580-06545-00

$5.60

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable

COVER, OIL PUMP

1X0-15416-00-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

Unavailable

CLAMP

90461-10016-00

Unavailable
