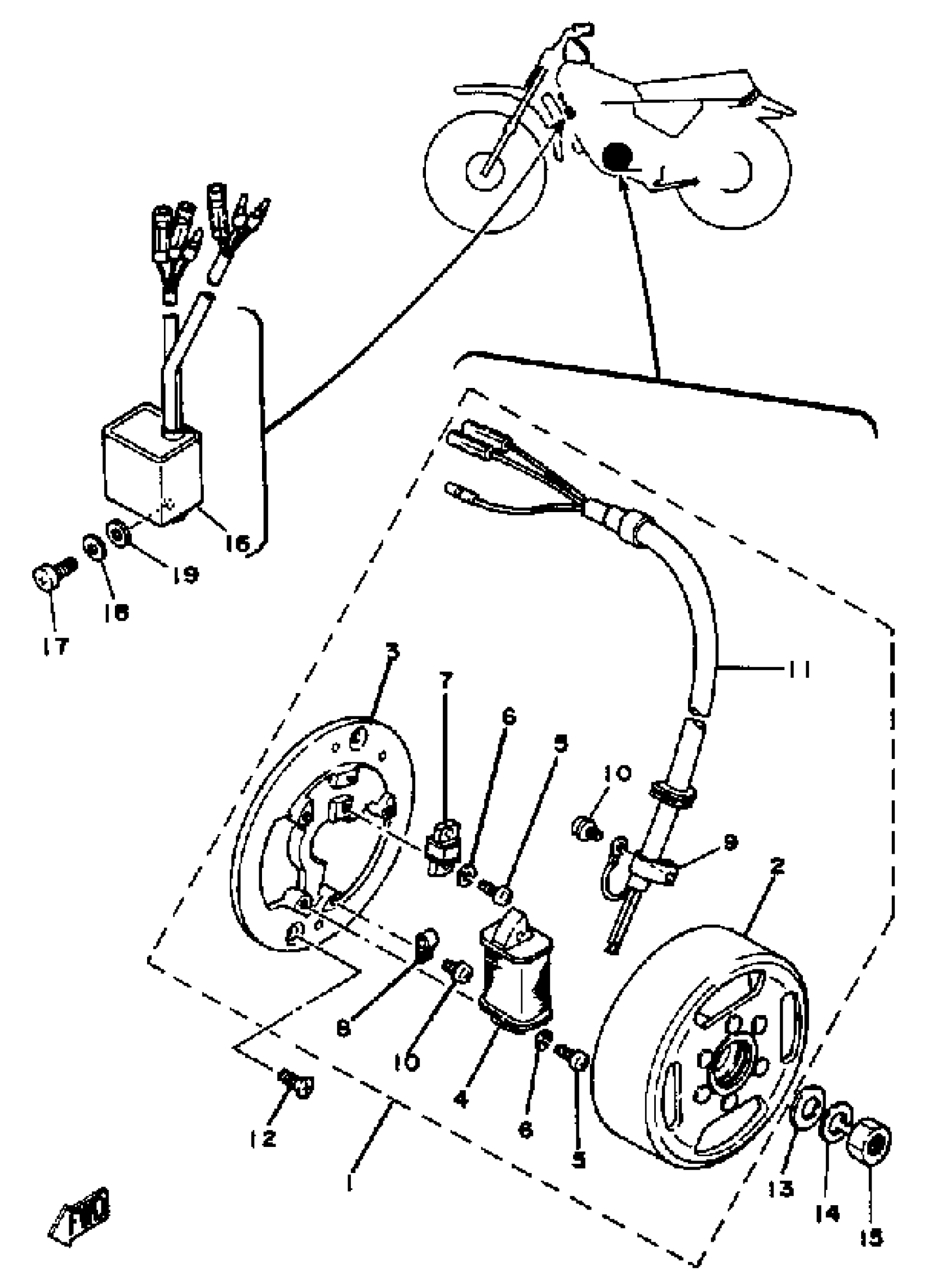

Yamaha MX100H (MX100) 1981 C - D - I - MAGNETO MX100H - J - K Diagram

#

Description
Price

1

C D I MAGNETO ASSEMBLY.

3M2-85500-90-00

Unavailable

2

. ROTOR ASSEMBLY

3M2-85550-20-00

Unavailable

3

. BASE, MAGNETO

3M2-85509-21-00

Unavailable

4

. COIL, SOURCE

3M2-85512-20-00

Unavailable

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

. COIL, PULSER

3M2-85580-20-00

Unavailable

8

CLAMP, LEAD

(445-85528-20-00)

Unavailable

9

CLAMP, LEAD

104-81328-20-00

$6.99

10

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

11

. LEAD WIRE ASSEMBLY

3M2-85515-20-00

Unavailable

12

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

13

WASHER (492)

90201-12535-00

Unavailable

14

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

15

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49

16

C.D.I. UNIT ASSEMBLY

3T0-85540-20-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable
