1980 Yamaha MX100 (MX100G) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

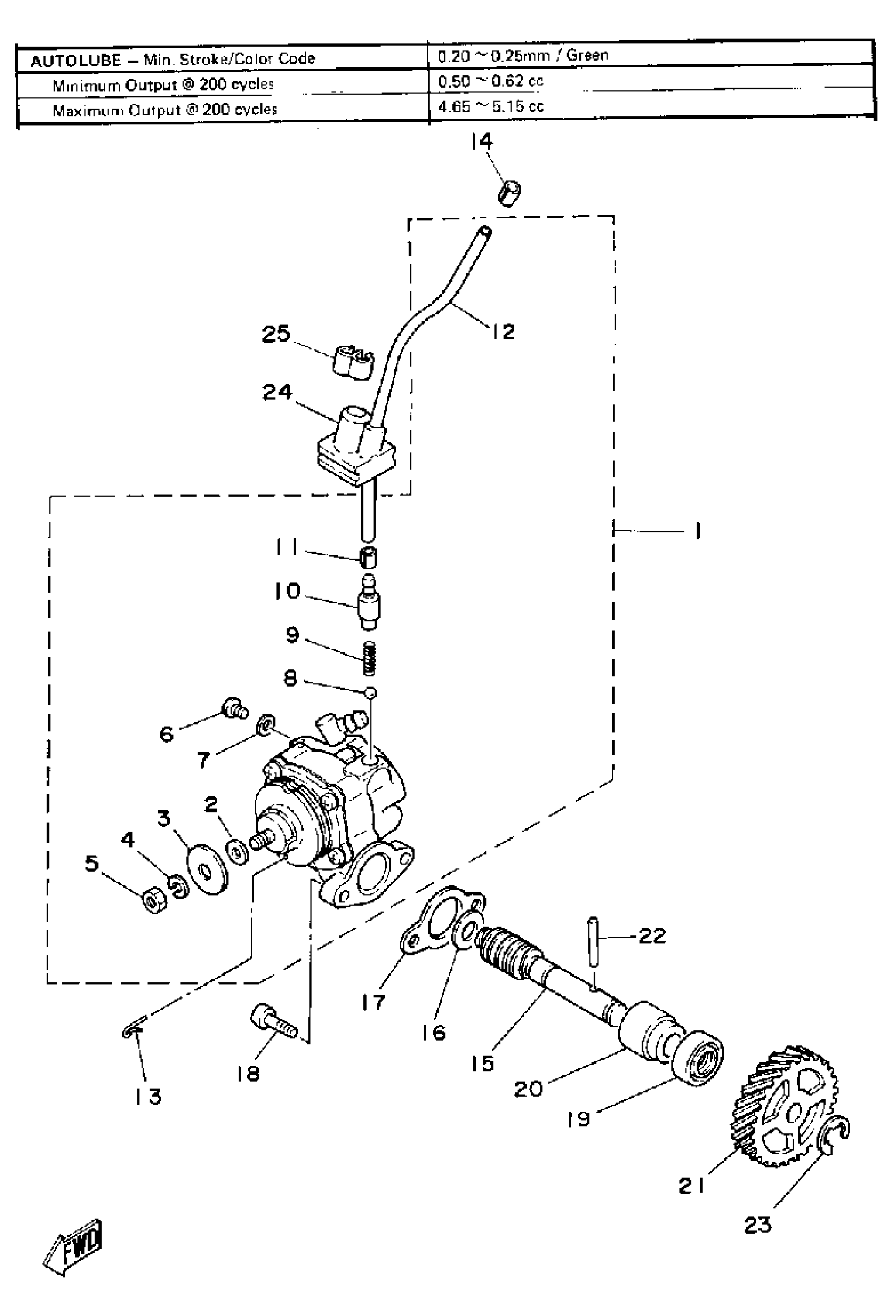

1980 Yamaha MX100 (MX100G) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

3UL-13101-00-00

1
Out of stock

2

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

2

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

2

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

SCREW, BIND

98980-04008-00

1

$3.26

In stock

7

GASKET 137131870000

90430-04004-00

1
Out of stock

8

BALL

93505-32002-00

1

$2.22

In stock

9

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

10

NOZZLE

402-13552-00-00

—

$10.32

In stock

11

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

12

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

13

COVER, ADJUST PULLEY

367-13146-01-00

1

$5.66

In stock

14

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

15

SHAFT, WORM

275-13175-02-00

—

$22.03

In stock

16

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

17

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

18

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

19

OIL SEAL (10X22X7-137)

93101-10002-00

—

$6.68

In stock

20

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

21

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

22

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

23

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

24

HOLDER OIL PIPE

525-13174-01-00

—
Out of stock

25

CLIP (867)

90468-15020-00

—
Out of stock
