1980 Yamaha MX100 (MX100G) Intake Diagram

← All diagrams

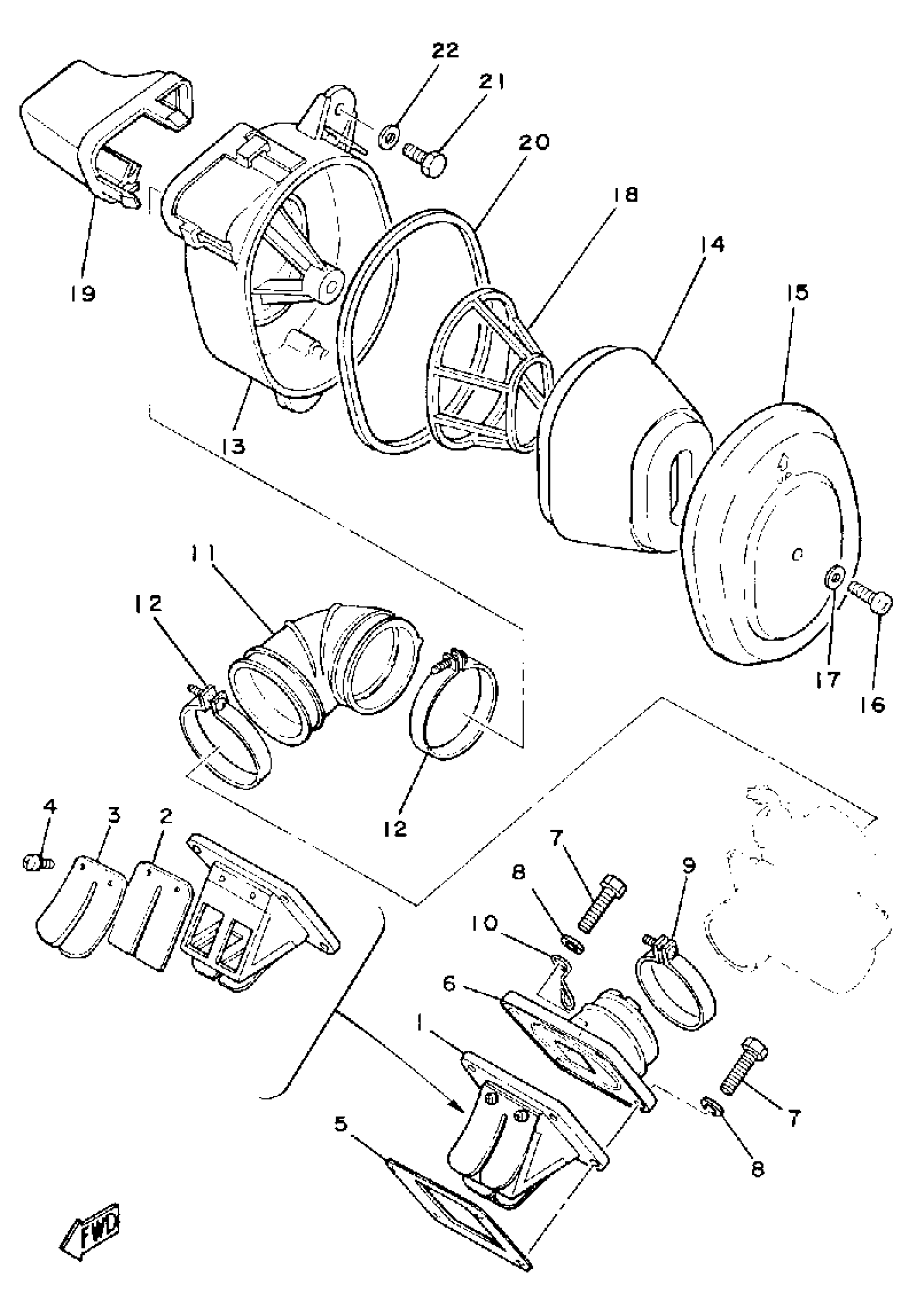

Find the part on the Intake diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX100 (MX100G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

2

REED, VALVE

345-13613-70-00

1

$62.56

In stock

3

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

6

JOINT, CARBURETOR

560-13565-00-00

—

$67.77

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

10

UNAVAILABLE IN PRICE BOOK

90462-20029-00

1
Out of stock

11

JOINT, AIR CLNR 1

1T9-14453-00-00

1
Out of stock

12

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

13

CASE, AIR CLEANER 1

1T9-14411-00-00

1
Out of stock

14

ELEMENT ASY

1T9-14450-01-00

1
Out of stock

15

CAP, CLEANER CASE 1

1T9-14412-00-00

1
Out of stock

16

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

17

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

18

GUIDE

1T9-14458-00-00

1
Out of stock

19

DUCT

1T9-14437-00-00

1
Out of stock

20

SEAL

51Y-14462-00-00

—

$11.61

In stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock
← Fuel Tank Clutch →

More Air & Fuel diagrams
