1979 Yamaha MX100 (MX100F) Transmission Diagram

← All diagrams

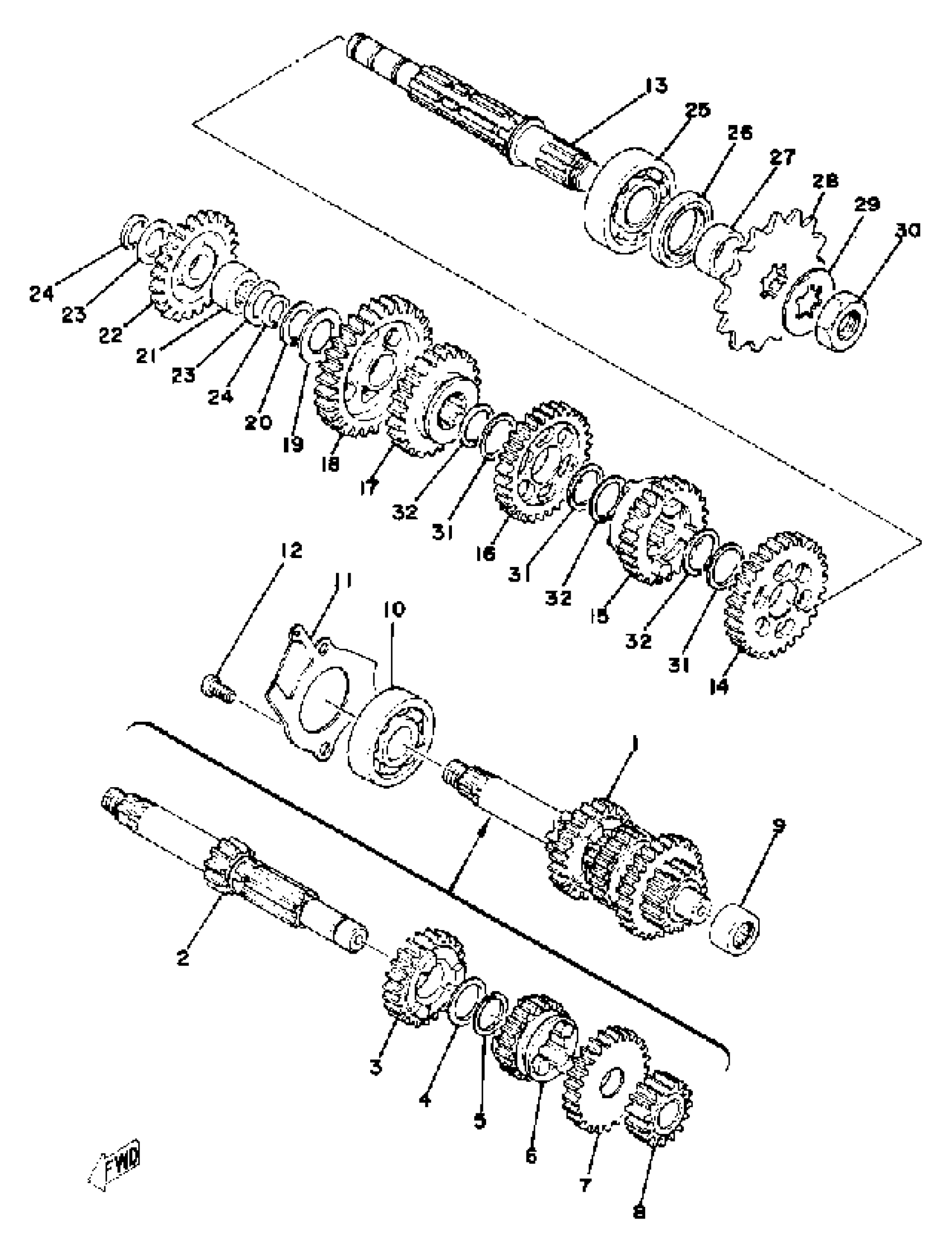

Find the part on the Transmission diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE

(558-17410-00-00)

1
Out of stock

2

. AXLE, MAIN (11T)

558-17411-00-00

1
Out of stock

3

GEAR, 4TH PINION

(437-17141-00-00)

1
Out of stock

4

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

5

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

6

. GEAR, 3RD PINION (19T)

427-17131-00-00

1
Out of stock

7

GEAR, 5TH PINION (25T)

437-17151-00-00

1
Out of stock

8

GEAR, 2ND PINION

437-17121-02-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

11

PLATE, COVER

1G8-17471-00-00

1
Out of stock

12

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

13

AXLE, DRIVE

558-17421-00-00

—

$134.29

In stock

14

GEAR, 2ND WHEEL

427-17221-00-00

1
Out of stock

15

GEAR, 5TH WHEEL (20T)

437-17251-00-00

1
Out of stock

16

GEAR, 3RD WHEEL

427-17231-00-00

—
Out of stock

17

GEAR,4TH WHEEL

4EG-17241-00-00

1
Out of stock

18

. GEAR, 1ST WHEEL

248-17211-00-00

1
Out of stock

19

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock

20

CIRCLIP

93440-15012-00

—
Out of stock

21

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

22

GEAR, KICK IDLE

525-15651-00-00

—

$40.08

In stock

23

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

—

$4.12

In stock

24

CIRCLIP

93440-15012-00

—
Out of stock

25

—

$54.91

In stock

26

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

27

COLLAR (525)

90387-20491-00

—

$13.71

In stock

28

—

$13.78

In stock

28

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

28

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

29

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

30

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

31

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

32

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock
