1979 Yamaha MX100 (MX100F) Clutch Diagram

← All diagrams

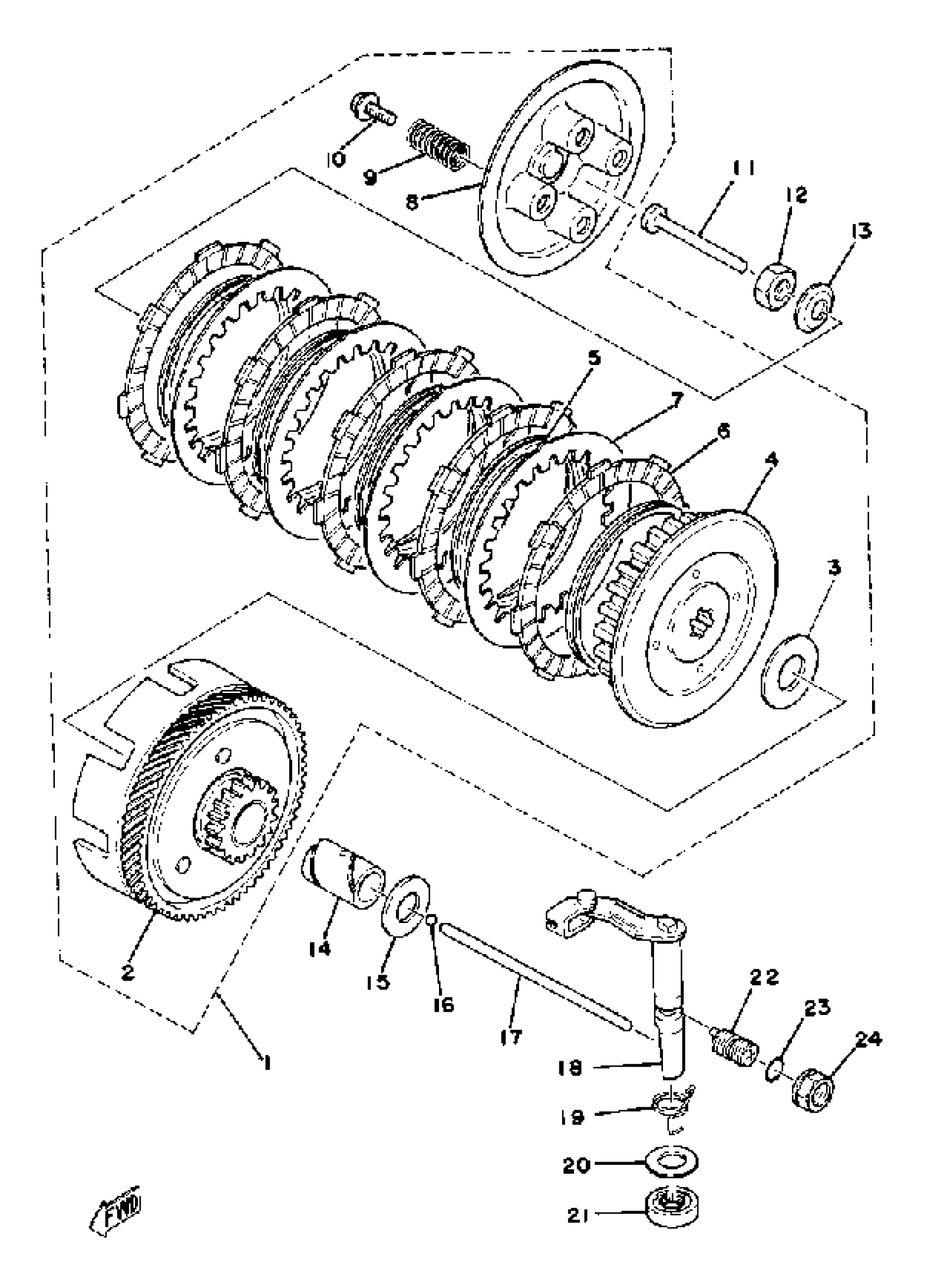

Find the part on the Clutch diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(1V1-16301-10-00)

1
Out of stock

2

. PRIMARY DRIVEN GEAR COMP (74T)

1V1-16150-10-00

1
Out of stock

3

PLATE, THRUST

131-16154-00-00

—

$7.15

In stock

4

BOSS, CLUTCH

1V1-16371-02-00

—

$104.49

In stock

5

RING, CUSHION

1V1-16367-01-00

1
Out of stock

6

PLATE, FRICTION

598-16321-01-00

1

$15.04

In stock

7

PLATE, CLUTCH 1

1V1-16324-10-00

1

$17.26

In stock

8

PLATE, PRESSURE

598-16351-00-00

—

$38.60

In stock

9

1

$6.17

In stock

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

1
Out of stock

11

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

12

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

14

SPACER (525)

90560-17147-00

—

$25.35

In stock

15

WASHER, PLATE (1N1)

90201-17558-00

1

$7.69

In stock

16

BALL

93503-16003-00

—

$2.14

In stock

17

ROD, PUSH 2

1X0-16357-00-00

1
Out of stock

18

PUSH LEVER ASSEMBLY

525-16380-00-00

1
Out of stock

19

SPRING, TORSION

90508-14132-00

1
Out of stock

20

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

21

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

22

SCREW

90149-12097-00

1
Out of stock

23

O-RING (611)

93210-10096-00

—

$3.11

In stock

24

NUT

90179-12197-00

1
Out of stock
